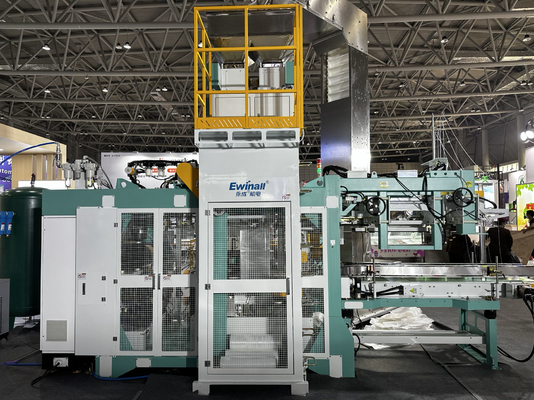

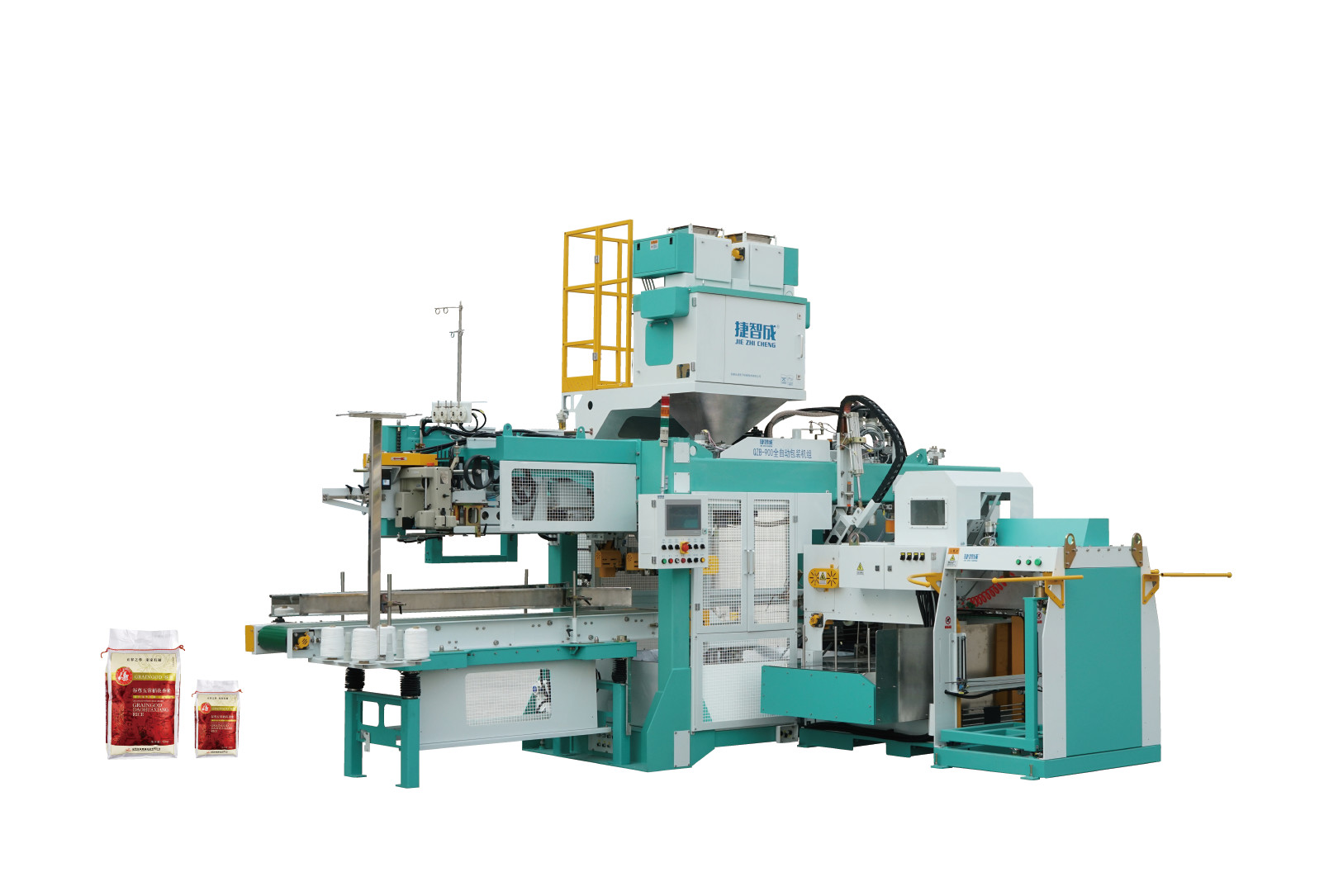

Fully Automatic Packaging Machine 5-25KG For Rice、 Beans、Sugar And So On, Laminated Woven Bag

Fully Automatic Packaging Machine 5-25KG For Rice、 Beans、Sugar And So On, Laminated Woven Bag

  • Fully Automatic Packaging Machine 5-25KG For Rice、 Beans、Sugar And So On, Laminated Woven Bag
  • Fully Automatic Packaging Machine 5-25KG For Rice、 Beans、Sugar And So On, Laminated Woven Bag
Fully Automatic Packaging Machine 5-25KG For Rice、 Beans、Sugar And So On, Laminated Woven Bag
Product Details:
Place of Origin: Anhui, China
Brand Name: Ewinall
Certification: ISO9001:2008,CE,CCPIT,QMS
Model Number: QZB-900N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed into two wooden boxes
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1 set per week
Contact Now
Detailed Product Description
Power: 380V,50HZ Operate: Touch Screen Operate
Motor: Servo Motor Load Cell: METLLER TOLEDO Load Ecll
Weighing Range: 5-25KG Driven: Electric And Air

Fully Automatic Packaging Machine, 5-25KG, Double Bag Warehouse, For Rice, Beans, Sesame, Plastic Particles, Etc.

Automatic packaging of granules in industries such as grains, seeds, rice, sugar, etc.



Main Technical Parameters of Packaging Machine Unit:

    1. Packaging Material Parameters:
      • Material: Granular materials such as rice.
      • Material Form: Granular.
      • Material Moisture Content: Rice should comply with the requirements in GB1354-2009. For indica rice and indica glutinous rice, the moisture content should be ≤14.5%, and for japonica rice and japonica glutinous rice, it should be ≤15.5%.
      • Sewing Machine Thread: 3×3 high-strength polyester or polyester filament thread.
    2. Packaging Material Parameters:
      • Model: QZB-900N (Remarks: Please refer to the diagram for packaging bag size requirements.)
      • Filling Method: 1 filling per bag.
      • Bag Material: a. M-side laminated woven bag. b. Flat woven bag with double-sided lamination. c. Woven bag with hard handle and double-sided lamination.
      • Filling Weight per Bag (kg): 5-25.
      • Bag Mouth Closure Method: Sewing machine, folding.
      • Remarks:
        1. The bag material is a woven bag with double-sided lamination, and the bag has a cold-cut opening.
        2. Sewing machine thread: 3×3 high-strength polyester or polyester filament thread.
        3. Woven bag packaging requirements: flat, no wrinkles or folds. For woven bags with handles, the handle position should meet the following specifications: the distance from the bottom opening line of the handle to the bag mouth should be between 43mm and 45mm, the width of the handle should be 70mm±2mm, and the length of the handle should be 17mm±1mm. Please refer to the diagram. The woven bags should have a cold-cut opening and double-sided lamination.
  1. Key Technical Performance of Packaging Machine Unit:

    • Woven Bag Packaging Capacity:
      • Packaging Weight: Packaging Speed
        • 5kg: (800-900) bags/hour
        • 10kg: (780-840) bags/hour
        • 15kg: (600-660) bags/hour
        • 25kg: (500-600) bags/hour
    • Air Source Pressure: (0.5-0.7) MPa
    • Total Air Consumption: 600 (L/min)
    • Total Power Consumption: AC380V±10%, 50Hz, three-phase five-wire system, 9kw
    • Ambient Temperature: (0-40)°C
    • Ambient Humidity: Not exceeding 90%RH at 40°C, higher humidity is allowed at lower temperatures.
    • Grounding Type: TN-S

II. Features:

  1. Fully automatic packaging machine unit that combines regular woven bag packaging with folded woven bags.
  2. After manually placing the bags, the equipment can automatically complete the filling and sealing process, making the operation convenient and simple. The equipment has an automatic adjustment function and can store system parameters. When switching between different product types, simply select the desired type on the touchscreen, and the equipment will automatically adjust to the corresponding parameters, enabling automatic production changeovers.
  3. It adopts a touchscreen and PLC programmable centralized control system, with servo control for transmission, ensuring high automation. It can quickly change specifications and automatically switch to different product packaging requirements to meet flexible production needs.
  4. The bag supplying unit has a horizontal bag warehouse and a vertical bag warehouse, suitable for supplying flat woven bags and woven bags with handles (bottom sewn with folded
