| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | QZB-900N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per week |
| Power: | Any Country Power | Operate: | Touch Screen Operate |
|---|---|---|---|
| Load Cell: | METLLER TOLEDO Load Ecll | Weighing Range: | 5-25KG |
| Driven: | Electric And Air | Motor: | Servo Motor |
| High Light: | Fully Automatic Packaging Machine 5KG,Double Bag Automated Packaging Lines,Automated Packaging Lines 25KG |
||

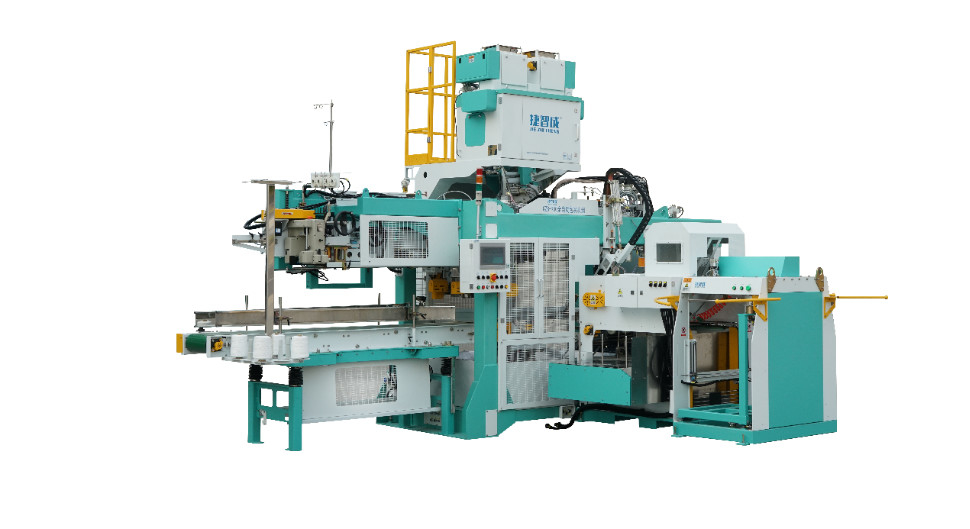

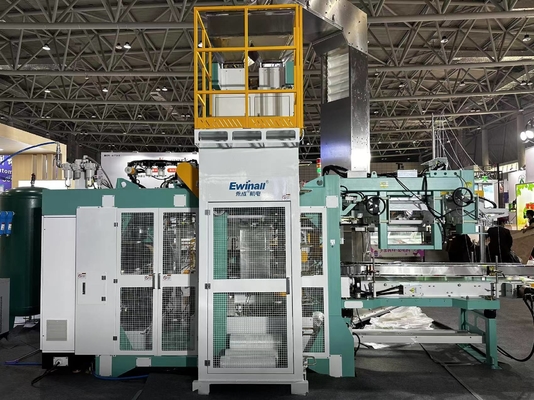

Automated Packaging Lines Double Bag Warehouse Fully Automatic Packaging Machine 5-25KG For Rice Beans
Automatic packaging of granules in industries such as grains, seeds, rice, sugar, etc.
FEATURES
1. Fully automatic packaging unit, which is equipped with ordinary woven bag packaging and woven bag folding.
2. After the equipment puts the bag manually, it can automatically complete the filling and sealing process, which is convenient and simple to operate. The equipment has the function of automatic adjustment in place to realize the storage of system parameter recipes. When switching between different product phases, just click on the product phase to be produced on the touch screen, and the equipment will automatically adjust to the corresponding parameters, and the customer can automatically change production.
3. It adopts touch screen and PLC programmable centralized control system, and the transmission uses servo control, which has a high degree of automation. The specifications are changed quickly, and the product packaging specifications can be automatically and quickly changed to meet the needs of flexible production.
4. The combined bag feeding machine has a horizontal bag storage and a vertical bag storage, which is suitable for automatic bag feeding of flat woven bags and hand-clasped woven bags (bottom seam and bottom hem). Double-station bag feeding mechanism, no need to stop the machine for continuous bag feeding.
5. The equipment has a fault self-test prompt function, and the fault can be quickly eliminated according to the fault prompt. Maintenance is simple and convenient.
6. The equipment adopts a closed structure design and has a safety interlocking device.
7. The quantitative packaging scale adopts a separate cylinder to drive feeding, and a three-sensor weighing structure.
8. The weighing components are all in a closed working room to reduce corrosion and wear of components.
TECHNICAL PARAMETERS
| Model | QZB-900N |
| Filling Form | 1 time/1bag filling |
|
Bag Material |
a. M side woven bag (double-sided lamination) b. Flat woven bag (double-sided lamination) c. Buckle hand woven bag (double-sided lamination) |
| Packing Range | 5kg-25kg |
| Bag Closed Form | Sewing machine |
| Packing Speed | ≤ 900 bags/h |
| Weighing Error | ±0.2%F.S |
| Feeding Form | Gravity feed |
| Structural Features | Cylinder, servo type, three-sensor support |
| Suitable Material | Good flowability granular material |
| Air Pressure | 367L/min |
| Power/Power Consumption |
AC380V±10% 50Hz Three phase five wire system 9Kw(woven bags) |
| Dimension(mm) | 5237×3875×3440 |
| Remark | Tested with rice |
