| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | QZB-600M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Delivery Time: | 40 days |
| Supply Ability: | 1 set per week |
| Warranty: | 12months | Driven Type: | Electric And Air |
|---|---|---|---|
| Materials: | Particles | Product Name: | Automatic Packing Lines |
| High Light: | 50KG Fully Automatic Packaging Lines,25KG Fully Automatic Packaging Lines,Miscellaneous Grains Automated Packaging Lines |
||

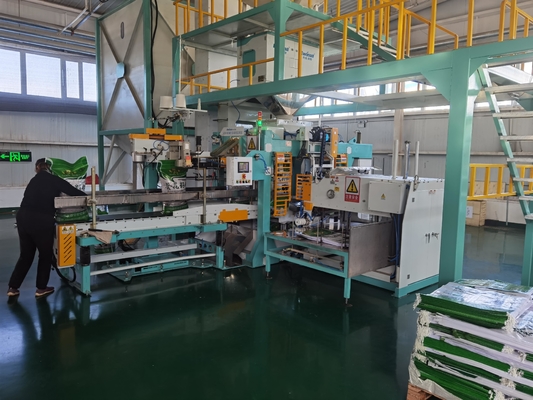

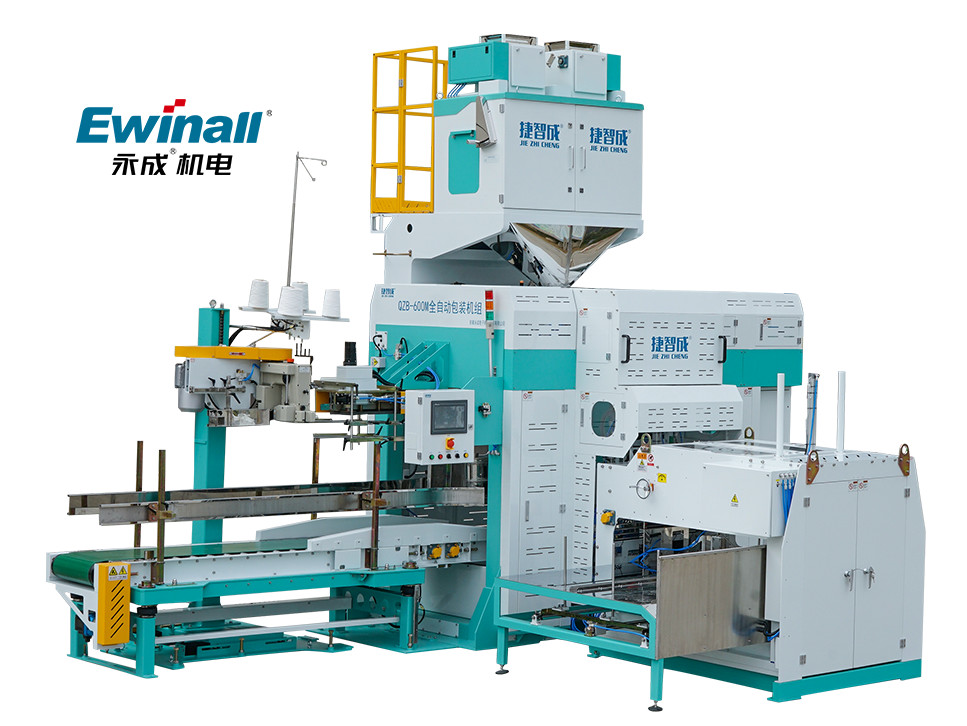

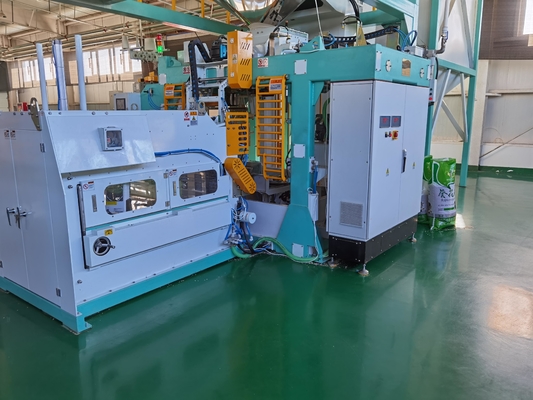

Fully Automatic Packaging, 25-50KG, Suitable For Miscellaneous Grains, Seeds, Sugar, Beans, Etc.
SUITABLE EXTENT
Automatic packaging of pellets for miscellaneous grains, seeds, rice, sugar and other industries.
INSTRUCTIONS
Packing speed specific conditions are tested with rice as the packing material.
FEATURES
1. After the equipment manually places the packaging bag, it can automatically complete the filling and sealing process, which is convenient and
simple to operate. 2. It adopts touch screen and PLC programmable control system, and the man-machine interface display is clearer and easier to operate.
3. The equipment adopts a closed structure and has a safety interlocking device.
4. Unique woven bag patented bag opening technology, stable and reliable bag opening (an automatic filling line uses imitation
Raw bag opening device, ZL2014 8 0011507.5).
5. The transmission mechanism adopts the way of servo motor and gear transmission to ensure the flexibility and smoothness of each action.
Accurate and fast.
6. Heavy-duty automatic lifting conveyor, wide range of lifting height, precise and stable lifting, high load capacity
powerful.
7. The weighing system adopts three sensors, and the scientific and reasonable layout makes the weighing bucket bear reasonable force.
TECHNICAL PARAMETERS
|
model |
QZB-600M |
|
Filling method |
1 time/1 bag filling |
|
bag material |
Non-coated woven bag, double-sided coated woven bag |
|
Packaging range |
25-50KG |
|
pocket closure |
sewing machine |
|
packing speed |
(500~600) packs/hour |
|
Weighing error |
±0.2%F.S |
|
Feed form |
Gravity feeding |
|
Structural features |
Cylinder, servo type, three sensor support, |
|
good fluidity of pellets |
Suitable material |
|
Air pressure |
(0.5-0.7)MPa |
|
Air consumption |
117L/min |
|
power supply, power consumption |
AC380V±10% 50Hz |
|
Grounding form |
TN-S |
|
ambient temperature |
0°C--40°C |
|
environment humidity |
No more than 90%RH at 40°C, greater humidity is allowed at low temperatures |
| Dimensions (mm) |
