| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | QZB-900M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per week |
| Power: | 380V,50HZ | Driven: | Electric And Air |
|---|---|---|---|
| Operate: | Touch Screen Operate | Motor: | Servo Motor |
| Load Cell: | METLLER TOLEDO Load Ecll | Weighing Range: | 5-25KG |
| High Light: | Fully Automatic Packaging Machine 25KG,5KG Fully Automatic Packaging Machine,Warehouse Fully Automatic Packing Machine |
||

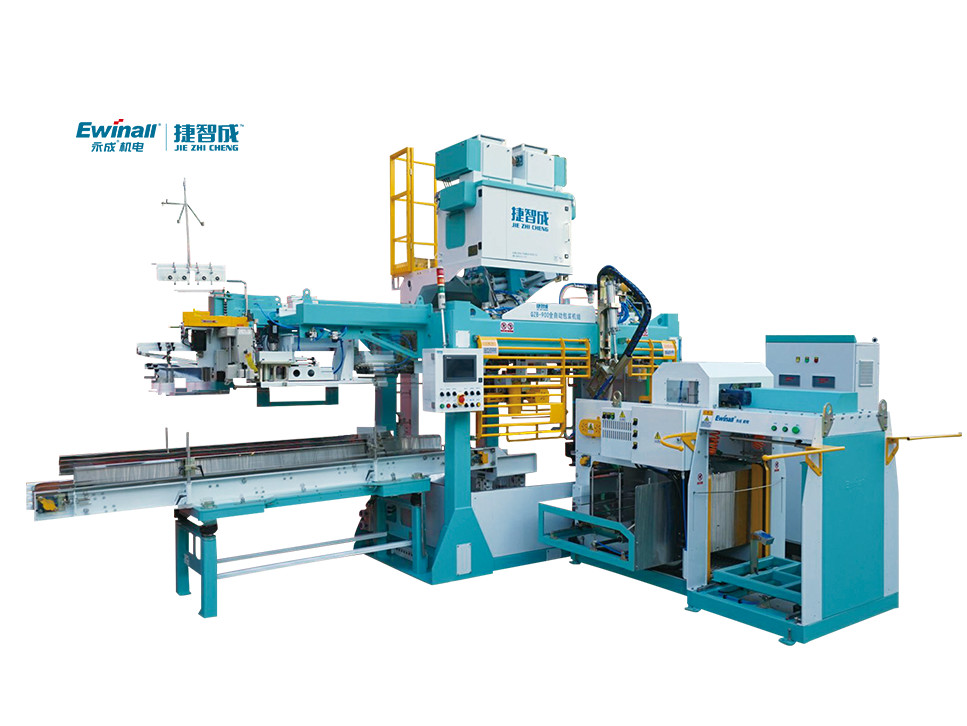

Fully Automatic Packaging Machine, 5-25KG, Double Bag Warehouse, For Rice, Beans, Sesame, Plastic Particles, Etc.
APPLICATION
Automatic packaging of granules in industries such as grains, seeds, rice, sugar, etc.
FEATURES
1. Laminated woven bag packaging and folding,Plastic Bag packaging
2, Automatic adjusting with different packaging
3, Touch screen,PLC,Servo system
4, suitable for flat bags and PE buckle hand bags
5, Fault self-check function
6, safety interlock device.
7, three-sensor weighing structure
8, Enclosed structure design
TECHNICAL PARAMETERS
| Model | QZB-900-B | QZB-900M |
| Filling Form | 1 time/1bag filling | |
|
Bag Material
|
a.M side woven bag (double-sided lamination) b. Flat woven bag (double-sided lamination) c. Portable PE bag
|
a. M side woven bag (double-sided lamination) b. Flat woven bag (double-sided lamination) c. Buckle hand woven bag (double-sided lamination)
|
|
Packing Range
|
2.5kg-25kg | 5kg-25kg |
| Bag Closed Form | a. Sewing machine b. Sewing machine c. Heat sealing |
Sewing machine
|
|
Packing Speed
|
≤ 900 bags/h
|
|
| Weighing Error | ±0.2%F.S | |
| Feeding Form | Gravity feed | |
| Structural Features | Cylinder, servo type, three-sensor support | |
| Suitable Material | Good flowability pellets | Good flowability granular material |
| Air Pressure | 0.5 ~0.7 Mpa | |
| Air Consumption | 367L/min | |
| Power/Power Consumption |
AC380V±10% 50Hz Three phase five wire system 9Kw(woven bags)/12Kw(vacuum packing)
|
|
|
Dimension(mm) L*W*H
|
5256×3894×3440
|
5237×3875×3440
|
