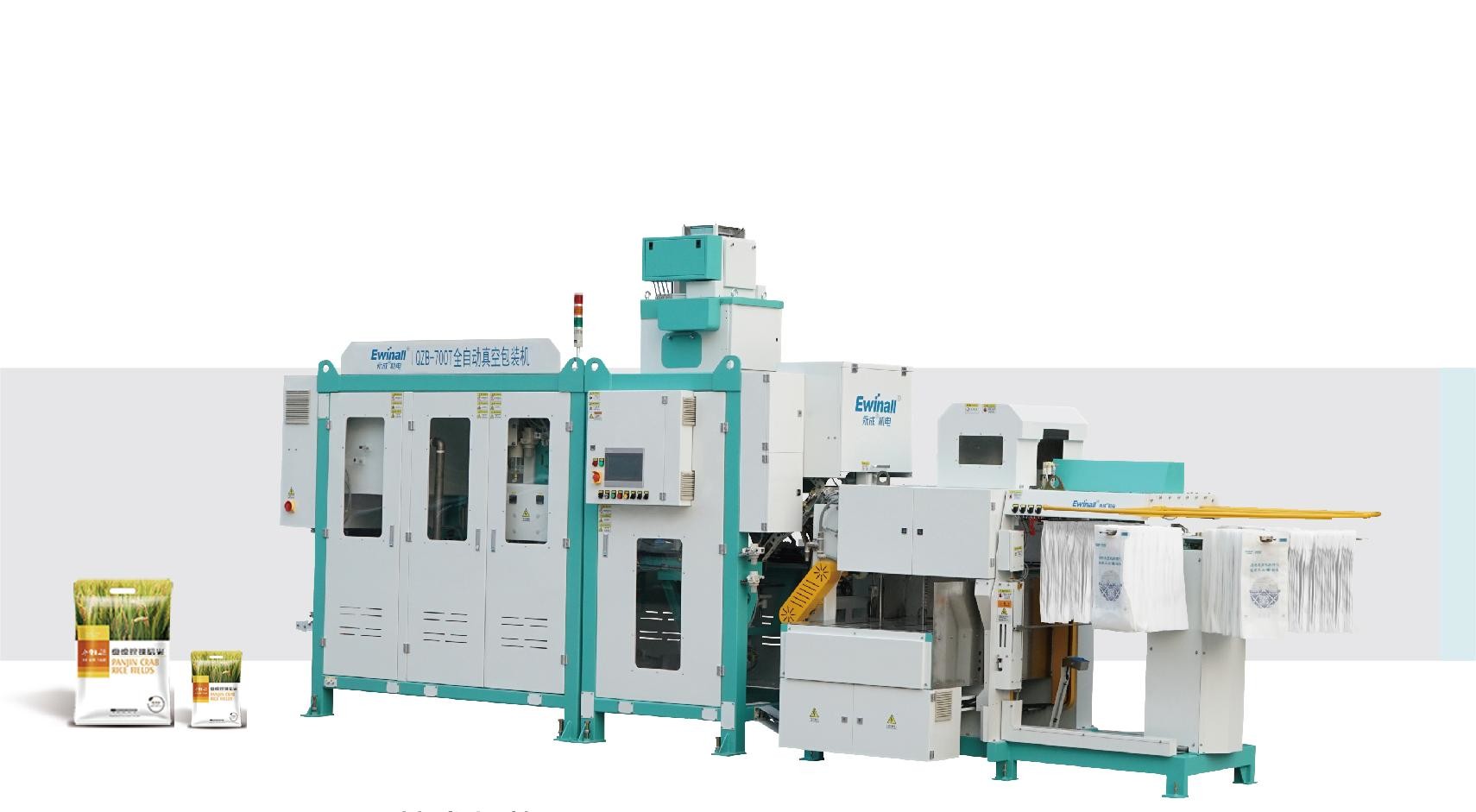

Rice Vacuum Packing Machine,Fully Automatic，QZB- 700T Packaging Unit Product，Two-Side Vacuum , Once Sealed

QZB- 700T packaging unit product description

1. Related instructions on packaging and packaging materials

Material name: automatic double-sided vacuum and air-filled packaging for rice, miscellaneous grains, food and other industries.

Material form: granular

Moisture content of materials: Rice should meet the requirements in GB1354-2009, indica rice and indica glutinous rice ≤14.5%, japonica rice and japonica glutinous rice ≤15.5%.

Packaging material parameters:

Remark:

1. The bag material is plastic bag.

2. Requirements for plastic packaging bags: Lay flat in the carton, no ropes are allowed, no bending or discounting is allowed, static electricity is not allowed in plastic packaging bags, and sticking chains are not allowed in plastic bags. Irregular positions and shapes are not allowed for plastic packaging clasps.

2. the main technical performance of the packaging unit

Main packaging capacity (test data with rice as packaging material without pause during normal operation of the equipment):

Air source pressure: (0.5 ~ 0.7) MPa.

Air consumption: vacuum work air consumption 975 (L/min) .

Power consumption: AC380V±10%, 50Hz, three-phase five-wire system, grounding form: TN-S.

Working 8 kW in plastic vacuum pack.

Ambient temperature: (0 ~ 40) ℃.

Ambient humidity: no more than 90%RH at 40°C, greater humidity is allowed at low temperatures.

3. Features

1. The packaging machine is a fully automatic packaging unit that integrates double-sided vacuum and plastic bag packaging.

2. After the equipment puts the bag manually, it can automatically complete the filling and sealing process, which is convenient and simple to operate.

3. It adopts touch screen and PLC programmable centralized control system, and the transmission uses servo control, which has a high degree of automation.

4. The combined bag feeding machine is suitable for automatic bag feeding of PE bags and PE buckle bags.

5. The equipment has a fault self-test prompt function, and the fault can be quickly eliminated according to the fault prompt.

6. The equipment adopts a closed structure design and has a safety interlocking device.

7. The quantitative packaging scale adopts a separate cylinder to drive feeding, and a three-sensor weighing structure.

8. The weighing components are all in a closed working room to reduce corrosion and wear of components.

9. One-button production change: When switching packaging specifications, just touch the screen to click on the corresponding specification, and the equipment will automatically adjust to the corresponding position, and the equipment parameters will also be automatically changed to the corresponding parameters, truly realizing packaging automation.

4. the main configuration list
