| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO,CE,QMS |
| Model Number: | DCS-ZKBY-B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Packaging Range: | 0.25-5kg | Material: | Grain |
|---|---|---|---|
| Driven Type: | Electric And Air | Voltage: | 380V,50HZ |
| Dimension(L*W*H): | 1535*1810*2213mm | After-sales Service Provided: | Online Support, Video Technical Support |
| Warranty: | 1 Year | Port: | Any Main Port |
| High Light: | 2500w Rice Vacuum Packing Machine,Tow Sides 5kg rice packing machine,5kg packing machine Six Sides |
||

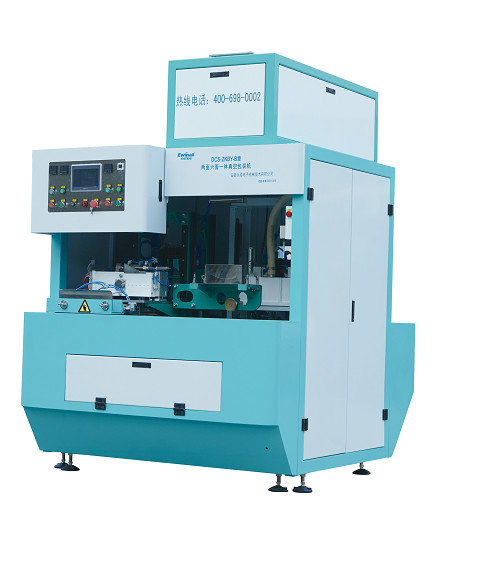

Tow Sides And Six Sides Vacuum And Shaping Packing Machine
DCS-ZKBY-B model vacuum packing machine
TECHNICAL:
| DCS-ZKBY-B TWO SIZES AND SIX SIZES VACUUM SHAPING PACKING MACHINE | |
| MODEL | DCS-ZKBY-B |
| WEIGHING RANGE(kg) | 0.25-5 |
| ACCURANCY | 0.2%F.S |
| SSPEED(bag/h) |
300 bags(six sizes)/hour 240 bags(two sizes)/hour |
| DIVISION(g) | 2-5g |
| POWER | AC380V±5% 50Hz |
| CONSUMPTION | 2.5KW 0.6Mpa AIR 3 m3/h |
| VACUUM | -0.7Mp~0.0Mp(ADJUSTABLE) |
| DIMENSION(mm) | 1420×1460×2240 |
Features:
1. High-performance weighing controller, unique three-stage feeding mechanism, slowly adopting vibration feeding, adapting to various materials, and high packaging precision.
2. It adopts high-precision alloy steel sensor and Taiwan Yadeke pneumatic components, with high packaging precision, fast weighing speed and high reliability.
3. The advanced two-sided and six-sided plastic integrated design realizes automatic packaging, metering, shaping, vacuum, sealing and conveying. It can be used for two-sided and six-sided vacuum packaging at the same time, and the equipment is cost-effective.
4, small size, two sides and six sides of the package can be carried out at the same time, double operation, simple operation, high work efficiency, the output reaches 300 bags / hour.
5. Unique six-face shaping device and two-sided pressure shaping device, good shaping effect, low noise, direct vacuum sealing, high vacuum success rate and good sealing effect.
6, using high-definition display touch screen, Siemens programmable controller, intelligent weighing instrument.
COMPENTS:
| NAME | MODEL | QUANTITY | Units | NOTE |
| Weighing controller | YJ8848 | 1 | set | EWINALL |
| PLC | S7-200SMART | 1 | set | SIEMENS |
| TOUCH SCREEN | PW5610T-S | 1 | piece | HITEC |
| Proximity switch | TL-Q5MB1 | 7 | piece | OMRON JAPAN |
| Pocket switch | HL-5300 | 2 | piece | OMRON JAPAN |
| Switching power supply | S-100-24 | 1 | piece | TAI WAN MEAN WELL |
| Temperature Controller | AL-208 | 1 | piece | YUDIAN |
| Terminals | 1 | set | GERMANY Phoenix_Pharmahandel | |
| Load cell | H6E3-C3 | 1 | set | AVIC ZEMIC |
| BUTTON | 1 | set | GERMANY schneider | |
| PUMB | DX-25 | 1 | set | SHANGHAI |
| Digital vacuum gauge | KITA | 1 | set | TAIWAN JINGDENG |
| Pneumatic Components | SC,4V210 | 1 | set | TAIWAN AIRTAC |
