| Place of Origin: | Anhui, China |
| Brand Name: | EWINALL |
| Certification: | ISO,QMS,CE |
| Model Number: | DCS-ZKBC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Application: | Food, Beverage, Commodity, MEDICAL, Chemical, Machinery & Hardware, APPAREL, Textiles, Automatic Picking And Placing | Automatic Grade: | Automatic, Automatic |
|---|---|---|---|
| Driven Type: | Electric And Air | Voltage: | 200V |
| Dimension(L*W*H): | 1500×1800×2100mm | Weight: | 1000KG |
| After-sales Service Provided: | Online Support, Engineers Available To Service | Warranty: | 1 Year |
| Shape: | Pillow | ||
| High Light: | 200V rice vacuum packaging machine,rice vacuum packaging machine Pillow Shaped,3kw auto vacuum packing machine |
||
Two Sides Pillow Shape Vacuum Shaping Packing Machine

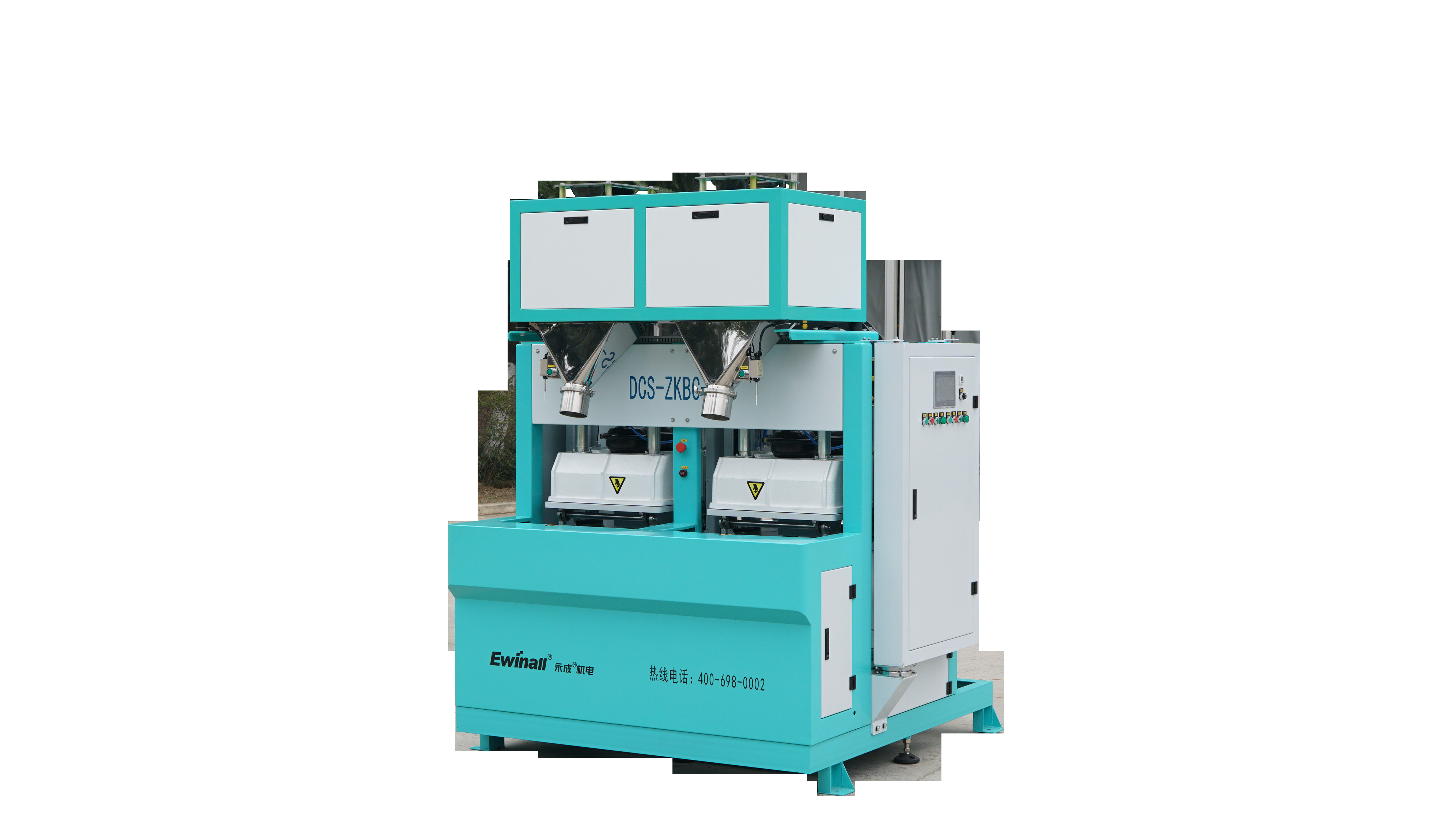

DCS-ZKBC vacuum packing machine
1 Features
① Advanced mechatronics design, automatic quantitative packaging, automatic completion of clamping, vacuum, shaping, sealing and package delivery processes.
② High-performance weighing controller and unique three-level feeding mechanism make fast quantitative packing and high accuracy.
③ After quantitative packaging, vacuum treatment is directly performed to save operation links and improve work efficiency.
④ Good vacuum shaping effect, simple operation and reliable operation.
2 Parameter
| MODEL | DCS-ZKBC |
| WEIGHING RANGE(kg) | 0.5-5 |
| WEIGHING ERROR | 0.2%F.S |
| PACKING SPEED(bag/h) | 400 |
| PREVISION(g) | 2g |
| VOLTAGE | 380V |
| POWER(kw) | 3(NOT INCLUDE COMPRESSOR) |
| CONSUMPTION | 0.68m3/min |
| VACUUM | -0.08-0(ADJUSTABLE) |
| ADVANTAGE | WEIGHING AND VACUUM TOGETHER |
|
DIMENSION(mm) L×W×H |
1500×1800×2100 |
3 Components
| Main parts | NAME | MODEL | MANUFACTURE(ORIGION) |
| WEIGHING CONTROLLER | YJ8848 | EWINALL | |
| LOAD CELL(Material: alloy steel) | ILG-50 | keli | |
| PLC | LOGO | SIEMENS | |
| Terminals | Phoenix | ||
| Proximity switch | TL-Q5MB1 | OMRON JAPAN | |
| CLAMP SWITITCH | HL-5300 | OMRON JAPAN | |
| POWER SWITITCH | S-100-24 | MEANWELL TAIWAN | |
| TEMPERATURE CONTROLLER | AL-208 | YUDIAN | |
| Vacuum pump | XD-25 | SHANGHAI | |
| AIR PARTS | CYLINDER,SOLENOID VALVE | AIRTAC | |
| VIBERATE MOTOR | PTL120 | XINJIAHONG |
