| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO,CE,QMS,CCPIT |
| Model Number: | DCS-ZKBY-B10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4 sets per day |
| Packaging Range: | 0.25-10kg | Material: | Different Kinds Of Grain |
|---|---|---|---|
| Driven Type: | Electric And Air | Voltage: | 380V,50HZ |
| Warranty: | 1 Year | Port: | Any Main Port |
| Shape: | Brick And Pillow | Maxxium Weight: | 10kg |
| Minnium Weight: | 500g | Color: | Custom Request Avaliable |
| High Light: | 500g pillow bag packaging machine,4m3/h Rice Vacuum Packing Machine,Multifunction vacuum brick packaging |
||

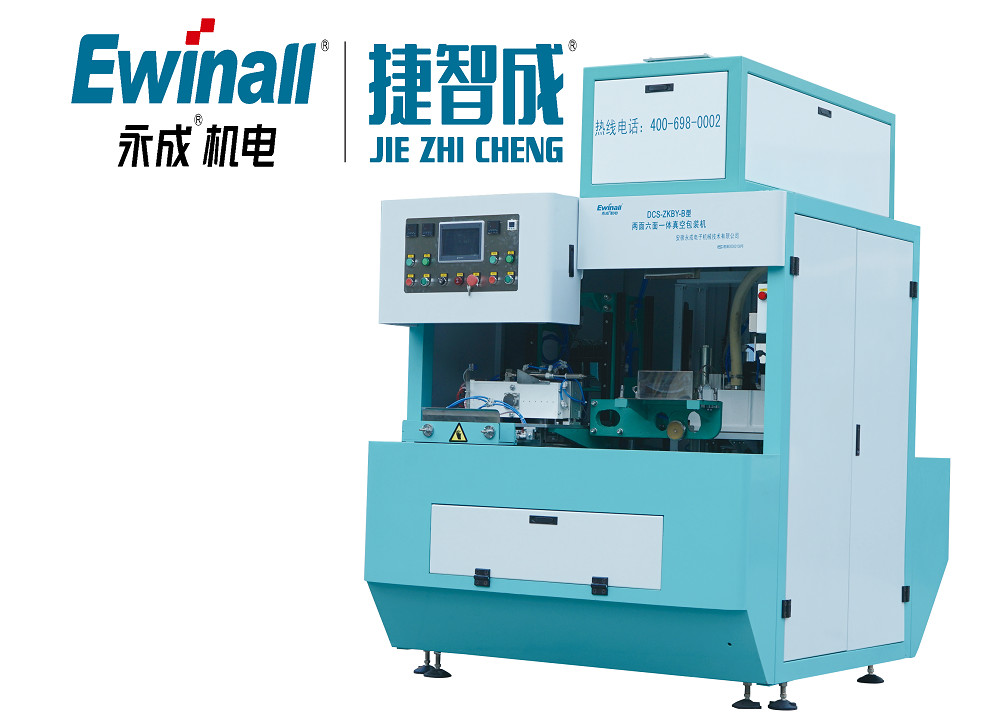

Multifunction vacuum and shaping packing machine
DCS-ZKBY-B model vacuum packing machine
Features:
1. High-performance weighing controller, unique three-stage feeding mechanism, slowly adopting vibration feeding, adapting to various materials, and high packaging precision.
2. It adopts high-precision alloy steel sensor and Taiwan Yadeke pneumatic components, with high packaging precision, fast weighing speed and high reliability.
3. The advanced two-sided and six-sided plastic integrated design realizes automatic packaging, metering, shaping, vacuum, sealing and conveying. It can be used for two-sided and six-sided vacuum packaging at the same time, and the equipment is cost-effective.
4, small size, two sides and six sides of the package can be carried out at the same time, double operation, simple operation, high work efficiency, the output reaches 300 bags / hour.
5. Unique six-face shaping device and two-sided pressure shaping device, good shaping effect, low noise, direct vacuum sealing, high vacuum success rate and good sealing effect.
6, using high-definition display touch screen, Siemens programmable controller, intelligent weighing instrument.
TECHNICAL:
| DCS-ZKBY-B TWO SIZES AND SIX SIZES VACUUM SHAPING PACKING MACHINE | |
| MODEL | DCS-ZKBY-B10 |
| WEIGHING RANGE(kg) | 0.5-10kg |
| ACCURANCY | 0.2%F.S |
| SSPEED(bag/h) |
300 bags(six sizes)/小时 240 bags(two sizes)/小时 |
| DIVISION(g) | 2-5g |
| POWER | AC380V±5% 50Hz |
| CONSUMPTION | 3.5KW 0.6Mpa AIR 4 m3/h |
| VACUUM | -0.7Mp~0.0Mp(ADJUSTABLE) |
| DIMENSION(mm) | 1535×1810×2213 |
