Rice Seeds Feed Quantitative Packaging Machine Touch Screen

Rice Seeds Feed Quantitative Packaging Machine Touch Screen

  • Rice Seeds Feed Quantitative Packaging Machine Touch Screen
Rice Seeds Feed Quantitative Packaging Machine Touch Screen
Product Details:
Place of Origin: Anhui, China
Brand Name: Ewinall
Certification: ISO9001:2008,CE,CCPIT,QMS
Model Number: DCS-50FE2-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed into two wooden boxes
Delivery Time: 20 days
Supply Ability: 5 sets per day
Contact Now
Detailed Product Description
Weighing Range: 10kg-50kg Operate: Touch Screen Operate
Load Cell: METLLER TOLEDO Load Ecll Conveyor: Auto Lifting
Installation: Easy Connection Driven: Electric And Air
Power: 380V,50HZ
High Light:

Touch Screen Quantitative Packaging Machine


Auto Lifting Quantitative Packaging Machine


Easy connection Quantitative Packaging Machine

Rice, Seeds, Feed, Chemical Raw Materials, Sugar, Peanuts, Etc.Quantitative Packaging Machine.Touch Screen

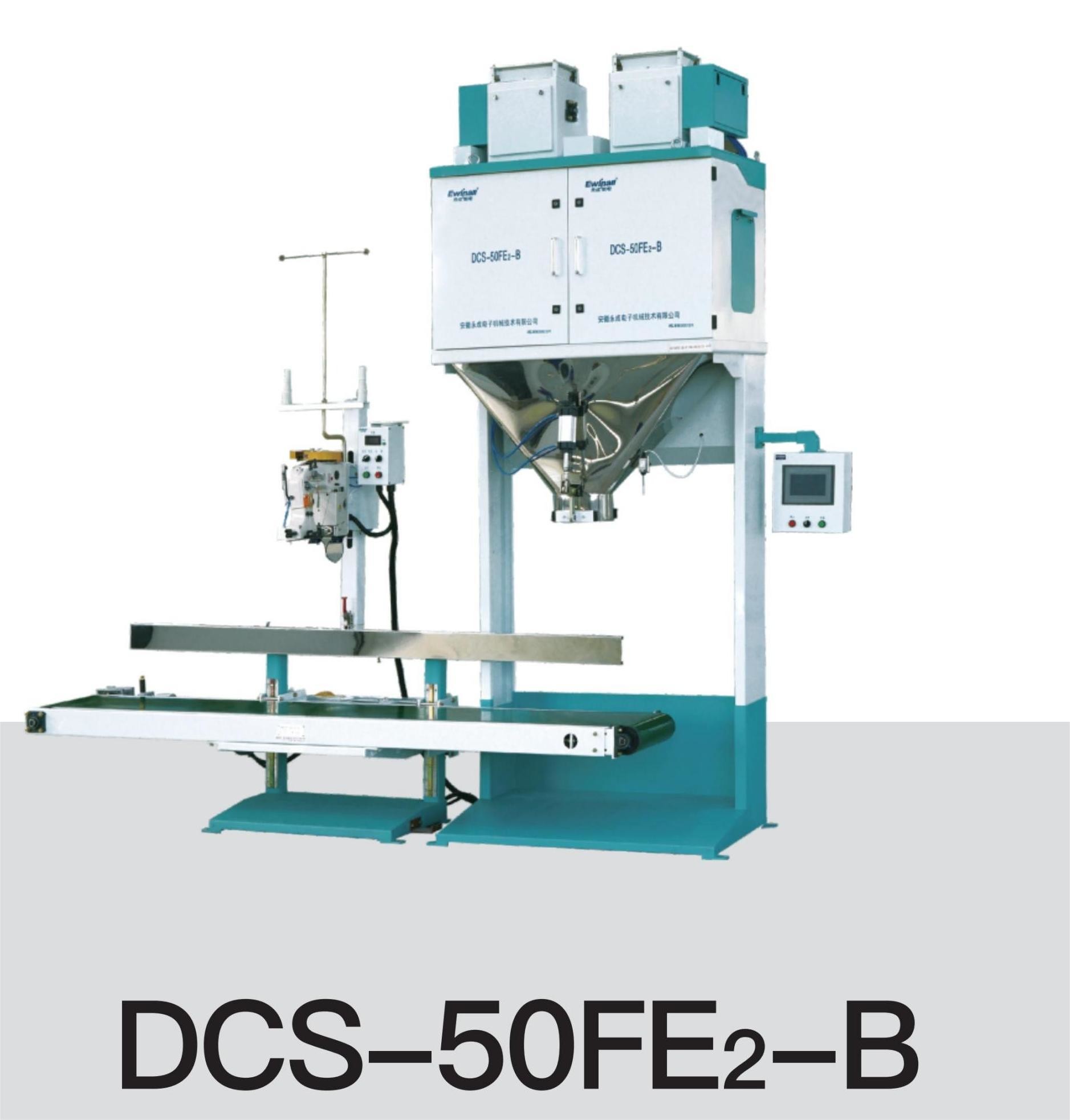

DCS-50FE2-B Electronic Quantitative Packaging Scale Product Description
1. Scope of application
Quantitative packaging of granular materials in rice, seeds, feed, chemical raw materials, sugar, peanuts and other industries.
2. Features
a. The international advanced high-precision weighing sensor and batching controller are adopted. The controller adopts a high-performance A/D converter with a conversion rate of 480 times per second and an input sensitivity of 0.5μν/d. The measurement accuracy is high and the stability is good.
b. Specially designed three-sensor support. This structure eliminates the problems of stress point offset and signal distortion caused by uneven distribution of materials in the weighing hopper.
c. The specially designed multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the packaging speed of the scale fast and the accuracy is high. The independent double-cylinder feeding overcomes the unavoidable use of three-position cylinders that have plagued quantitative packaging equipment for many years. The sealing ring is easy to wear and tear.
d. The specially designed sensor and cylinder airtight working room completely isolate the corrosion and wear of the cylinder and sensor by rice flour, dust and water vapor, which greatly prolongs the trouble-free operation time of the equipment.
e. The Chinese touch screen operation interface makes the operation interface more intuitive and humanized, and the functional operation is clear at a glance, reducing the chance of wrong operation.
f. There is a manual control mode, which can be manually operated to control the feeding and bag loosening mechanisms separately, so as to facilitate the cleaning of agglomerated and blocked materials.
g. Automatic bag sewing and automatic thread cutting functions.
h. Conveyor automatic lifting technology, core components adopt international famous brands, advanced functions, stable and reliable.
i. It has the functions of automatic counting of the number of packages and package quantity, printing and data communication.
j. The parts in contact with the material are made of stainless steel, which is corrosion-resistant and prolongs the service life of the equipment.

3. Technical parameters


Model DCS-50FE2-B
Weighing range (kg) 10~50
Display method touch screen
Packing speed (package/hour) 500~720
Division value (g) 5
Accuracy class X(0.2)
Power consumption, air consumption 1.3 kW,(0.4~0.5)MPa 16.7L/min
Working environment relative humidity ≤ 90%, temperature (0 ~ 40) ℃
Power supply requirements AC220V±5% 50Hz;AC380V±5% 50Hz
Dimensions (mm)
