Chemical Raw Materials Quantitative Packaging Machine For Sugar Peanuts

Rice, Seeds, Feed, Chemical Raw Materials, Sugar, Peanuts, Etc.Quantitative Packaging Machine.

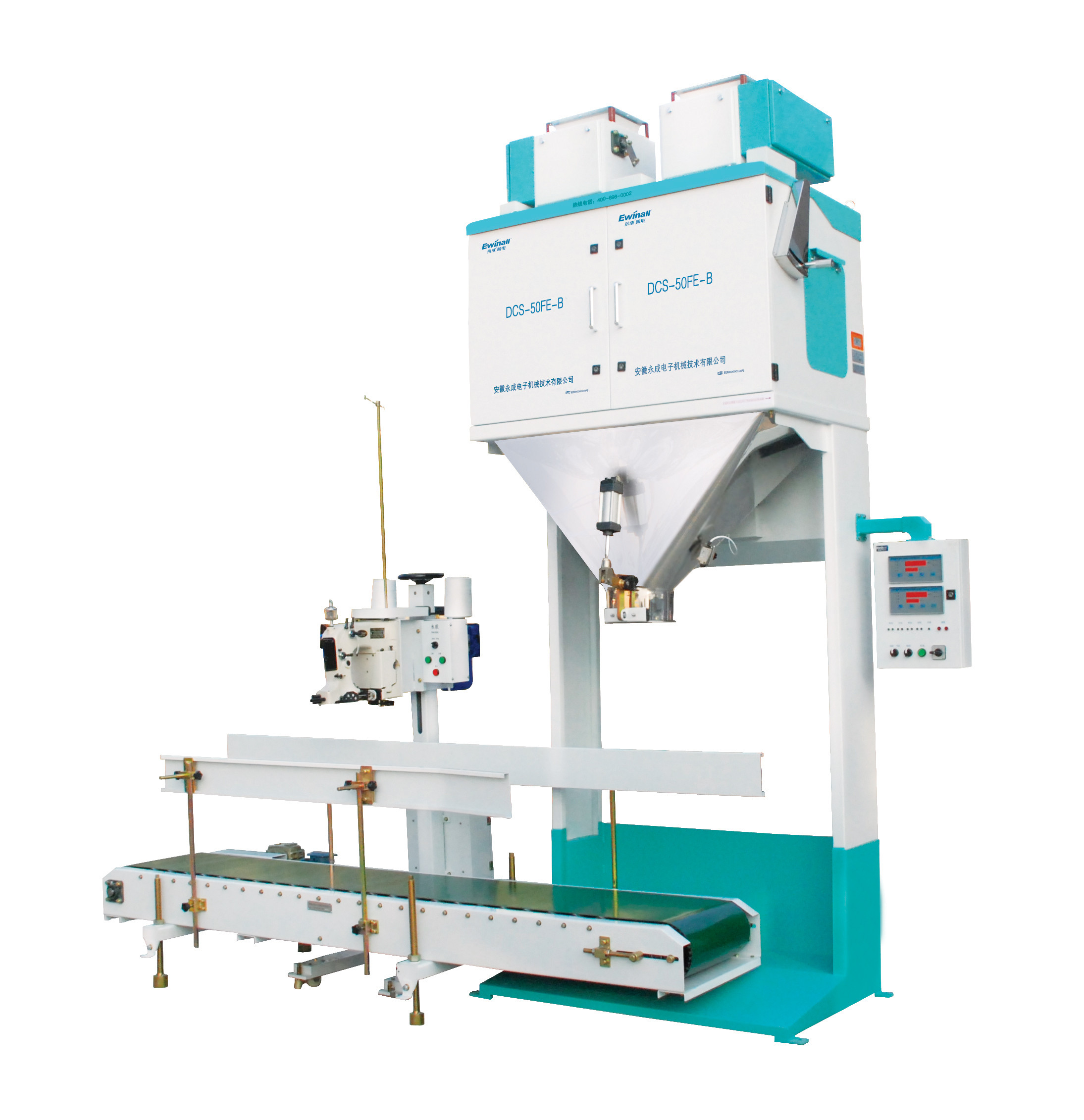

DCS-50FE2-B Electronic Quantitative Packaging Scale Product Description
1. Scope of application
Quantitative packaging of granular materials in rice, seeds, feed, chemical raw materials, sugar, peanuts and other industries.
2. Features
a. The international advanced high-precision weighing sensor and batching controller are adopted. The controller adopts a high-performance A/D converter with a conversion rate of 480 times per second and an input sensitivity of 0.5μν/d. The measurement accuracy is high and the stability is good.
b. Specially designed three-sensor support. This structure eliminates the problems of stress point offset and signal distortion caused by uneven distribution of materials in the weighing hopper.
c. The specially designed multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the packaging speed of the scale fast and the accuracy is high. The independent double-cylinder feeding overcomes the unavoidable use of three-position cylinders that have plagued quantitative packaging equipment for many years. The sealing ring is easy to wear and tear.
d. The specially designed sensor and cylinder airtight working room completely isolate the corrosion and wear of the cylinder and sensor by rice flour, dust and water vapor, which greatly prolongs the trouble-free operation time of the equipment.
e. The Chinese touch screen operation interface makes the operation interface more intuitive and humanized, and the functional operation is clear at a glance, reducing the chance of wrong operation.
f. There is a manual control mode, which can be manually operated to control the feeding and bag loosening mechanisms separately, so as to facilitate the cleaning of agglomerated and blocked materials.
g. Automatic bag sewing and automatic thread cutting functions.
h. Conveyor automatic lifting technology, core components adopt international famous brands, advanced functions, stable and reliable.
i. It has the functions of automatic counting of the number of packages and package quantity, printing and data communication.
j. The parts in contact with the material are made of stainless steel, which is corrosion-resistant and prolongs the service life of the equipment.

3. Technical parameters
