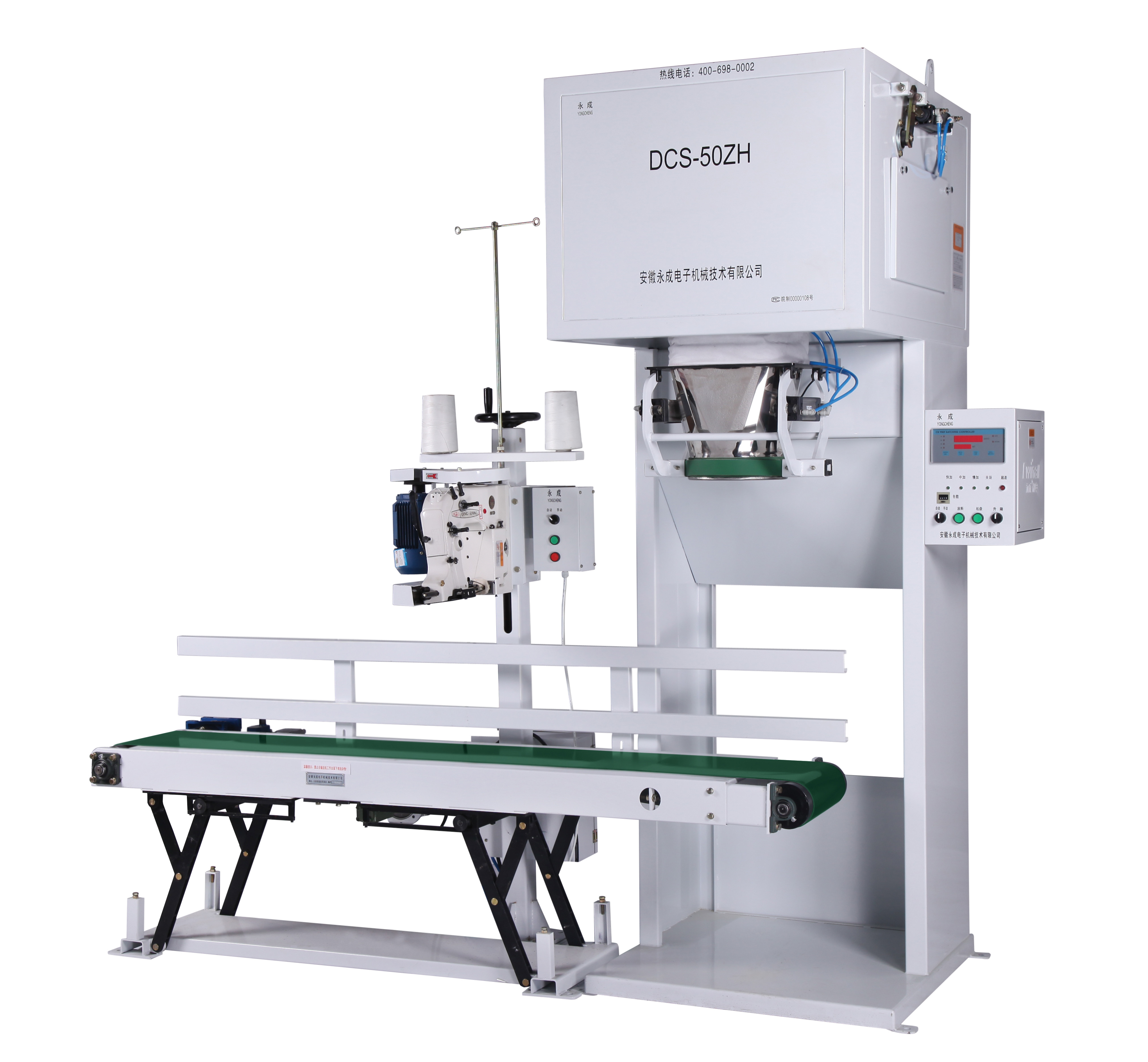

2.5kw Fodder Granular Animal Feed Packing Machine 25kg To 50kg

Product Details:

Place of Origin:	Anhui,China
Brand Name:	EWINALL
Certification:	ISO,CE,QMS,CCPIT,EMS,QEMS
Model Number:	DCS-50ZH

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Normal export standard wooden case
Delivery Time:	20 days
Supply Ability:	5 sets per day

Contact Now

Detailed Product Description

Packing Range:	25kg To 50kg	Load Cell:	METLLER TOLEDO Load Cell
Running:	Electric Motor	Sewing:	Auto Cutting And Sewing
Conveyor:	Auto Lifting	OEM:	Avaliable
Power:	2.5kw	Capacity:	200-300 Bags Per Hour
High Light:	2.5kw Animal Feed Packing Machine , fodder packing machine 25kg , granular packaging machine 50kg

Belt Packing Scale For Bran,Chaff,Powder And Bean Bran

Animal Feeds,beans bran and powder Belt Packing Scale from 25kg to 50kg

Scope of application

Suitable for granular materials with general fluidity.

Technical parameters

model	DCS-50hz
Weighing range	(25-50) kg
Division value	10g
Weighing error	±0.1%FS
Packaging capacity	(120-240) packages/hour
Power/power consumption	AC380V±5% 50Hz; 1.85KW
Air source/gas consumption	0.4～0.5Mpa, compressed air 11.7L/min
Ambient temperature	(0～40)℃
environment humidity	It does not exceed 90%RH at 40°C, and greater humidity is allowed at low temperatures
Length x width x height (mm)	2933x1385x2544

Features

1. Unique frequency conversion speed control conveyor feeding mechanism. The frequency converter controls the power supply frequency of the conveyor motor to realize the continuous feeding of the conveyor to the metering hopper at fast, medium and slow flow rates. For granular particles with general fluidity The material can realize better feeding control, realizing quantitative feeding and packaging.

2. Conveyor automatic lifting technology, automatic bag sewing and automatic thread cutting function. Advanced functions, stable and reliable.

3. There is a manual control mode, which can control the discharging and loosening mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials.

4. With automatic drop correction function. Out of tolerance alarm.
