Fodder Belt Scale Pellet Animal Feed Packing Machine Auto Lifting 11.7L/ Min PLC

Product Details:

Place of Origin:	Anhui,China
Brand Name:	EWINALL
Certification:	ISO,CE,QMS,CCPIT
Model Number:	DCS-50ZH

Contact Now

Detailed Product Description

Packing Range:	25kg To 50kg	Load Cell:	Three Load Cells
Control:	PLC Control	Sewing:	Auto Cutting And Sewing
Conveyor:	Auto Lifting	OEM:	Avaliable
High Light:	11.7L/ min Animal Feed Packing Machine , Belt Scale Pellet packing machine , PLC fodder packing machine

Animal Feeds Belt Packing Scale from 25kg to 50kg

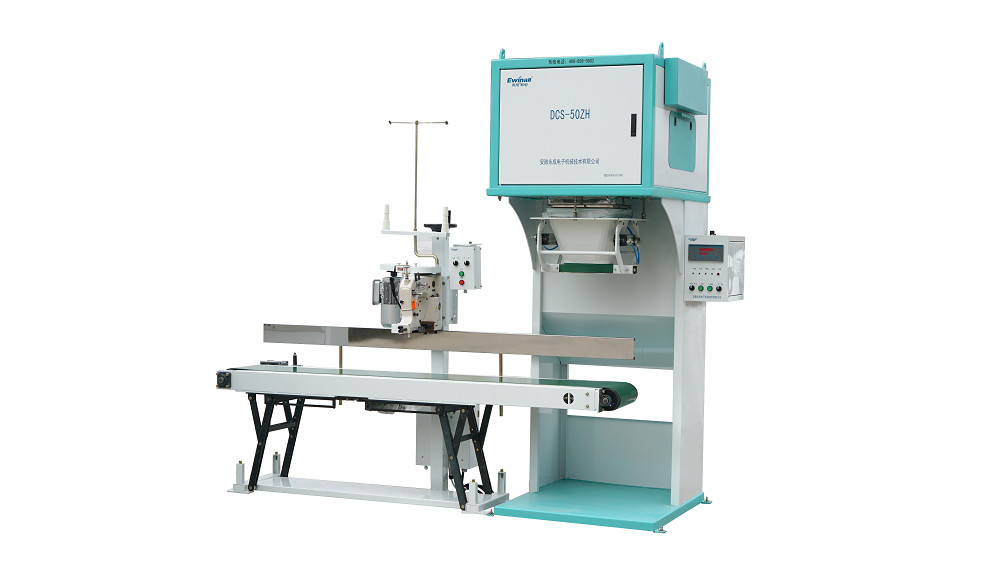

DCS-50ZH Belt Scale For Different Kinds Of Granular Grain

Scope of application

Suitable for granular materials with general fluidity.

Technical parameters

model	DCS-50ZH
Weighing range	(25-50) kg
Division value	10g
Weighing error	±0.1%FS
Packaging capacity	(120-240) packages/hour
Power/power consumption	AC380V±5% 50Hz; 1.85KW
Air source/gas consumption	0.4～0.5Mpa, compressed air 11.7L/min
Ambient temperature	(0～40)℃
environment humidity	It does not exceed 90%RH at 40°C, and greater humidity is allowed at low temperatures
Length x width x height (mm)	2933x1385x2544

Features

1. Unique frequency conversion speed control conveyor feeding mechanism. The frequency converter controls the power supply frequency of the conveyor motor to realize the continuous feeding of the conveyor to the metering hopper at fast, medium and slow flow rates. For granular particles with general fluidity The material can realize better feeding control, realizing quantitative feeding and packaging.

2. Conveyor automatic lifting technology, automatic bag sewing and automatic thread cutting function. Advanced functions, stable and reliable.

3. There is a manual control mode, which can control the discharging and loosening mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials.

4. With automatic drop correction function. Out of tolerance alarm.

Fodder Belt Scale Pellet Animal Feed Packing Machine Auto Lifting 11.7L/ Min PLC 0
