| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | DCS-SZ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per day |
| Materials: | Grain | Form: | Weightless Flow Control |
|---|---|---|---|
| Accuracy: | ±0.3%-±0.5% | Warranty: | 12months |
| Driven Type: | Electric | Air Support: | No Need |
| High Light: | Grain Pellet Batching System,weightless flow control Batching System,Electric Pellet Batching System |
||

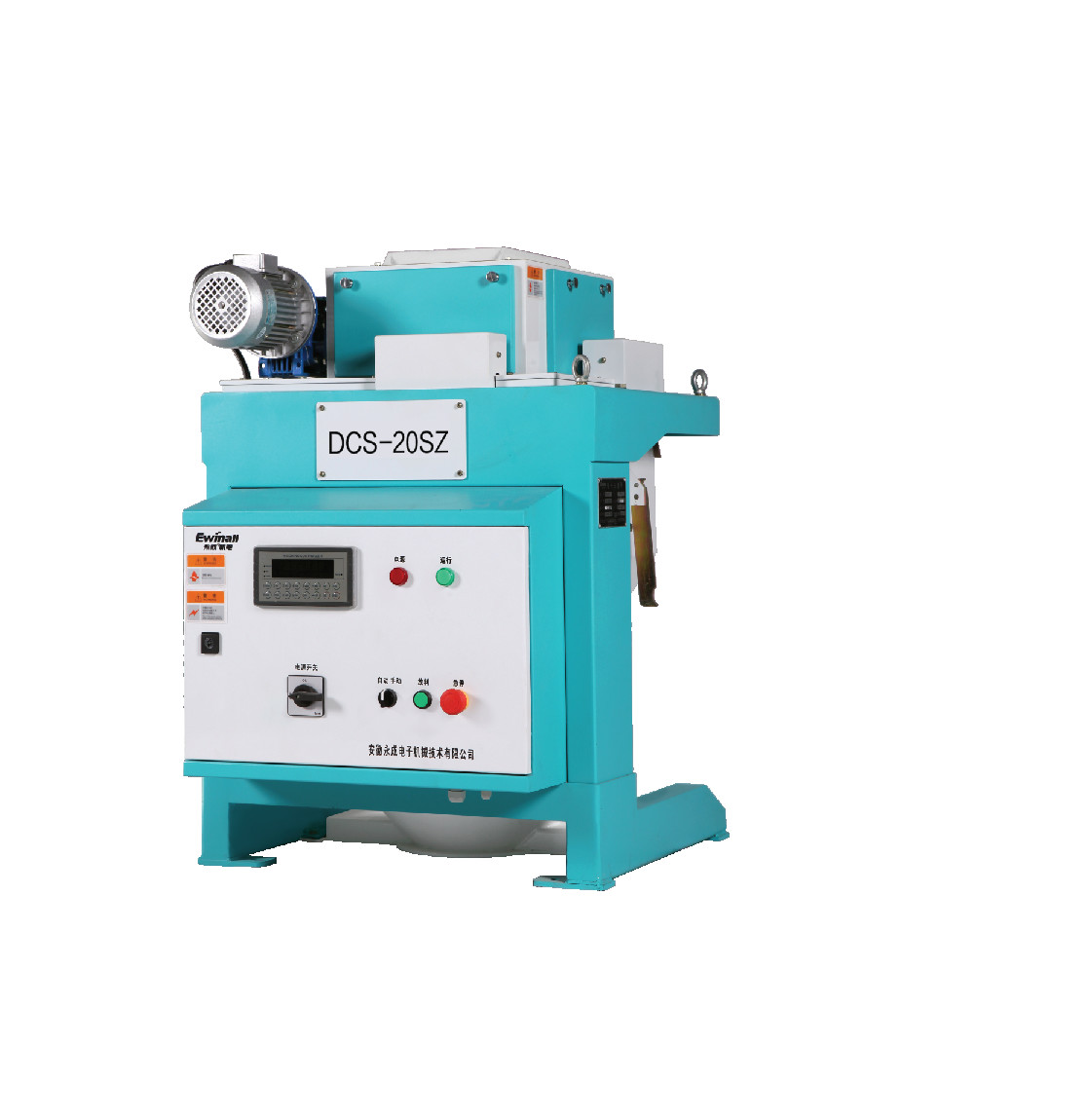

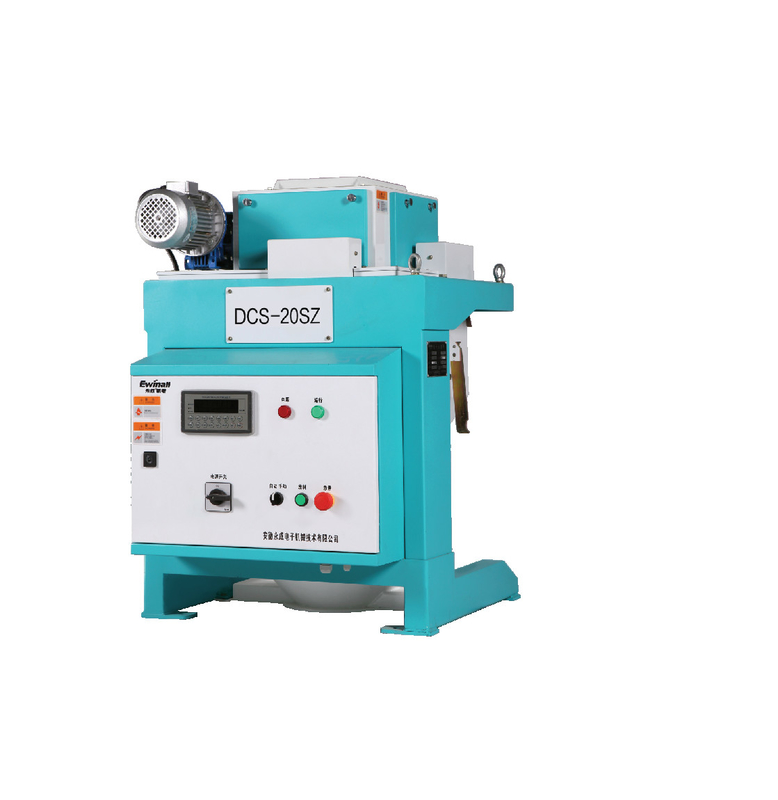

Batching System Machine Used In Pellet Batching Systems In Grain, Chemical, Feed And Other Industries.
1. Scope of application

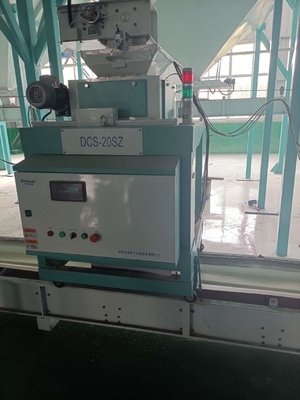

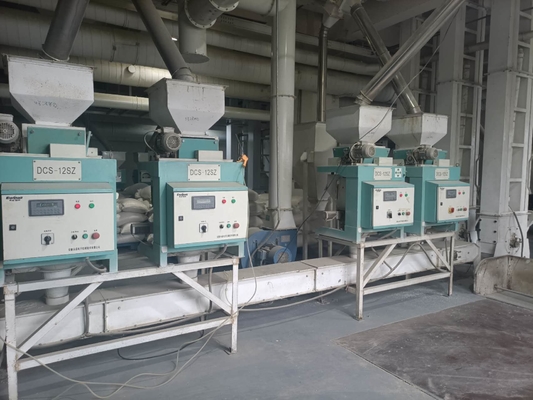

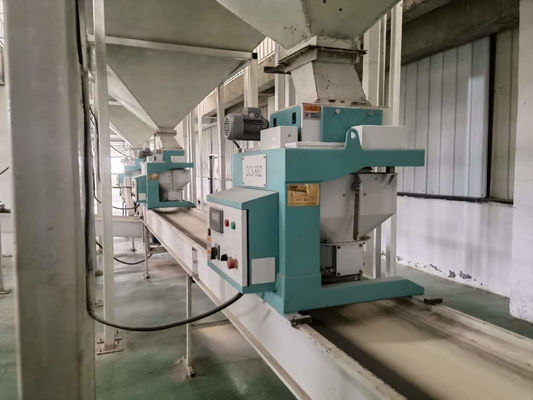

The weightless flow controller is a weighing and batching equipment that feeds intermittently and discharges continuously. It is widely used in pellet batching systems in grain, chemical, feed and other industries.
| Model | DCS-6SZ | DCS-12SZ | DCS-20SZ | DCS-40SZ |
| Rated capacity | (300～6000)kg/h | (300～12000)kg/h | (2000～20000)kg/h | (5000～40000)kg/h |
| Cumulative measurement accuracy | ±0.5% | ±0.3% | ±0.5% | ±0.3%～±0.5% |
| Power supply voltage | AC 380V ±5% ,50HZ | |||
| Average Power | 100W | 140W | 140W | 140W |
| Maximum instantaneous power | ≤ 260W | ≤ 460W | ≤ 460W | ≤ 460W |
| Working environment | (-10～40)℃ | |||
| Environmental vibration | Amplitude≤1mm; Frequency: ≤25 HZ | |||
|
Dimensions (mm)L×W×H |
784×740×907 | 928×919×1218 | 1329×1083×1258 | 1375×1326×1324 |
Remarks: The test data of rice as packaging material under specific conditions.
2. Features
a. Weighing instrument + PLC dual-core control technology, the number of A/D conversions reaches 480 times per second. To ensure the strict requirements of the speed and precision of the equipment.
b. The structure of three sensors is adopted, the layout of the weighing cylinder is balanced, and the force is reasonable, which improves the service life of the equipment, and is not disturbed by the vibration of the workshop machine, and has high stability and anti-interference ability.
c. Safety and sanitation. In order to ensure the safety of ingredients, we use stainless steel for feeding, weighing and other material contact parts, and the interior is polished smooth to eliminate dead ends and no residue.
d. To prevent rodent infestation and acid corrosion, we have adopted a closed working room, and all lines, sensors, and solenoid valves have used steel wire grooves or protective iron boxes, which also isolates the corrosion and wear of the cylinder and sensors in the working environment, prolonging the working life. Equipment trouble-free operating time.
e. The action mechanism is driven by a unique motor, which does not require an air source when working. Combined with the advanced PID algorithm to achieve extremely high control accuracy, it has high accuracy, constant dynamic flow, simple structure and high reliability.
f. The operation is simple. The operator only needs to set the target flow rate, turn on the automatic knob, and the equipment will directly enter the automatic operation state.
g. It has the functions of automatic flow statistics, printing and data communication.
h. It adopts intermittent feeding, continuous discharging, uniform discharging, small impact of material speed, and does not damage the integrity of materials.
i. If a relevant alarm is generated during automatic operation and one of the machines stops, the other online products will stop running at the same time to ensure the consistency of the material ratio.
