| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | DCS-50FB3+ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Weighing Range: | 5kg-50kg | Installation: | Easy Connection |
|---|---|---|---|
| Operate: | Touch Screen Operate | Load Cell: | METLLER TOLEDO Load Ecll |
| Driven: | Electric And Air | Power: | Any Country Power |
| PLC: | DELTA PLC Control | Conveyor: | Auto Lifting |
| High Light: | High Precision Grain Packing Machines,50KG Grain Packing Machines,5KG Grain Packing Machines |
||

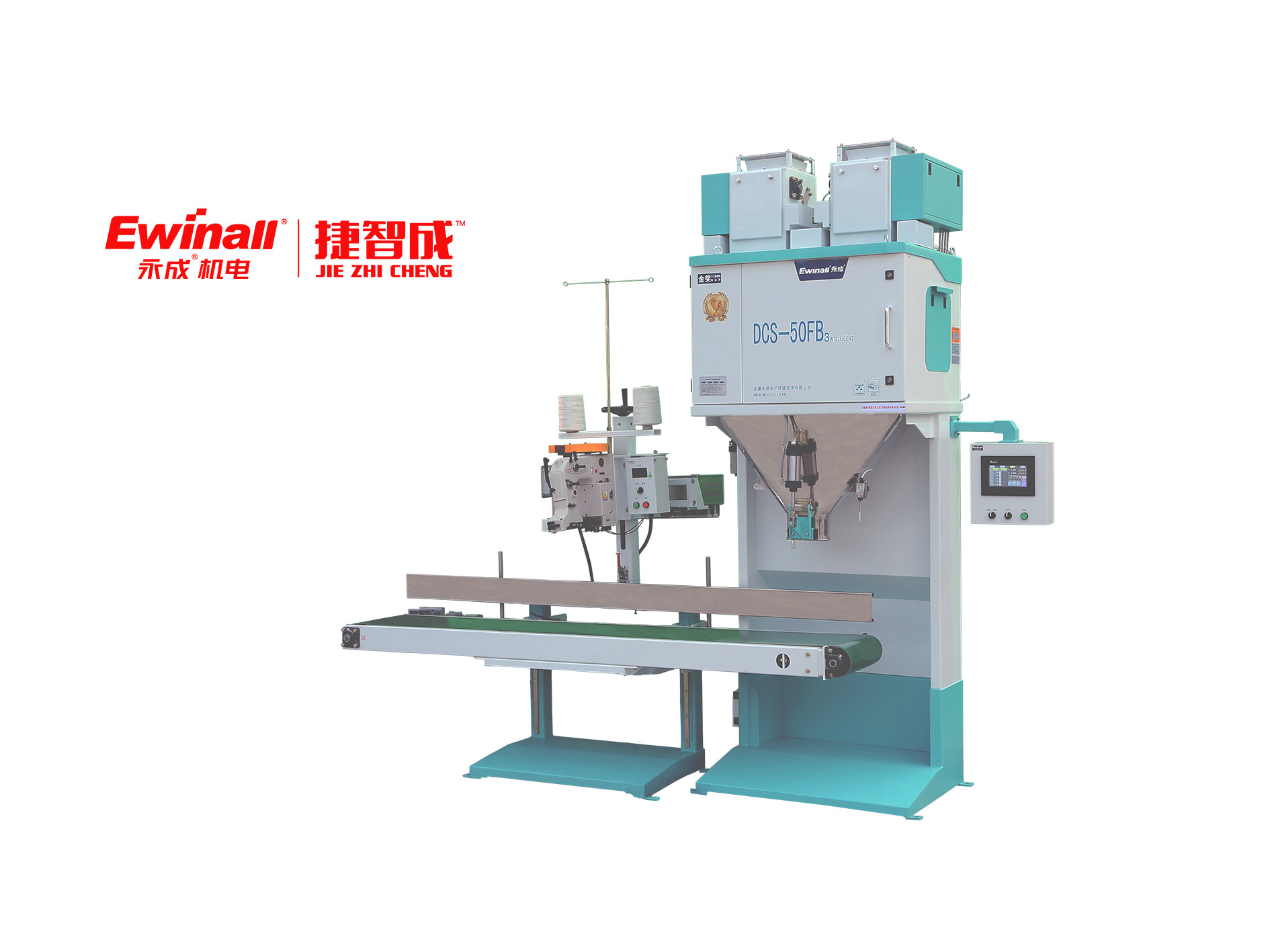

Grain Packing Machines,DCS-50FB3+,5-50KG,Fast Packing,Weighing Precision Is High, Chinese Famous Brand
1. Scope of application
Automatic quantitative packaging for materials with good fluidity (such as: soybeans, feed, rice, mung beans, sesame, plastic granules, etc.)
2. Technical parameters (applicable to rice)
| Model | DCS-50FB3+ |
| Weighing range | 5kg～50kg |
| Display method | true color touch screen |
| Packing speed (package/hour) | 700～1080 |
| Power supply requirements | AC220V±5% 50Hz；AC380V±5% 50Hz |
| Accuracy class | X(0.2) |
| Working environment | relative humidity ≤ 90%, temperature (0 ~ 40) ℃ |
| Power consumption, air consumption | 1.1 kW,(0.4～0.5)MPa 16.7L/min |
| Division value (g) | 2 |
| Dimensions (mm) | 3167×1044.5×2692.5 |
3. Features
3.1. True color touch screen control.
3.2. Adopt PLC+ weighing instrument dual-core control mode.
3.3. Three-load cells isoplane three-dimensional suspension.
3.4. Anti-oxidation of rice flour closed studio.
3.5. Double cylinder combined feeding.
3.6. String light.
3.7. Easy to turn.
3.8. Automatic oil supply sewing machine.
3.9. Inflatable insurance,get a "fresh" step.
