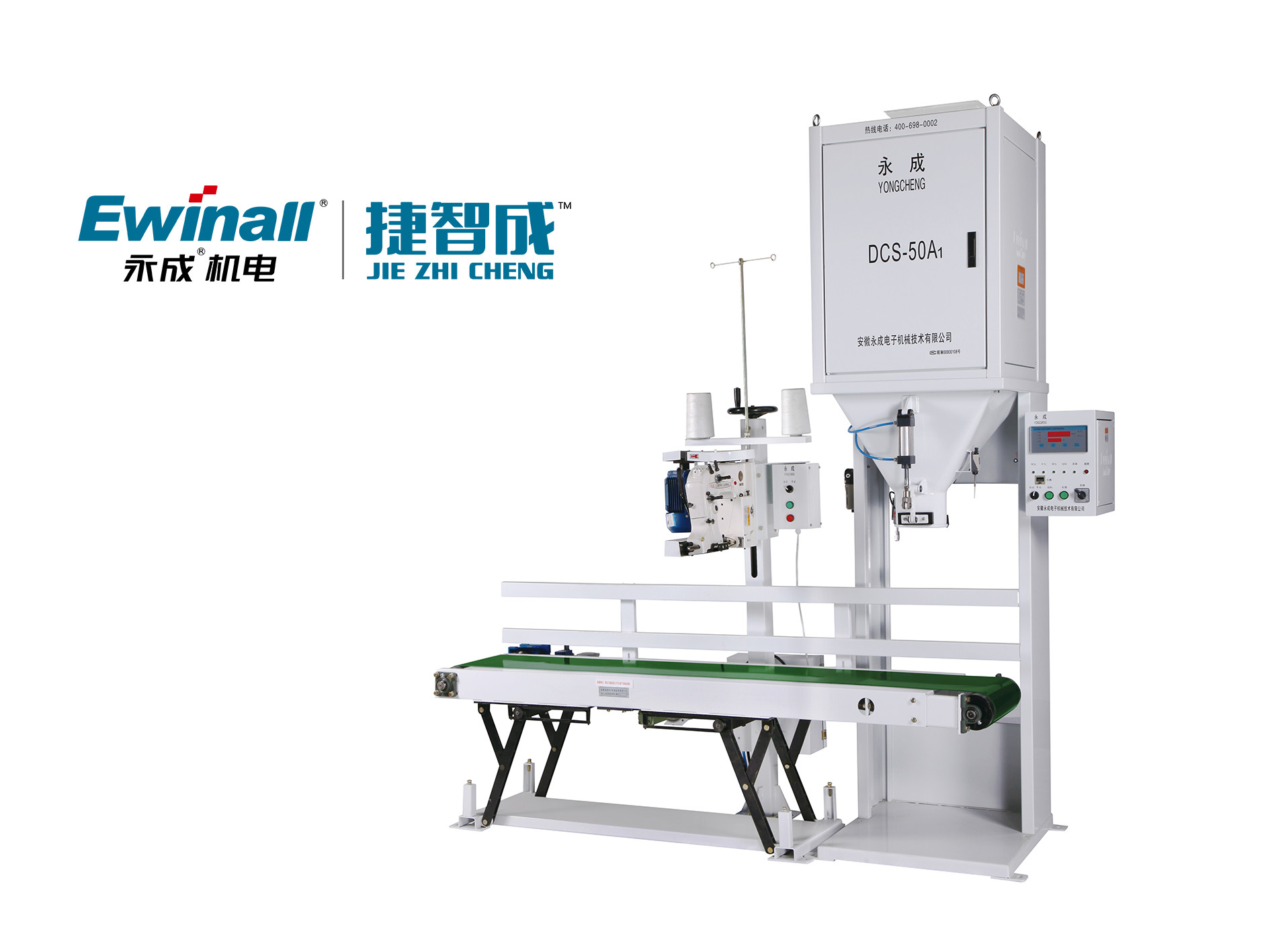

Electronic Quantitative Grain Packing Machines For Rice White Sugar

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Ewinall
Certification:	ISO9001:2008,CE,CCPIT,QMS
Model Number:	DCS-50A1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	packed into two wooden boxes
Delivery Time:	10 days
Supply Ability:	5 sets per day

Contact Now

Detailed Product Description

Weighing Range:	5kg-50kg	Installation:	Easy Connection
Driven:	Electric And Air	Warranty:	12months
Power:	Any Country Power	Conveyor:	Auto Lifting
High Light:	Grain Packing Machines Electronic Quantitative , Electronic Quantitative Packaging Scale , Electronic Quantitative Grain Packing Machines

Grain Packing Machines,Electronic Quantitative Packaging Scale For Rice White Sugar Feed Plastic Granules

1. Features:
① Conveyor automatic lifting;
② The unique three-stage feeding mechanism design, combined with the control algorithm of the controller, makes the packaging speed and accuracy of the scale fast;
③ Over-tolerance alarm;
④ Simple operation, the operator only needs to set the bag and touch the bag clamp switch, and the actions of feeding, filling and unloading are all completed automatically;
⑤ Equipped with a manual control switch for manual operation, respectively controlling the "unloading" and "loose bag" mechanisms, so as to facilitate the cleaning of residual, agglomerated and blocked materials;
⑥ It has the functions of statistical display of the number of packages and cumulative weight;
2.Technical parameters:

Model	DCS-50A1
Weighing range (kg)	5～50
Division value (g)	2
Packaging error	0.1%F.S
Packing speed (package/h)	240-500
Working environment	power supply relative humidity <90%, 4N-AC380V 50Hz
Power consumption, air consumption	1.1kw (0.4-0.5)Mpa 16.7L/min
Dimensions (mm) Length×width×height	2740×864×2651
