| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | DCS-100FA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Supply Ability: | 5 sets per day |
| Form: | Weightless Flow Control | Power: | Any Country Power |
|---|---|---|---|
| Weighing Range: | 50-100KG | Color: | Blue And White |
| Warranty: | 12 Months | Driven Type: | Electric And Air |

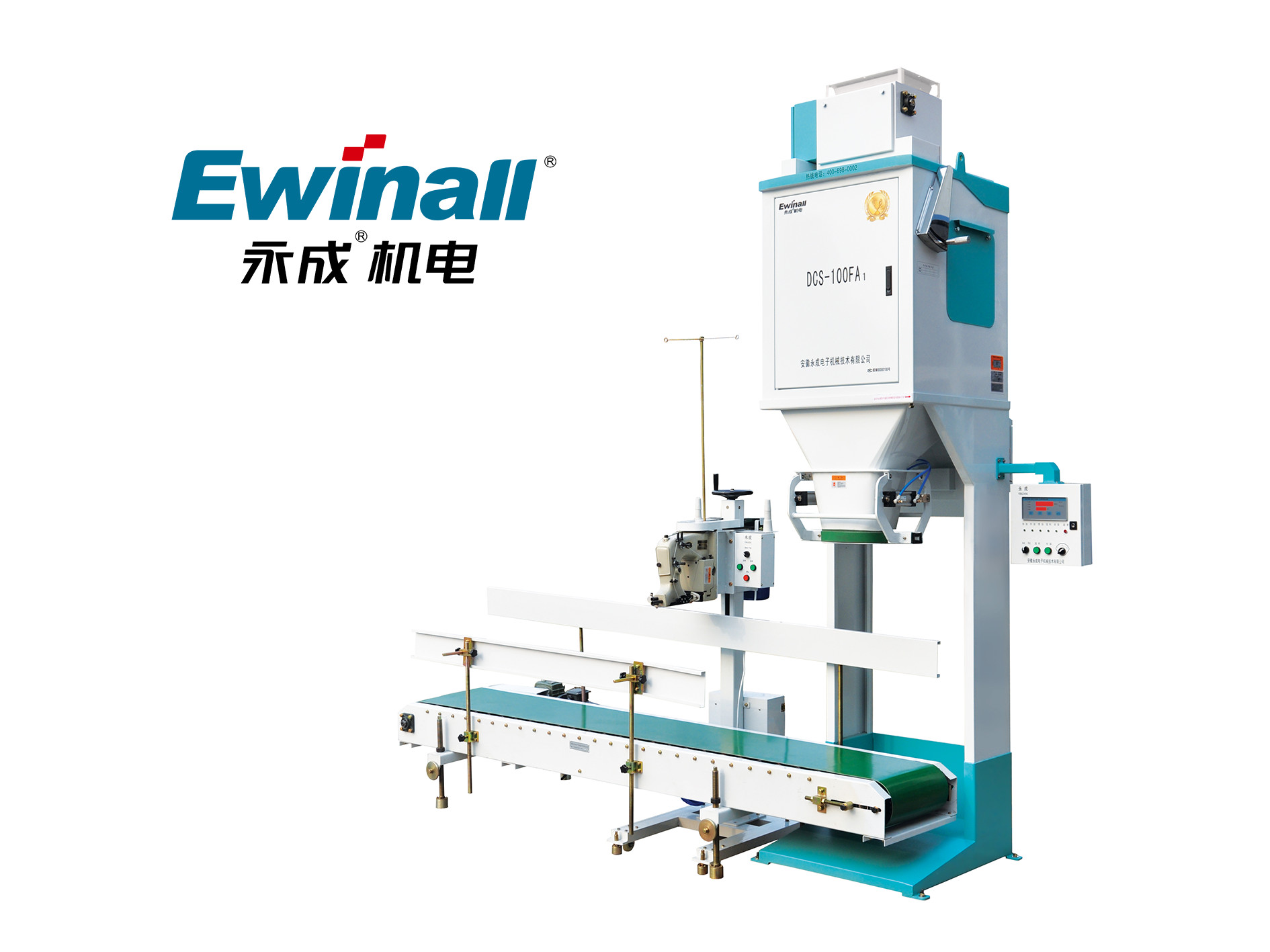

DCS-100FA Electronic Quantitative Packaging Scale Product Description
1. Scope of application
It is suitable for automatic quantitative packaging of materials with good fluidity (such as: rice, white sugar, feed, plastic granules, etc.).
2. Technical parameters (applicable to rice)
| Model Specifications | DCS-100FA |
| Weighing range (kg) | 50～100 |
| Display method | meter |
| Packing speed (package/hour) | 260～420 |
| Division value (g) | 10 |
| level of accuracy | X(0.1) |
| Power consumption, gas consumption | 1.3 kW, (0.4～0.5) MPa 16.7L/min |
| working environment | Relative humidity≤90%, temperature (0～40)℃ |
| power requirements | AC220V±5% 50Hz; AC380V±5% 50Hz |
| Dimensions (mm) length × width × height | 3436×1108×3235 |
Remarks: 1. The test data of rice as packaging material under specific conditions.
3. Features:
1. It adopts three-sensor structure, the layout of the weighing cylinder is balanced, the force is reasonable, and it is not disturbed by the vibration of the machine in the workshop. It has high stability and anti-interference ability.
3. Friendly man-machine interface, simple and convenient equipment operation, intelligent storage of production reports, and data communication functions .
4. Safety and sanitation. In order to ensure food safety, we use stainless steel for feeding, weighing barrels and other material contact parts .
5. We have adopted a closed studio, all lines, sensors, and solenoid valves are equipped with steel wire slots or protective iron boxes to prevent rodent damage
6. The conveyor is automatically lifted and lowered, and the bag is automatically sewn.
