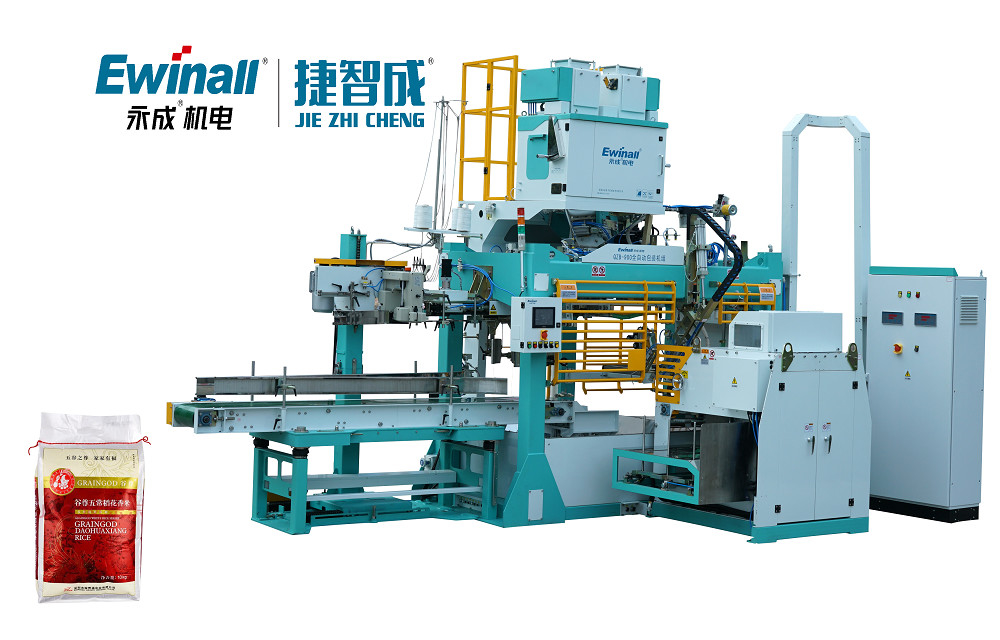

25kg 7KW Fully Automatic Flour Packing Machine Bagging Systems EWINALL Three Phase

25 Kg Fully Automatic Rice Packing Machine Bagging System

900 model fully automatic PP and PE bags

900 model fully automatic bagging and sealing machine

The technical characteristic

Capacity:

Note:when filling CO2,the capacity only have 93% with normal speed,and the standard of CO2 must meet GB10621-2006 and the purity ≥99.9% and so on.

Air pressure:0.5～0.7MPa

Total air consumption:6 m3/h

Total power consumption:AC380V±10%,50Hz,Three-phase five little system woven bags 7 KW,plastic bag 9KW

Envirment temperature:0～40℃

Ambient humidity:Less than 90%RH at 40C,higher humidity is permitted at lower temperature

Form:TN-S

Sepcial advantage:

1, After prepared bags manual,fully automatic getting bag,clamping bag,openning bag,checking,weighing,filling CO2,filling bag ,vacuum with Failure Alarm and Safety protection

2, The packing scale using advanced measurement structure,three load cells special designed,

3, Domestic first using independent single cylinder feeding system :Each cylinder completes only one movement, spurned the original design that one cylinder completes three movement, increased the life of cylinder

4, The feeding and weighing system are in closed room,avoid the wear of cylinder and load cells by rice flour and vapor,extend the life of machine

5, Adjustable handle can adjust the feeding hole for different material.

6, Assembly getting bag machine get the advantage of horizontal type one and vertical type one,use of woven bag,PE hand packing bag

7, Three in one packing machine can be used for PP bag,PE bag and vacuum.
