| Place of Origin: | CHINA |
| Brand Name: | EWINALL |
| Certification: | CE,ISO,QMS,CCPIT |
| Model Number: | QZB-900 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Normal wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | one set one day |
| Range: | 5kg To 25kg | Package: | PP,PE With Laminated |
|---|---|---|---|
| Motor: | Servo Motor | Pumb: | BUSCH |
| Applicant: | Different Kinds Of Granular | Users In The World: | More Than 1000 Custormers |
| Safety: | Auto Alarm | Capacity: | 600-900 |
| High Light: | 0.7MPa Fully Automatic Flour Packing Machine,9KW automatic plastic bag packing machine,CCPIT auto bag filling and sealing machine |
||

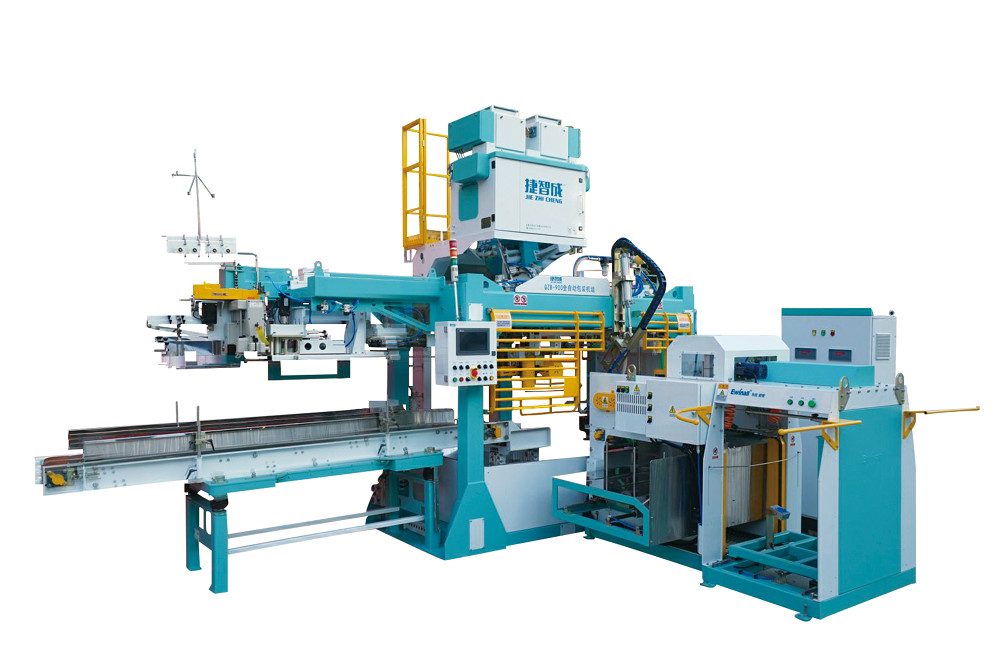

900 model fully automatic bagging and sealing machine
The technical characteristic
Capacity:
| The weight | Packing speed |
| 5kg | 900-960 Bags/H |
| 10kg | 800-840 Bags/H |
| 15kg | 600-700 Bags/H |
| 25kg | 450-550 Bags/H |
Note:when filling CO2,the capacity only have 93% with normal speed,and the standard of CO2 must meet GB10621-2006 and the purity ≥99.9% and so on.
Air pressure:0.5～0.7MPa
Total air consumption:6 m3/h
Total power consumption:AC380V±10%,50Hz,Three-phase five little system woven bags 7 KW,plastic bag 9KW
Envirment temperature:0～40℃
Ambient humidity:Less than 90%RH at 40C,higher humidity is permitted at lower temperature
Form:TN-S
Sepcial advantage:
1,After prepared bags manual,fully automatic getting bag,clamping bag,openning bag,checking,weighing,filling CO2,filling bag ,vacuum with Failure Alarm and Safety protection
2,The packing scale using advanced measurement structure,three load cells special designed,
3,Domestic first using independent single cylinder feeding system :Each cylinder completes only one movement, spurned the original design that one cylinder completes three movement, increased the life of cylinder
4,The feeding and weighing system are in closed room,avoid the wear of cylinder and load cells by rice flour and vapor,extend the life of machine
5,Adjustable handle can adjust the feeding hole for different material.
6,Assembly getting bag machine get the advantage of horizontal type one and vertical type one,use of woven bag,PE hand packing bag
7,Three in one packing machine can be used for PP bag,PE bag and vacuum.
some Our auto Custormers in china and other country
| WILMAR RICE MILL INDONESIA FACTORY | WILMAR RICE MILL VIETNAM FACTORY |
| TANASAN RICE MILL | THAI STANDARD RICE MILL |
| WILMAR RICE MILL PHILIPPINES FACTORY | WILMAR RICE MILL MYANMAR FACTORY |
| PT BERILL JAYA SEJAHTERA IN INDONESIA | KVN MACHINERY AND PARTS ENTERPRISES IN PHILIPPINES |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| WILMAR KERRY GUIGANG(WILMAR GROUP) | ZHANGJIANG BAOLONG RICE MILL |
| WILMAR KERRY BAICHENG(WILMAR GROUP) | QIQIHAER TIANLIN RICE MILL |
| HANGZHOU RICH GRANARYRICE MILL |
| |
| |
| |
| |
| |
| |
| |
QUAN ZHOU FUHAI RICE MILL | |
| |
| ARK-HOM RICEN MILTAILI |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
