Vacuum Granular Fully Automatic Flour Packing Machine Woven Bag PLC 133L/ Min

Vacuum Granular Fully Automatic Flour Packing Machine Woven Bag PLC 133L/ Min

  • Vacuum Granular Fully Automatic Flour Packing Machine Woven Bag PLC 133L/ Min
  • Vacuum Granular Fully Automatic Flour Packing Machine Woven Bag PLC 133L/ Min
Vacuum Granular Fully Automatic Flour Packing Machine Woven Bag PLC 133L/ Min
Product Details:
Place of Origin: China
Brand Name: EWINALL
Certification: ISO,CE,QSM,CCPIT
Model Number: QZB-900Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Normal wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 set per day
Contact Now
Detailed Product Description
Warranty: 1 Year Voltage: AC380V±10% 50HZ
Application: Granular Material Power: 12KW
Dimension(l*w*h): 6492*3894*3440 Advantage: PP,PE And Vacuum
Range: 5kg To 25kg Auto: 100% Fully Automatic
High Light:

133L/ min Fully Automatic Flour Packing Machine

,

granular packing machine PLC

,

automatic vacuum packaging machine woven bag

Fully Automatic 900Z Model PP,PE And Vacuum Packing Machine

QZB-900Z FULLY AUTOMATIC PP,PE,VACUUM packing machine

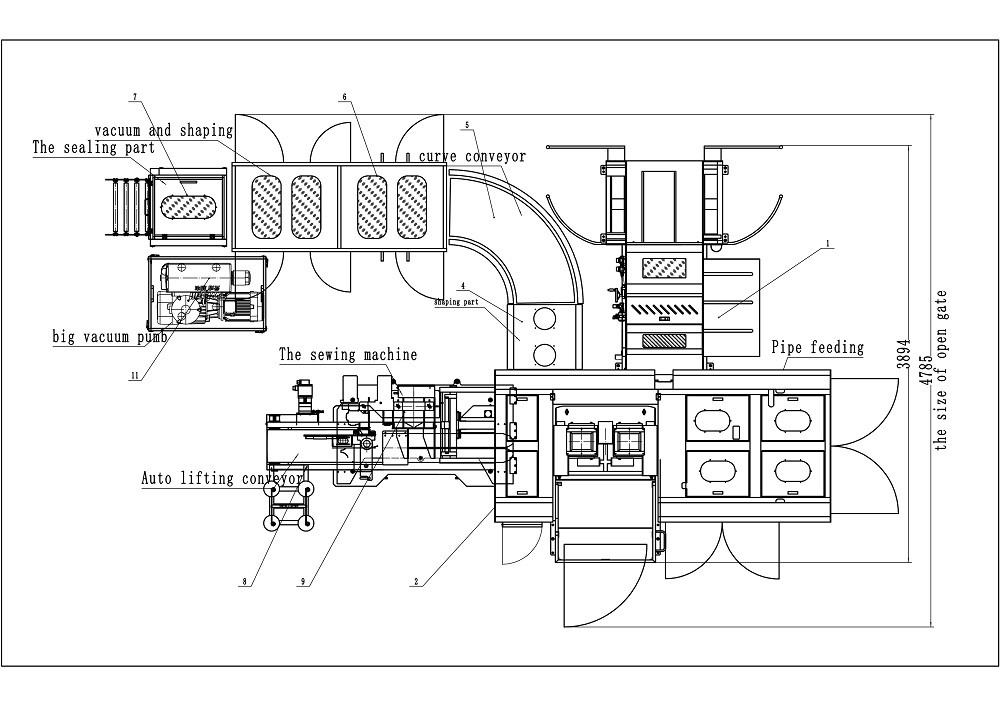

The part of machine

1.The scale

2.auto packing machine

3. combination bag spply machine

4. sewing part

5. auto lifting conveyor

6. control system

7. vacuum and shaping part





Main technical performance of packaging unit

Packaging capacity (there is no pause in the normal operation of the equipment, and the test data is based on rice as the packaging material):



The weight capacity
2.5kg Inflatable 660-720 packs / hour; vacuum 600-660 packs / hour;
5kg Inflatable 720-780 packs / hour; vacuum 600-700 packs / hour; woven bag 800-900 packs / hour;;
10kg Inflatable 660-720 packs / hour; vacuum 600-660 packs / hour; woven bag 780-840 packs / hour;
15kg 600-660 bags / hour in woven bag;
25kg 500-600 bags / hour in woven bag;







Note: When using carbon dioxide gas packaging, carbon dioxide gas must meet the requirements of national standard GB10621-2006, purity ≥99.9%, etc.

Air preesure:0.5~0.7MPa.

Air consumption:The air-packing work consumes 100L / min; the vacuum work consumes 133L / min.

Power consumption: AC380V ± 10%, 50Hz, three-phase five-wire system, grounding form: TN-S.Inflatable packaging work 9KW; plastic vacuum packaging work 12KW.

Ambient temperature: 0 to 40 ° C.

Ambient humidity: no more than 90% RH at 40 ° C, and greater humidity is allowed at low temperatures.

Dimensions L × W × H (mm): 6492 × 3894 × 3353



Features:



1. Three-in-one packaging unit, which is equipped with woven bag packaging, inflatable fresh-keeping heat-sealing packaging, and vacuum packaging on both sides. (Optional folding function)

2. After the equipment is put in the bag manually, it can complete the filling and sealing process automatically, and the operation is convenient and simple. The equipment has the function of dynamic adjustment in place to realize the system parameter recipe storage. When switching between different product phases, just click on the product phase to be produced on the touch screen, the device automatically adjusts to the corresponding parameters, and the customer realizes automatic production change.

3. It adopts touch screen and PLC programmable centralized control system, and the drive uses servo control with high degree of automation. Quick change of specifications, can automatically and quickly change product packaging specifications to meet the needs of flexible production.

4. The combined bag feeding machine is suitable for automatic feeding of woven bags and PE buckle hand packing bags. Double station bag feeding mechanism, no need to stop the continuous bag feeding.

5. The equipment has the function of fault self-test prompt, and the fault can be quickly eliminated according to the fault prompt. Simple and convenient maintenance.

6. The equipment adopts a closed structure design and has a safety interlocking device.

7. Quantitative packaging scale adopts separate cylinder to drive feeding, three-sensor weighing structure.8. The weighing components are located in a closed working room to reduce the corrosion and wear of the components.
