PP Bagging Fully Automatic Rice Packing Machine 50HZ AC380V 12KW

fully Automatic rice packing machine

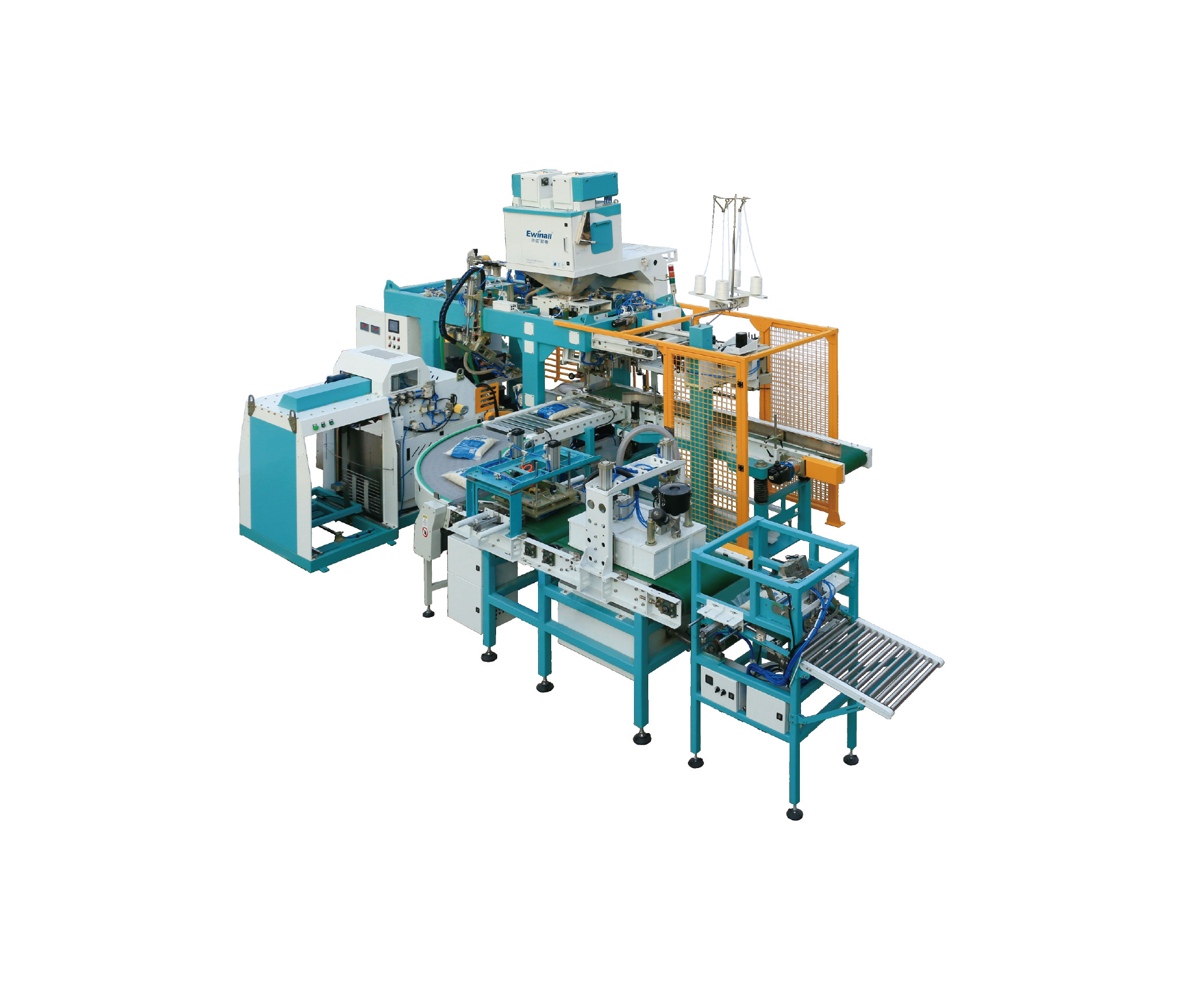

QZB-900Z FULLY AUTOMATIC PP,PE,VACUUM packing machine

The part of machine

1.The scale

2.auto packing machine

3. combination bag spply machine

4.sewing part

5.auto lifting conveyor

6.control system

7.vacuum and shaping part

Main technical performance of packaging unit

Packaging capacity (there is no pause in the normal operation of the equipment, and the test data is based on rice as the packaging material):

Note: When using carbon dioxide gas packaging, carbon dioxide gas must meet the requirements of national standard GB10621-2006, purity ≥99.9%, etc.

Air preesure:0.5～0.7MPa.

Air consumption:The air-packing work consumes 100L / min; the vacuum work consumes 133L / min.

Power consumption: AC380V ± 10%, 50Hz, three-phase five-wire system, grounding form: TN-S.Inflatable packaging work 9KW; plastic vacuum packaging work 12KW.

Ambient temperature: 0 to 40 ° C.

Ambient humidity: no more than 90% RH at 40 ° C, and greater humidity is allowed at low temperatures.

Dimensions L × W × H (mm): 6492 × 3894 × 3353

Features:

1. Three-in-one packaging unit, which is equipped with woven bag packaging, inflatable fresh-keeping heat-sealing packaging, and vacuum packaging on both sides. (Optional folding function)

2. After the equipment is put in the bag manually, it can complete the filling and sealing process automatically, and the operation is convenient and simple. The equipment has the function of dynamic adjustment in place to realize the system parameter recipe storage. When switching between different product phases, just click on the product phase to be produced on the touch screen, the device automatically adjusts to the corresponding parameters, and the customer realizes automatic production change.

3. It adopts touch screen and PLC programmable centralized control system, and the drive uses servo control with high degree of automation. Quick change of specifications, can automatically and quickly change product packaging specifications to meet the needs of flexible production.

4. The combined bag feeding machine is suitable for automatic feeding of woven bags and PE buckle hand packing bags. Double station bag feeding mechanism, no need to stop the continuous bag feeding.

5. The equipment has the function of fault self-test prompt, and the fault can be quickly eliminated according to the fault prompt. Simple and convenient maintenance.

6. The equipment adopts a closed structure design and has a safety interlocking device.

7. Quantitative packaging scale adopts separate cylinder to drive feeding, three-sensor weighing structure.8. The weighing components are located in a closed working room to reduce the corrosion and wear of the components.
