Brick Type Rice Vacuum Packing Machine 2.5KW 0.25kg To 5kg

vacuum brick bag packing machine for rice (DCS-720B)

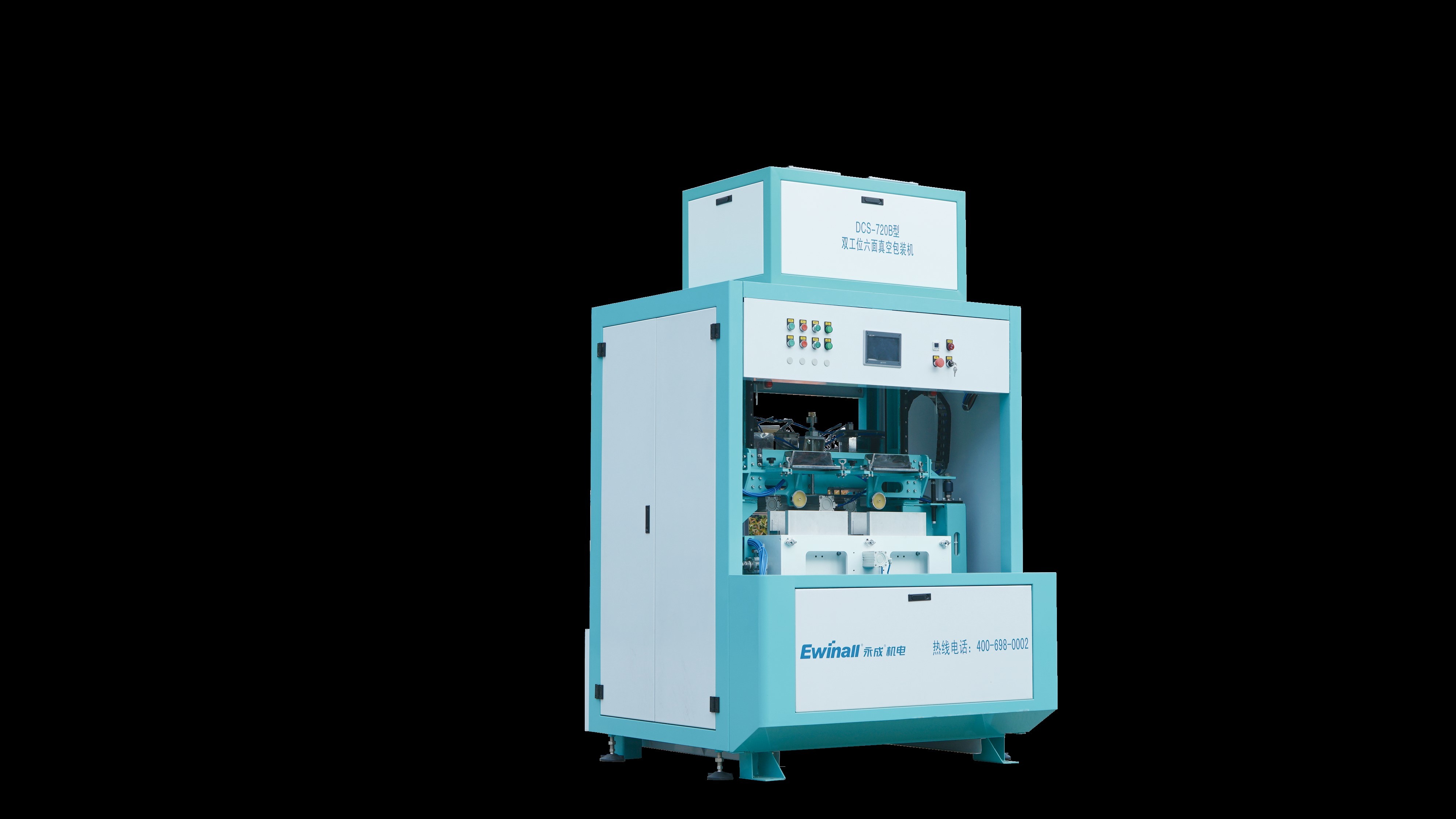

DCS-720B six sizes vacuum packing machine

A:Features

1. Advanced six-face plastic shaping and sealing technology, automatic realization of six-sided vacuum plastic packaging.

2, high efficiency double bag, double plastic vacuum mechanism, vacuum packaging work fast, to achieve a two-out effect, the output reaches 500-600 bags / hour.

3. Double scale measuring mechanism adopts high-precision alloy steel sensor, pneumatic and vibration feeding mechanism, which has fast weighing speed and high packaging precision.

4, square bagging bucket, is beneficial to open the pocket angle, beautiful appearance, and adapt to the vacuum packaging of thick and thin specifications.

5, using Chinese and English display touch screen, Siemens programmable controller, intelligent weighing instrument, easy to operate.

6. The mechanical structure is simple, reasonable, and easy to maintain. The small size of the equipment takes up little space.

B:Technical parameter:

Vacuum packaging: -0.0Mp~-0.07Mp (adjustable)

Packing range: 0.25~5kg

Packing accuracy: 2~5g

Packing speed: 500-600 bags / hour

Leveling part: up, down, left and right (six sides)

Power supply, power consumption : AC380V 50Hz 2.5KW

Gas source, gas consumption: 0.6Mpa 4M3/h

Appearance size: length 1477* width 1672* height 2573 (mm)

C:Application range:

First, it is suitable for quantitative vacuum packaging of granular materials in rice, miscellaneous grains, food and other industries.

D:Components

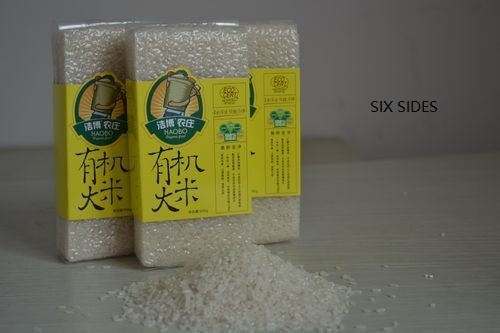

E:The finish product
