Quantitative Packing Machine DCS-50E-C,Suitable For Rice, Mung Beans, Soybeans, Feed, Plastic Particles, Etc.

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Ewinall
Certification:	ISO9001:2008,CE,CCPIT,QMS
Model Number:	DCS-50E-C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	packed into two wooden boxes
Delivery Time:	20 days
Supply Ability:	5 sets per day

Contact Now

Detailed Product Description

Weighing Range:	5KG-50KG	Conveyor:	Auto Lifting
Installation:	Easy Connection	Driven:	Electric And Air
Power:	380V,50HZ	Operation:	Touch Screen

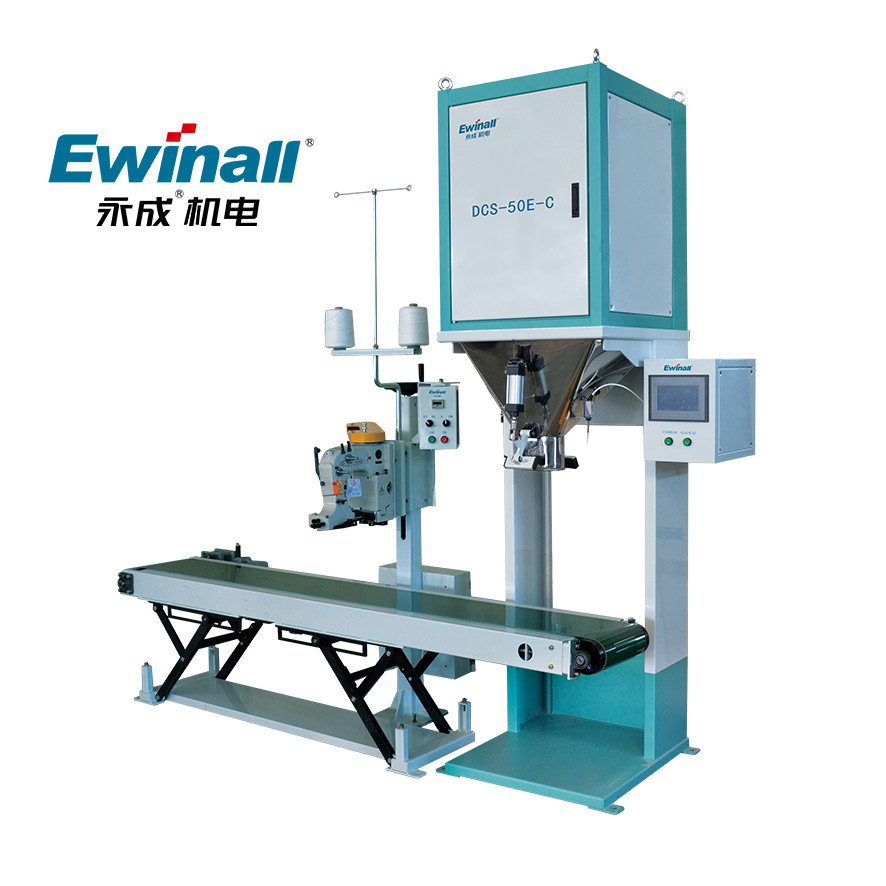

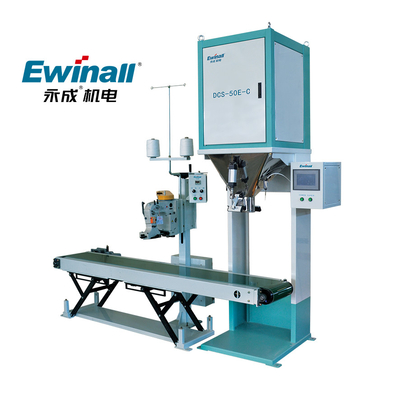

DCS-50E-C Electronic Quantitative Packing Scale Product Description:

I. Scope of Application: Suitable for automatic quantitative packaging of materials with good fluidity, such as rice, mung beans, soybeans, feed, plastic particles, etc.

Technical Parameters	Specifications
Model	DCS-50A1
Weighing Range (kg)	5-50
Weighing Speed (bags/hour)	240-500
Graduation Value (g)	2
Accuracy Class	X (0.2)
Power Consumption	1.1 kW
Air Consumption	(0.4-0.5) MPa, 16.7 L/min
Operating Environment	Relative humidity ≤90%, temperature (0-40)°C
Power Requirements	AC220V±5% 50Hz; AC380V±5% 50Hz
Overall Dimensions LWH (mm)	2740 × 864 × 2651

II. Features:

Weighing instrument + PLC dual-core control technology, with an A/D conversion frequency of 200 times per second. This ensures the strict requirements for weighing speed and weighing accuracy of the equipment.
Safety and hygiene: To ensure food safety, the feeding and weighing bucket parts are made of stainless steel, with smooth internal polishing, no dead corners, no residual materials, preventing residual rice from becoming moldy or sour, and affecting the quality of rice.
Digital intelligent automatic lifting conveyor: The conveyor can quickly switch to the appropriate position for different packaging requirements and can remember the lifting height for different varieties.
Easy to rotate: The rotating column and multi-functional sealing methods are designed for different packaging and sealing forms. It provides a convenient and user-friendly experience through the rotating switchable sewing machine and heat sealing machine. (Optional)
