| Place of Origin: | ANHUI,CHINA |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QMS,CCPIT |
| Model Number: | QZB-600M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Normal wooden case |
| Delivery Time: | 30 days |
| Supply Ability: | 1 set one day |
| Packing Range: | 25kg To 50kg | Package: | PP And PP Without Laminated |
|---|---|---|---|
| Motor: | Servo Motor | Pumb: | BUSCH |
| Electric And Air: | EATON | Capacity: | 600-800 Bags/h |
| Sewing Machine: | NEWLONG | Users: | More Than 1000 |
| Highlight: | cooked rice packing machine 800bags/ h,EATON 25 kg rice packing machine,50 kg rice packaging machine QMS |
||

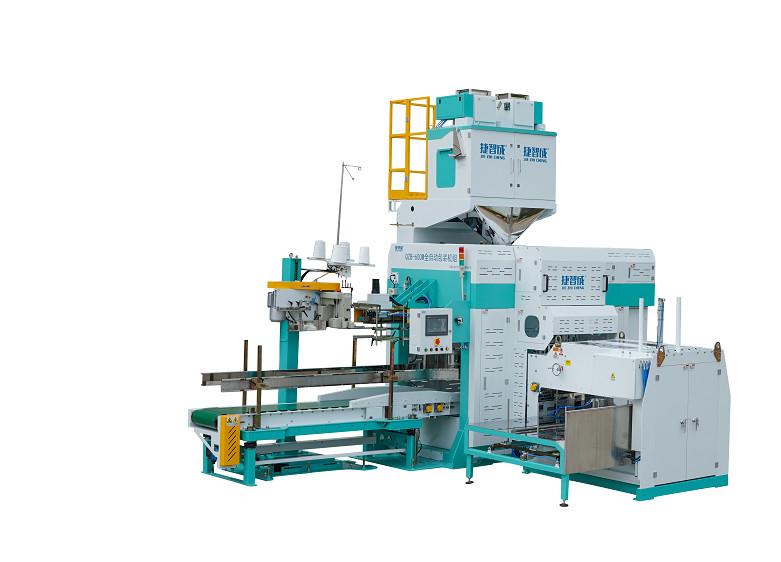

Technical parameters
| model | QZB-600M |
| Filling method | 1 time/1 bag filling |
| Bag material | Non-coated woven bag Double-sided coated woven bag |
| Packing range | (25-50) kg |
| Bag closed form | Folding, sewing machine, labeling |
| Packaging speed | (500-600) packages/hour |
| Weighing error | ±0.2%FS |
| Feeding form | Gravity feeding |
| Structure | Cylinder, servo type, supported by three sensors |
| Suitable materials | Granular materials with better flowability |
| Air pressure | (0.5～0.7) MPa |
| Air consumption | 117L/min |
| Power/power consumption | AC380V±10% 50Hz three-phase five-wire system; 5.5KW |
| Grounding form | TN-S |
| Ambient temperature | (0～40)℃ |
| environment humidity | It does not exceed 90%RH at 40°C, and greater humidity is allowed at low temperatures |
| Dimensions (mm) length × width × height |
1. After the equipment manually places the packaging bag, it can automatically complete the filling and sealing process, which is convenient and simple to operate.
2. Using touch screen and PLC programmable control system, the man-machine interface display operation is clearer, simpler and more user-friendly. The equipment has a fault self-check function, and the fault can be quickly eliminated according to the touch screen prompts.
3. The equipment is highly safe, with a closed structure and interlocking device. If a worker enters the equipment, the equipment will automatically shut down and give an alarm. After the reset is manually confirmed, the equipment can be restarted.
4. Unique patented woven bag opening technology, stable and reliable opening.
5. The transmission mechanism adopts a servo motor and gear transmission method to ensure that each action is flexible, accurate and fast.
6. The unique automatic lifting conveyor has a wide range of lifting height, accurate and stable lifting, and strong carrying capacity.
7. The weighing system adopts three sensors and a scientific and reasonable layout, so that the weighing bucket is reasonably stressed, which greatly improves the stability and anti-interference ability of the equipment.
Automatic packaging of granular materials in industries such as miscellaneous grains, seeds, rice and sugar.
