20kg 0.5MPa Rice Packing Machine High Speed Packaging Equipment 16.7L/ Min

high speed packing and weighing machine with 50FB3 model

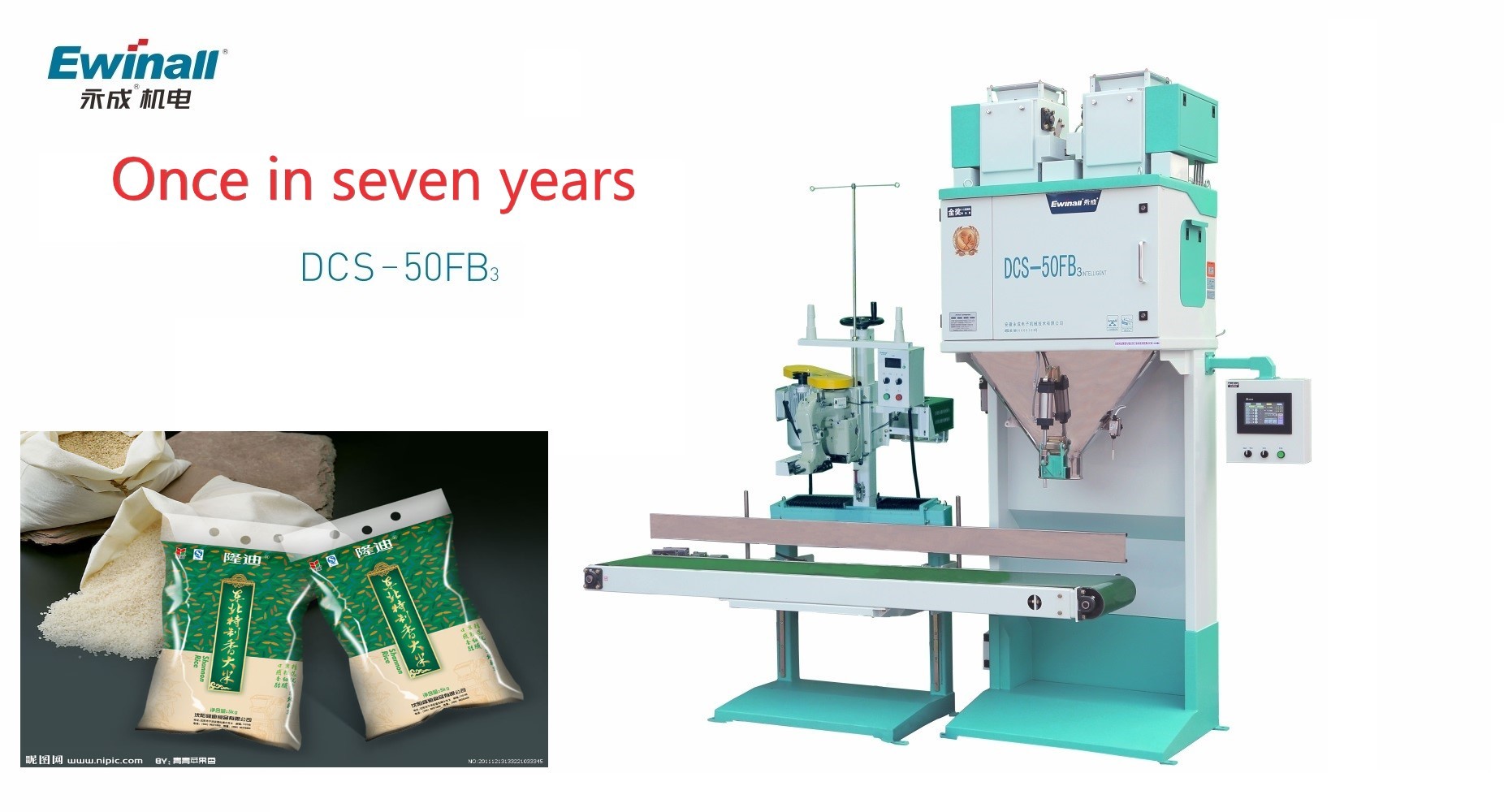

DCS-50FB3 packing scale weighing and sealing and sewing machine

A: Application:

Suitable for automatic quantitative packaging of materials with good fluidity (such as rice, sugar, feed, plastic pellets, etc.

B: Features:

1. Weighing instrument + PLC dual-core control technology, A / D conversion times up to 200 times per second. Ensures the strict requirements of the weighing speed and weighing accuracy of the equipment.

2. It adopts a three-sensor structure, the balance of the weighing cylinder is laid out, the force is reasonable, the service life of the equipment is increased, and the machine is not affected by the vibration of the workshop machine. It has higher stability and anti-interference ability.

3. Friendly human-machine interface, simple and convenient equipment operation, reducing labor intensity, improving the intelligent level of workshop operations, intelligent storage of production reports, data communication functions..

4. Safety and hygiene. In order to ensure food safety, we use stainless steel for the contact parts of the feeding and weighing barrels. The internal grinding is smooth to prevent dead corners and no residual food. It prevents the remaining rice from mildewing and rancidity affecting the rice quality.

5. To prevent rodent damage and acid corrosion, we use a closed studio. All circuits, sensors, and solenoid valves are equipped with steel wire grooves or protective iron boxes. It also completely isolated the rice and water vapor from the corrosion and wear of the cylinder and the sensor. , Extending the equipment’s trouble-free operating time.

6, external adjustment mechanism handle mechanism. With a scaled handle adjustment device, the size of the “feeding port” can be adjusted to the optimal working mode for rice with different water contents and different grain shapes to ensure the weighing effect.

7. The cylinder works frequently and has high strength. The dual-cylinder discharge mechanism developed by us has solved many problems such as the cylinder is used too frequently, which causes the original parts such as the cylinder and the solenoid valve to have a short life, many failures, and unstable performance.

8. Digital intelligent automatic lifting conveyor, the conveyor quickly switches to the appropriate position according to different packaging, and can remember the lifting height of different varieties.

9, Light and easy to rotate, rotating column, multi-functional packaging method, designed for different packaging and different sealing forms, designed sewing and heat sealing machines that can be switched by rotation, allowing users to experience a convenient and easy to use experience

10,The sliding column can be adjusted to suit a variety of operation modes, allowing you to choose ordinary sewing bags, hem sewing bags, heat-sealed sewing bags, and operating distances as you wish, showing unspeakable joy. (Optional folding and heat sealing machine).

11. Intelligent multi-point oil supply spray lubrication system for seam charter. We arrange the oil injection pipeline reasonably at dozens of key points of seam charter. Oil mist particles are injected quantitatively and regularly through program calculation to ensure the lubrication of each key moving part. , You don’t have to worry about forgetting to refuel the sewing machine. (Optional)

12. Keep it fresh. With fresh-keeping gas input function, it can meet customers’ individual needs for rice packaging. (Optional)

C: Parameter(more suitable for rice)

Remarks: 1. Test data using rice as packaging material under specific conditions.

D;Components

E:Work shop
