Weightless Flow Controller Rice Blending Machine For Grain Cement Chemical Industry

Rice Blending Machine,Weightless Flow Controller, Widely Used In Grain, Cement, Chemical Industry, Feed

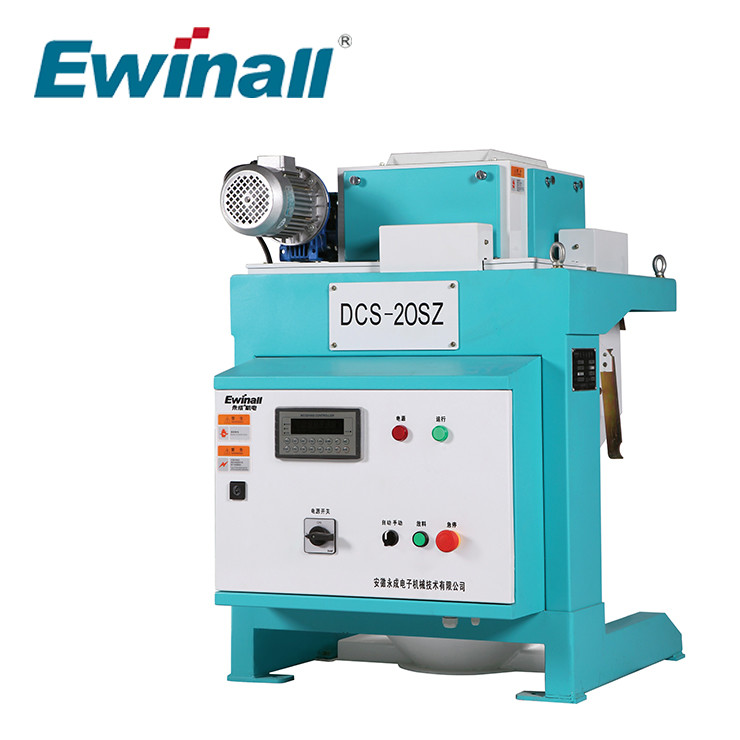

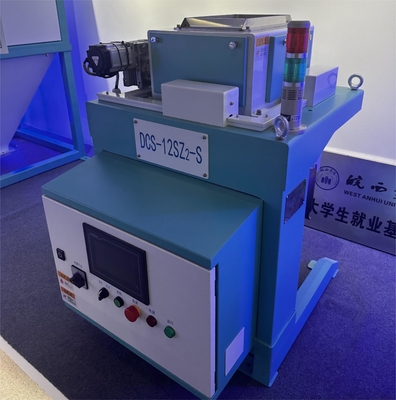

DCS-SZ2-S Series Loss of Weight Flow Controller Product Description

1. Scope of application

The loss-in-weight flow controller is a kind of weighing and batching equipment with intermittent feeding and continuous discharging. It is widely used in the pellet batching system of grain, chemical, feed and other industries.

2. Features

2.1. Weighing instrument + PLC dual-core control technology, the number of A/D conversions reaches 480 times per second. To ensure the strict requirements of the speed and precision of the equipment.

2.2. The structure of three sensors is adopted, the layout of the weighing cylinder is balanced, and the force is reasonable, which improves the service life of the equipment, and is not disturbed by the vibration of the workshop machine, and has high stability and anti-interference ability.

2.3. Friendly man-machine interface, simple and convenient equipment operation, reduce labor intensity, improve the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions.

2.4. Safety and sanitation. In order to ensure the safety of ingredients, we use stainless steel for feeding, weighing and other material contact parts. The interior is smooth and polished to eliminate dead ends and no residue.

2.5. To prevent rodent infestation and acidification corrosion, we have adopted a closed studio, and all lines, sensors, and solenoid valves have used steel wire grooves or protective iron boxes, which also isolates the corrosion and wear of the cylinder and sensors in the working environment, prolonging the life of the machine. Equipment trouble-free operating time.

2.6. The action mechanism is driven by a unique motor. It does not need an air source when working. Combined with the advanced PID algorithm to achieve extremely high control accuracy, it has high accuracy, constant dynamic flow, simple structure and high reliability.2.

2.7. The operation is simple. The operator only needs to set the target flow rate and start the automatic operation, and the equipment will directly enter the automatic operation state.

2.8. It has the functions of automatic flow statistics , printing and data communication.

2.9. It adopts intermittent feeding, continuous discharging, uniform discharging, small impact of material speed, and does not damage the integrity of materials.

2.10. If a relevant alarm is generated during automatic operation and one of the machines stops, the other online products will stop running at the same time to ensure the consistency of the material ratio .

3. Technical parameters

Remarks: 1. The test data of rice as packaging material under specific conditions.
