| Place of Origin: | Anhui,China |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QMS,CCPIT,EMS |
| Model Number: | DCS-20CB |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Normal wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Capacity: | 20Tons Per Hour | Range: | 2000kg -20000kg/h |
|---|---|---|---|
| Applicant: | Food, Cement, Chemicals, Feed | Connection: | Modbus 485 Or Others |
| OEM: | Avaliable | Controller: | JIEMAN |
| High Light: | 40W fortified rice mixing machine,grain mixing machine 20000kg/ h,grain mixing machine EMS |
||

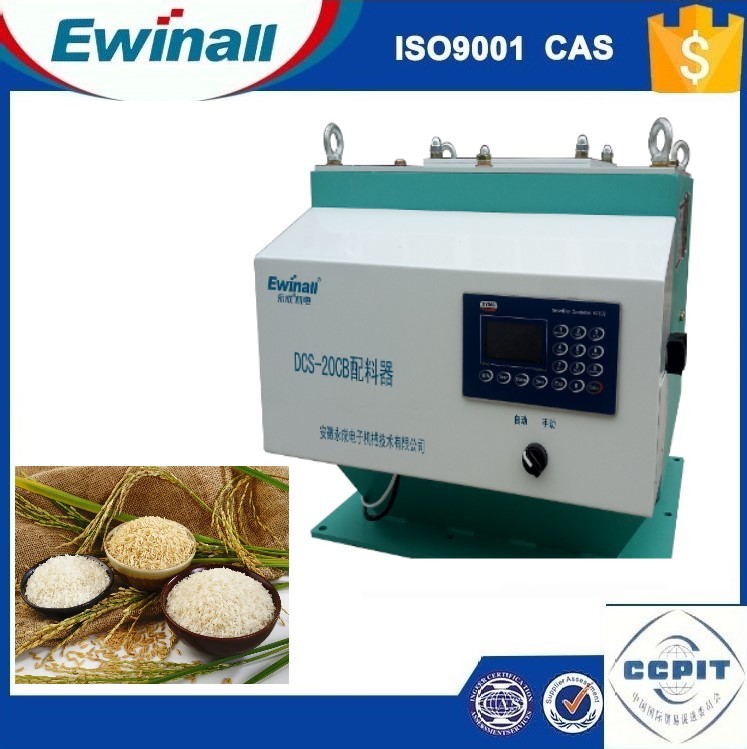

Fortified Rice Machine Blending Machine Mixture Machine
DCS-CB and SZ Series batcher and blending mixing machine to help reduce the cost
Rice,beans,and other grain mixing machine using for processing plant
Parameter:
| Model | DCS-20CB(flushing plate batcher) |
| Rated capacity | 2000～20000kg/h |
| Cumulative measurement accuracy | ±1% |
| voltage | AC 220V ±5% ,50HZ |
| Average power | 40W |
| working environment | -10℃～40℃Relative humidity <90% No condensation |
| Environmental vibration | amplitude:≤1mm ；frequency:≤25 HZ |
|
Dimension(mm) L×W×H |
608×549×470 |
Appilicant:The flushing plate batcher is suitable for the flow measurement of bulk materials. It is widely used in the batching system of grain, cement, chemical, feed and other industries.
Features:
1. Adopt internationally advanced high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate can reach 200 times/sec, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good;
2. The operation is simple, the operator only needs to set the target flow rate, turn on the automatic knob, and the equipment directly enters the automatic operation state.
3. With automatic flow statistics, printing and data communication functions.
4. The parts in contact with the material are made of stainless steel, which is corrosion resistant and prolongs the service life of the equipment.
5. After an error alarm is generated, all online devices will stop running.
6. Small size, length * width * height (608*549*470)
