| Place of Origin: | Anhui,China |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QMS,CCPIT |
| Model Number: | DCS-20CB |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Normal wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Capacity: | 20Tons Per Hour | Range: | 2000kg -20000kg/h |
|---|---|---|---|
| Applicant: | Food, Cement, Chemicals, Feed | Connection: | Modbus 485 |
| Load Cell: | Single Load Cell | OEM: | Avaliable |
| High Light: | AC220V Rice Blending Machine,Bulk Materials frk rice blending machine,anticorrosion blending machine for rice |
||
The Flushing Plate Batcher For The Flow Measurement Of Bulk Materials

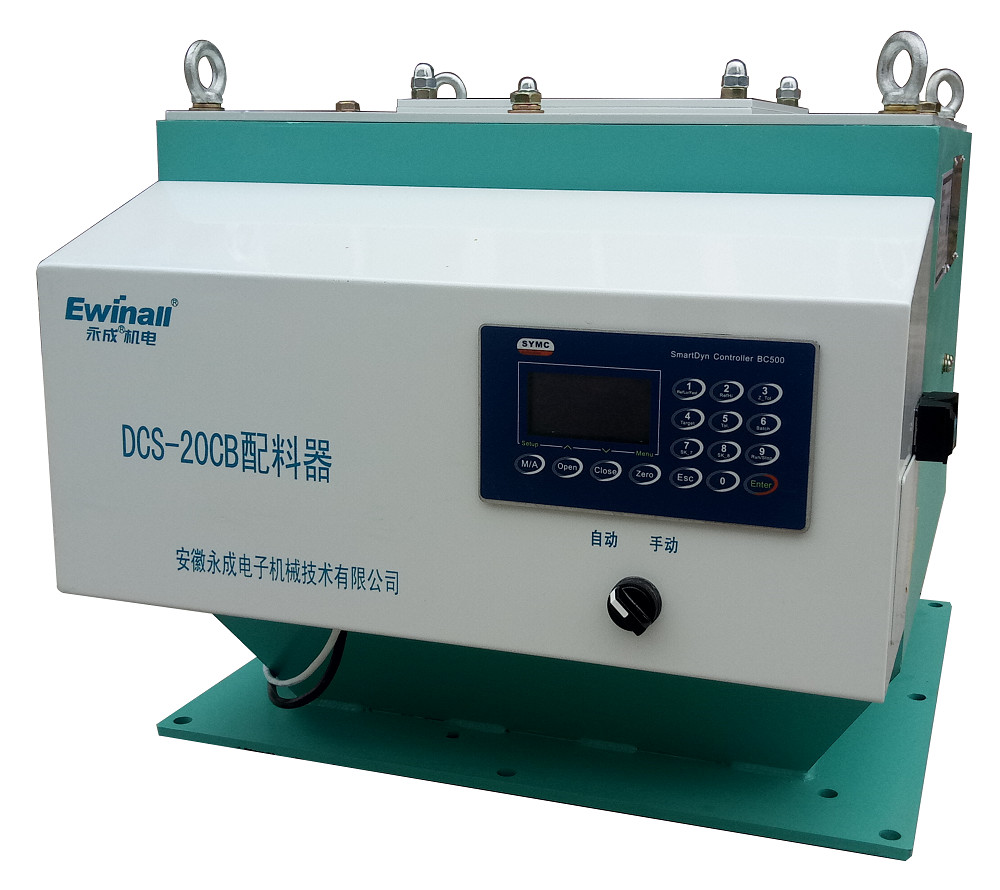

DCS-CB Series batcher machine
Appilicant:The flushing plate batcher is suitable for the flow measurement of bulk materials. It is widely used in the batching system of grain, cement, chemical, feed and other industries.
Features:
1. Adopt internationally advanced high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate can reach 200 times/sec, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good;
2. The operation is simple, the operator only needs to set the target flow rate, turn on the automatic knob, and the equipment directly enters the automatic operation state.
3. With automatic flow statistics, printing and data communication functions.
4. The parts in contact with the material are made of stainless steel, which is corrosion resistant and prolongs the service life of the equipment.
5. After an error alarm is generated, all online devices will stop running.
6. Small size, length * width * height (608*549*470)
Parameter:
| Model | DCS-20CB(flushing plate batcher) |
| Rated capacity | 2000～20000kg/h |
| Cumulative measurement accuracy | ±1% |
| voltage | AC 220V ±5% ,50HZ |
| Average power | 40W |
| working environment | -10℃～40℃Relative humidity <90% No condensation |
| Environmental vibration | amplitude:≤1mm ；frequency:≤25 HZ |
|
Dimension(mm) L×W×H |
608×549×470 |
