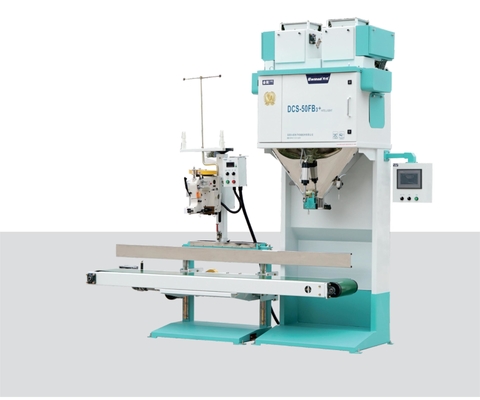

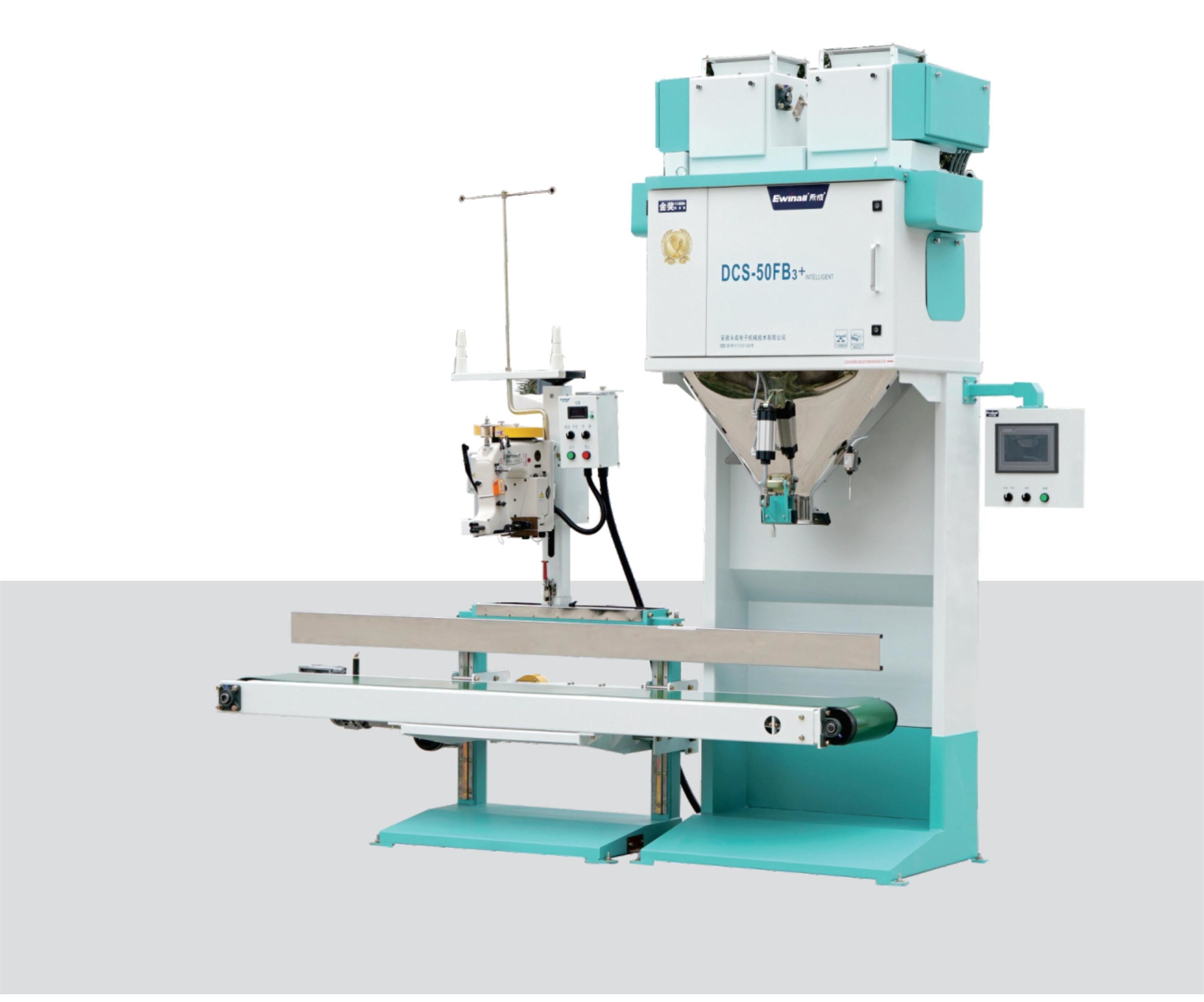

High Precision High Speed Granule Packaging Machine 5-50KG Automatic Lifting

High Precision High Speed Granule Packaging Machine 5-50KG Automatic Lifting

  • High Precision High Speed Granule Packaging Machine 5-50KG Automatic Lifting
  • High Precision High Speed Granule Packaging Machine 5-50KG Automatic Lifting
  • High Precision High Speed Granule Packaging Machine 5-50KG Automatic Lifting
High Precision High Speed Granule Packaging Machine 5-50KG Automatic Lifting
Product Details:
Place of Origin: Anhui, China
Brand Name: Ewinall
Certification: ISO9001:2008,CE,CCPIT,QMS
Model Number: DCS-50FB3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed into two wooden boxes
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets per day
Contact Now
Detailed Product Description
Weighing Range: 5kg-50kg Installation: Easy Connection
Power: 380V,50HZ Conveyor: Auto Lifting
PLC: DELTA PLC Control Operate: Touch Screen Operate
Load Cell: METLLER TOLEDO Load Ecll Driven: Electric And Air
High Light:

High Precision Granule Packaging Machine

,

High Speed Granule Packaging Machine

,

50KG Granule Packaging Machine

High-Precision, High-Speed, Granule Packaging Machine, Range 5-50KG, Automatic Lifting, Automatic Sewing Bag

High-precision, high-speed, granule packaging machine, range 2.5-50KG, automatic lifting, automatic sewing bag, rice, sugar, plastic granules, soybeans, peanuts, mung beans

1. Scope of application

Automatic quantitative packaging for materials with good fluidity (such as: soybeans, feed, rice, mung beans, sesame, plastic granules, etc.)

2. Technical parameters (applicable to rice)

Model DCS-50FB3
Weighing range (kg) 5~25
Display method touch screen
Packing speed (package/hour) 700~1080
Power supply requirements AC220V±5% 50Hz;AC380V±5% 50Hz
Accuracy class X(0.2)
Working environment relative humidity ≤ 90%, temperature (0 ~ 40) ℃
Power consumption, air consumption 1.1 kW,(0.4~0.5)MPa 16.7L/min
Division value (g) 2
Dimensions (mm)
Length×width×height
3167×1044.5×2692.5



3. Features

3.1. Weighing instrument + PLC dual-core control technology ensures the strict requirements of weighing speed and weighing accuracy of the equipment.
3.2. The human-computer interaction interface is excellent, the operation of the equipment is simple and convenient, and the intelligent level of workshop operation is improved. The production report can be stored on the equipment, and there is also a data communication function.
3.3. Using the structure of three sensors, the force on the weighing cylinder is balanced, which improves the service life of the equipment, and is not disturbed by the vibration of the workshop machine, and has high stability and anti-interference ability
3.4. We adopt a closed working room, and all lines, sensors, and solenoid valves are protected by protective boxes. The lines and electrical components are not oxidized and corroded by water vapor, which prolongs the trouble-free running time of the equipment.
3.5. It is very safe and hygienic. In order to ensure food safety, all parts in contact with materials are made of stainless steel, and the interior is polished smoothly without dead ends.
3.6. Digital intelligent automatic lifting conveyor, the conveyor has a height memory function, when the weight is adjusted, the conveyor adjusts the height accordingly.
3.7. The handle adjustment device with scale is used to adjust the size of the "feeding port" to the best working mode for rice with different water content and different grain shapes to ensure the weighing effect.
3.8. The sliding column can be adjusted, and an automatic folding machine can be added. When a single person operates, the column can be pulled closer, and when two people operate, the column can be pushed away.
3.9. The rotatable column, according to different packaging and different sealing forms, has designed a sewing machine and a heat sealing machine that can be switched by rotation
3.10. Inflatable function can be added, and this function can be selected by adding specific gas into the packaging bag (optional)
