LCD Display 50kg Bag Packing Weight Machine 15 Bags / Min Semi Automatic

LCD Display 50kg Bag Packing Weight Machine 15 Bags / Min Semi Automatic

  • LCD Display 50kg Bag Packing Weight Machine 15 Bags / Min Semi Automatic
  • LCD Display 50kg Bag Packing Weight Machine 15 Bags / Min Semi Automatic
LCD Display 50kg Bag Packing Weight Machine 15 Bags / Min Semi Automatic
Product Details:
Place of Origin: Anhui, China
Brand Name: Ewinall
Certification: CE,ISO,QMS,CCPIT and so on
Model Number: DCS-50FE2-BZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed export standard wooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets per day
Contact Now
Detailed Product Description
Type: Big Scale Display Type: LCD
Accuracy: 0.1KG Automatic Grade: Semi-Automatic
Driven Type: Electric And Air Packing Speed: 10-15 Bags/min
Warranty: One Year Range: 50kg To 100kg
Load Cell: METLLER TOLEDO Load Cell Control: PLC And Controller
High Light:

LCD Display 50kg bag packing machine

,

packing weight machine 15 Bags / Min

,

Semi Automatic weight machine 100kg

Rice Packing Machine Rice Packer With LED Display

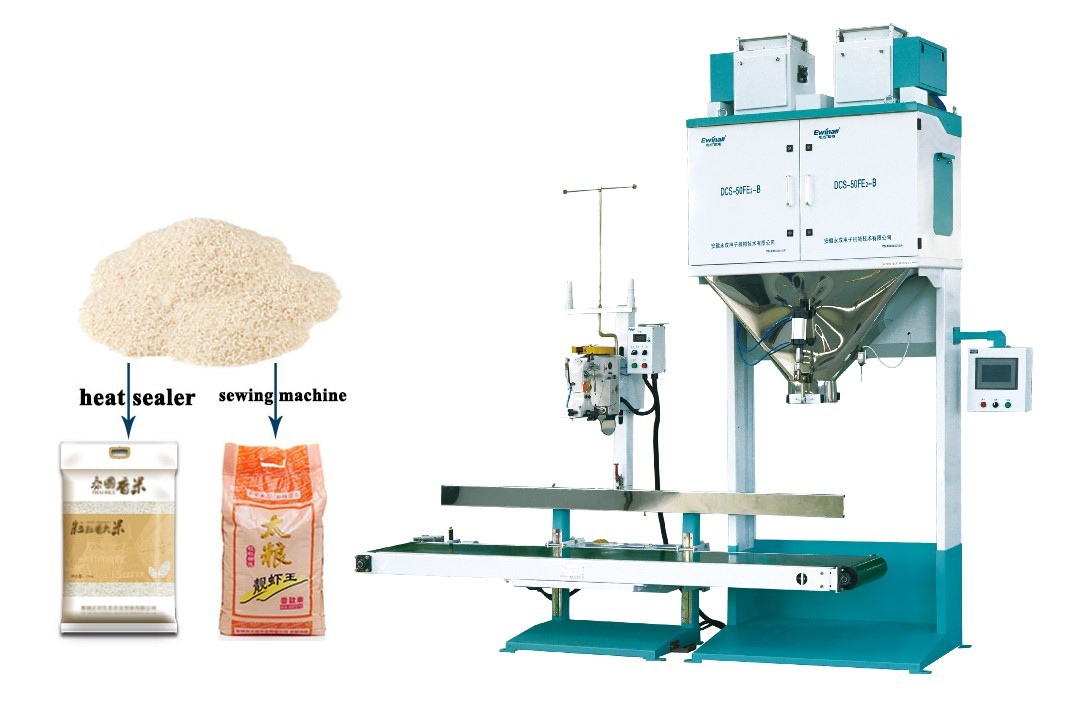

DCS-50FE2-B intelligent packing scale with sewing and sealing machine in animal feeds factory





Applicant:

Quantitative packaging of granular materials in industries such as rice, seeds, feed, chemical raw materials, sugar, and peanuts.





Features:

1. Adopt international advanced high-precision weighing sensor and batching controller, the controller adopts high-performance A/D converter, the conversion rate is up to 480 times per second, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good.

2. Specially designed three-sensor support. This structure eliminates the problems of force point deviation and signal distortion caused by uneven distribution of materials in the weighing hopper.

3. The specially designed multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the scale packaging fast and accurate. The independent dual-cylinder feeding overcomes the troubled quantitative packaging equipment for many years. The difficult point of the sealing ring is easy to wear.

4. The specially designed sensor and cylinder airtight studio completely isolates the corrosion and abrasion of the cylinder and sensor by rice flour, dust, and water vapor, greatly prolonging the trouble-free operation time of the equipment.

5.The Chinese touch screen operation interface makes the operation interface more intuitive and user-friendly, and the function operation is clear at a glance, reducing the chance of wrong operation.

6. Equipped with manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials.

7 Automatic bag sewing and automatic thread cutting function.

8. Conveyor automatic lifting technology, the core components adopt international famous brands, advanced functions, stable and reliable.

9. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.

10. The parts in contact with the material are made of stainless steel, which is corrosion resistant and prolongs the service life of the equipment.



Parameter

Model DCS-50FE2-B
Display Touch screen display and control
Weighing range(kg) 10~50
Division value(g) 5
Accurancy X(0.2)
Capacity(bags/hour) 500~720
Consumption 1.3kw,0.4-0.5Mpa Air16.7L/min
Power and environment Relative humidity≦90%,AC380V±10% 50HZ

Dimension(mm)

L×W×H

3520×1060×3211


Note: Weighing speed refers to the data when rice is used as packaging material under specified conditions.







The components



Spare parts brand Note
Touch screen Kunlun tongtai
Weighing controller GM
PLC OMRON(Japan)
Load cell METLLER TOLEDO(USA)
Solenoid valve Mindman
Sensor SICK(Germany)
Proximity switch OMRON(Japan)
Air parts AIRTAC
