| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE |
| Model Number: | DCS-50E20Z |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,999.00 - $5,900.00/Sets |
| Packaging Details: | Packed in wooden box |
| Delivery Time: | 20 days |
| Supply Ability: | 5 sets per day |
| Type: | Other, Other | Applicable Industries: | Peanut |
|---|---|---|---|
| Condition: | New | Packaging Type: | Case |
| Packaging Material: | Plastic, Wood, Plywood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | AC380V±10% 50hz |
| Power: | 1.1KW | Weight: | 900kg |
| Dimension(L*W*H): | 3150*1220*3365 | Color: | White And Blue |
| Function: | Filling,Sealing,Weighing And Packing | Port: | Any Main Port |
| High Light: | Ewinall automatic packing scale,Packing Scale Machine 1.1KW,Plywood 10 kg packing machine |
||

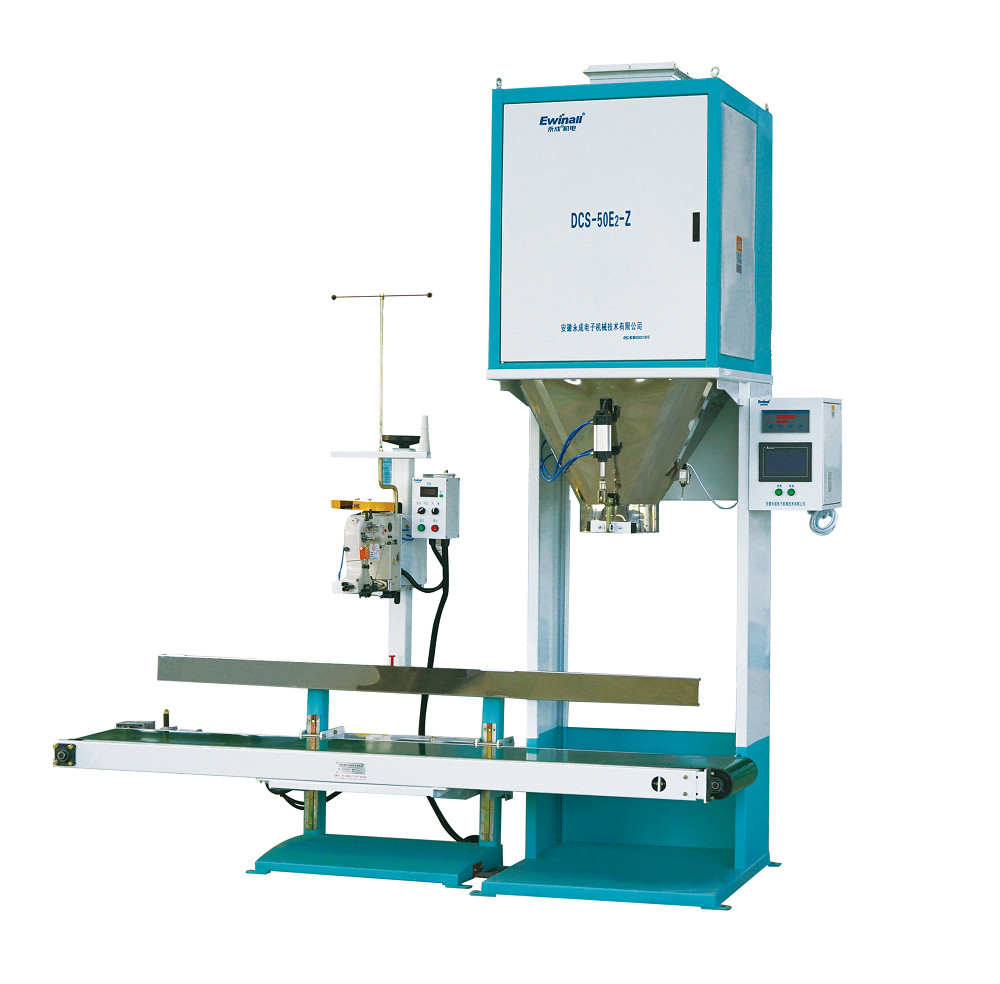

Peanut packing scale with conveyor and sewing machine
DCS-50E2-Z Product Description of Intelligent Electronic Quantitative Packaging Scale
Application
It is suitable for quantitative packaging of peanuts, peanuts and other granular materials with good flow properties.
Features
1. The two-sensor mechanism and reasonable layout enable the weighing bucket to receive reasonable force, which greatly improves the stability and anti-interference ability of the equipment;
2. Adopt high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate can reach 200 times/sec, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good;
3. The multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the scale's packaging speed and accuracy high;
4. The electromagnetic vibrator is used for ingredients, which greatly improves the accuracy of the equipment's ingredients;
5. Friendly man-machine interface, equipment operation is simple and convenient, reducing labor intensity, improving the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions;
6. There is a manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials;
7. Automatic bag sewing and automatic thread cutting function;
8. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.
Parameter
| Model | DCS-50E2-Z |
| Display method | Intelligent instrument display and control |
| Range(kg) | 10~50(peanut)；10~30(peanut with shell) |
| Division(g) | 10 |
| Accurancy | X(0.2) |
| capacity(bags/h) | 200～240 |
| Consumption | 1.1kW,0.4-0.5Mpa Air 16.7L/min |
| Power and environment | Humidity≤90%,4N-AC380V±10% 50HZ |
|
Size(mm) L×W×H |
3160×1155×3365 |
Remarks: Weighing speed refers to the data when peanuts and peanuts are used as packaging materials under specified conditions.
Components
| NAME | Brand | Note |
| Weighing controller | GM | |
| Touch screen | DELTA | |
| PLC | DELTA | |
| Load cell | CELTRON | |
| Solenoid valve | MINDMAN | |
| Sensor | SICK(Germany) | |
| Proximity switch | OMRON(JAPAN) | |
| Cylinder | Airtac | |
| Air part | Airtac |
