PP Bag Automatic Rice Packing Machine Double Side Laminated 600 - 900 Bags/H

PP Bag Automatic Rice Packing Machine Double Side Laminated 600 - 900 Bags/H

PP Bag Automatic Rice Packing Machine Double Side Laminated 600 - 900 Bags/H
PP Bag Automatic Rice Packing Machine Double Side Laminated 600 - 900 Bags/H
PP Bag Automatic Rice Packing Machine Double Side Laminated 600 - 900 Bags/H
Product Details:
Place of Origin: Luan, Anhui, China
Brand Name: Ewinall
Certification: CE
Model Number: QZB-900Z
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wood
Delivery Time: 30
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Automatic Packing Scale Use: Rice, Wheat, Sesame, Flour, Mill, Corn, Barley, Rye, Oats, Bean, Nut, Power, Peanut
Electric Voltage: 380V Power: 1.1KW
Function: Automatic Weighing, Automatic Sewing, Automatic Thread Trimming. Packing Speed: 600 - 900 Bags
Our Advantage: Fast Speed, Accurate Weight, Local Dealer And After-sales Service Accessories: Bag Sewing Machine, Conveyor
Best Selling Country: Thailand, Indonesia, Pakistan Bangladesh, Philippines, Vietnam, Cambodia, Myanmar, Pakistan, Turkey, Bangladesh. Warranty: 1 Year+
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Overseas Service Center Available
High Light:

700 Bags/H Automatic Rice Packing Machine

,

900 Bags/H Rice Vacuum Packing Machine

,

PP Bag Rice Packing Machine

Product description

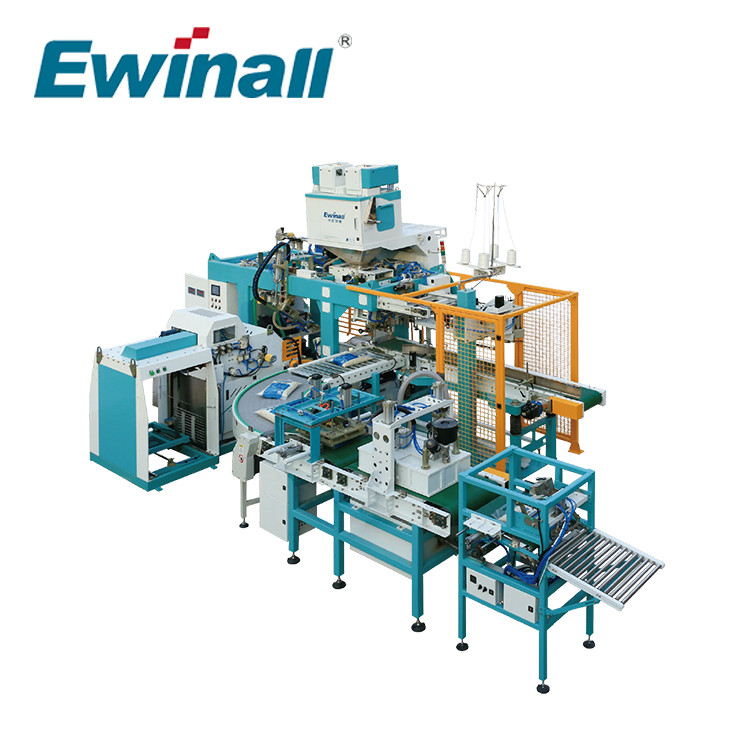

Ewinall QZB-900Z Automatic Rice Packing Machine Vacuum Double Side Laminated PP Woven Bag 600 - 900 Bags Per Hour 2023

1. Scope of application

Automatic packaging of granular materials in rice, seeds, miscellaneous grains, sugar and other industries.

2. Technical parameters

model QZB-900Z
Filling method 1 time/1 bag filling
Bag material aM side woven bag (double-sided film) b. Flat woven bag (double-sided film) c. Portable PE bag
Packing range (2.5-25) kg
Bag closed form a. Sewing machine b. Sewing machine c. Heat sealing
Packaging speed (600-900) bags/hour
Weighing error ±0.1%FS
Feeding form Gravity feeding
Structure Cylinder, servo type, supported by three sensors
Suitable materials Granular materials with better flowability
Air pressure (0.5~0.7) MPa
Air consumption Air consumption for bag filling work 100L/min
Air consumption for vacuum work 133L/min
Power/power consumption AC380V±10% 50Hz three-phase five-wire system;
inflatable packaging work 9KW
plastic vacuum packaging work 12KW
Grounding form TN-S
Ambient temperature (0~40)℃
environment humidity It does not exceed 90%RH at 40°C,
and greater humidity is allowed at low temperatures
Dimensions (mm)
length × width × height
6492×3894×3353

3. Features

1. Three-in-one packaging unit, with fully automatic packaging unit integrating woven bag packaging, inflatable fresh-keeping heat-sealing packaging, and double-sided vacuum packaging. (Optional folding function)

2. When switching between different product phases, you only need to click on the product phase to be produced on the touch screen, the equipment will automatically adjust to the corresponding parameters, and the customer will automatically switch production.

3. It adopts a touch screen, PLC programmable centralized control system, and the transmission uses servo control, which is highly automated.

4. The combined bag feeding machine is suitable for automatic bag feeding of woven bags and PE buckle hand packaging bags. Double-station bag feeding mechanism, no need to stop the machine for continuous bag feeding.

5. The equipment has a fault self-checking prompt function, and the fault can be quickly eliminated according to the fault prompt. Maintenance is simple and convenient.

6. The equipment adopts a closed structure design and has a safety interlocking device.

7. The quantitative packaging scale adopts a single cylinder to drive the feeding, and a three-sensor weighing structure.

8. Weighing components are all in a closed working room to reduce corrosion and wear of components.
