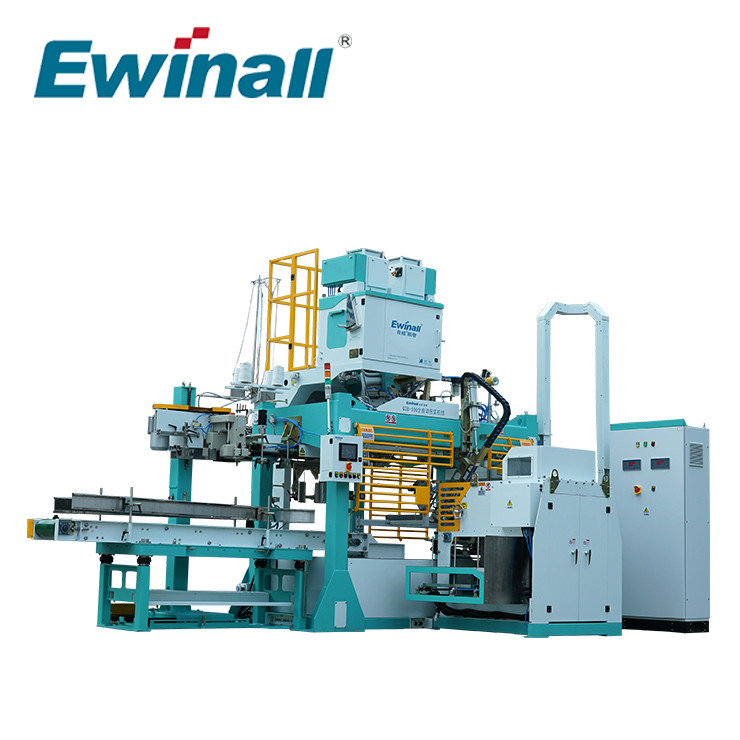

QZB-900L Ewinall High Tech Automatic Rice Packing Machine Rice Mill Fully Auto Packaging Scales 2023
1. Scope of application
Automatic packaging of granular materials in rice, seeds, miscellaneous grains, sugar and other industries.
2. Technical parameters
| model |
QZB-900L |
| Filling method |
1 time/1 bag filling |
| Bag material |
a. M-side woven bag (double-sided film)
b. Flat woven bag (coated on both sides) |
| Packing range |
(5-25) kg |
| Bag closed form |
a. b. Sewing machine |
| Packaging speed |
(600-900) bags/hour |
| Weighing error |
±0.1%FS |
| Feeding form |
Gravity feeding |
| Structure |
Cylinder, servo type, supported by three sensors |
| Suitable materials |
Granular materials with better flowability |
| Air pressure |
(0.5～0.7) MPa |
| Air consumption |
100L/min |
| Power/power consumption |
AC380V±10% 50Hz three-phase five-wire system; 9KW |
| Grounding form |
TN-S |
| Ambient temperature |
(0～40)℃ |
| environment humidity |
It does not exceed 90%RH at 40°C,
and greater humidity is allowed at low temperatures |
Dimensions (mm)
length × width × height |
5401×3014×3355 |
3. Features
1. After the equipment manually puts the bag, it can realize automatic bag feeding, automatic bag loading, automatic bag opening, automatic detection, automatic weighing, automatic filling, automatic sealing function, with fault alarm, safety protection and other functional characteristics, and high degree of automation .
2. When switching between different product phases, you only need to click on the product phase to be produced on the touch screen, the equipment will automatically adjust to the corresponding parameters, and the customer will automatically switch production.
3. Using touch screen and PLC programmable control system, the man-machine interface display operation is clearer and simpler, with high degree of automation and more humanization.
4. Unique bag opening technology with multiple suction cups, high success rate of bag opening.
5. The unique automatic lifting conveyor adopts single-point drive four-point vertical lifting, wide lifting height range, precise and stable lifting, and strong carrying capacity.
6. The industry's unique woven bag feeding machine is stable and reliable.
7. High safety, with closed structure and interlocking device.
8. The equipment has a fault self-check function, and the fault can be quickly eliminated according to the touch screen prompts.
9. Adopting domestic and foreign advanced metering structure, specially designed three sensors, scientific and reasonable layout, make the weighing bucket reasonable force, and greatly improve the stability and anti-interference ability of the equipment.
