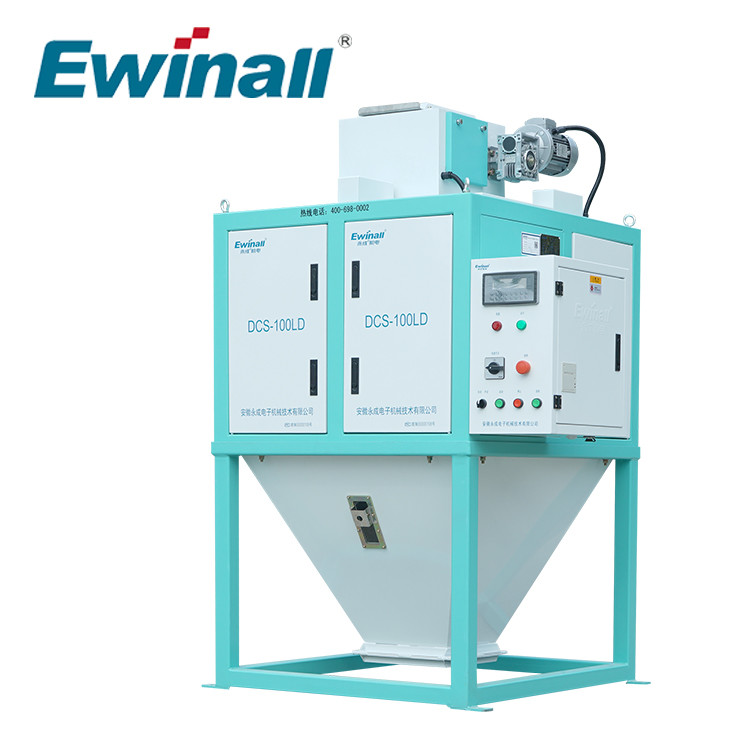

DCS-100LD Ewinall Flow Scale Rice Mill Flow Weighting Fast Speed

DCS-100LD Ewinall Flow Scale Rice Mill Flow Weighting Fast Speed

  • DCS-100LD Ewinall Flow Scale Rice Mill Flow Weighting Fast Speed
DCS-100LD Ewinall Flow Scale Rice Mill Flow Weighting Fast Speed
Product Details:
Place of Origin: Luan, Anhui, China
Brand Name: Ewinall
Certification: CE
Model Number: DCS-100LD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wood
Delivery Time: 30
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Flow Scale Use: Rice, Wheat, Sesame, Flour, Mill, Corn, Barley, Rye, Oats, Bean, Nut, Power, Peanut
Electric Voltage: 380V Power: 0.9-1.1KW
Weighing Range: 20Tons-100Tons Our Advantage: Fast Speed, Accurate Weight, Local Dealer And After-sales Service
Best Selling Country: Thailand, Indonesia, Pakistan Bangladesh, Philippines, Vietnam, Cambodia, Myanmar, Pakistan, Turkey, Bangladesh. Warranty: 1 Year+
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Overseas Service Center Available
High Light:

380V Flow Scale

,

Rice Mill Flow Scale

,

DCS-100LD Ewinall Flow Scale

DCS-100LD Ewinall Flow Scale Rice Mill Flow Weighting Machine Grain Paddy Discharge Volume Of Flow

1. Scope of application

It is suitable for the measurement of production materials such as grain processing, chemical enterprises, grain depots, and ports.



2. Technical parameters

Model specification DCS-50LD DCS-100LD DCS-200LD DCS-300LD DCS-400LD
Display method Intelligent instrument display and control Intelligent instrument display and control Intelligent instrument display and control Intelligent instrument display and control Intelligent instrument display and control
Weighing Range(Tons/h)
≤20(rice)
≤40(rice)
≤60(rice)
≤80(rice)
≤100(rice)
Graduation value (g) 10 10 20 20 50
Weighing error ±0.2%FS
Measuring capacity (kg/h) ≤20000 (rice) ≤40000 (rice) ≤60000 (rice) ≤80000 (rice) ≤100000 (rice)
Power consumption 0.9kw 1.1kw
Working environment power supply Relative humidity≦90%, 4N-AC380V±10% 50HZ
Dimensions (mm)
length × width × height		 1031×1130×1769 1146×1270×1911 1320×1400×2856 1520×1570×2926 1670×1944×3323

Remarks: The measurement capacity refers to the data when rice materials are used under specified conditions.

3. Features

1. The action mechanism is driven by a unique motor, no working air source is required.

2. It is equipped with manual and automatic control modes, which can control the unwinding and feeding mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials. After the "target value" setting is confirmed, the operator only needs to start the "auto" button, and the flow scale will immediately enter the continuous "metering and discharging" operation automatically.

3. It has the functions of automatic statistics, printing and data communication of output.

4. It has the function of automatic drop correction and over-tolerance alarm.
