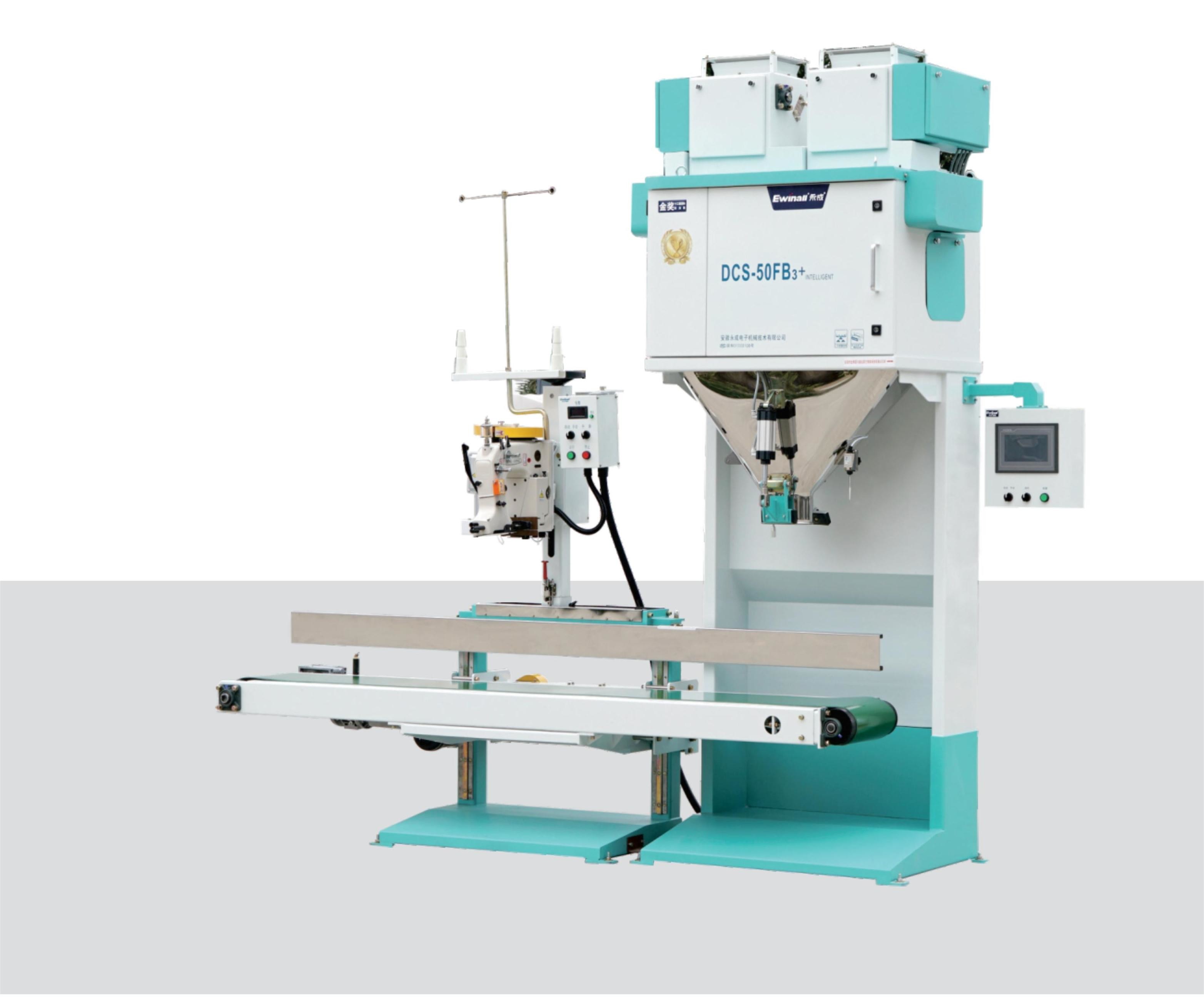

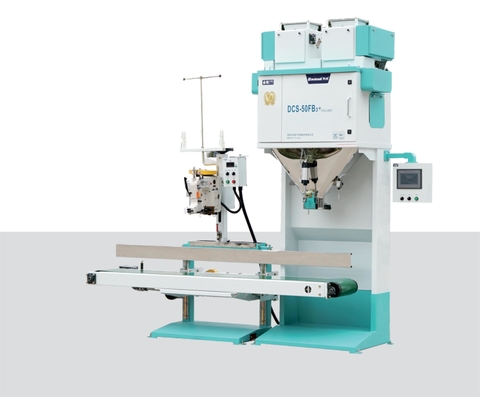

Peanuts Plastic Pellets Rice Packing Machine 2.5 - 50KG Touch Screen Operation

Peanuts Plastic Pellets Rice Packing Machine 2.5 - 50KG Touch Screen Operation

  • Peanuts Plastic Pellets Rice Packing Machine 2.5 - 50KG Touch Screen Operation
  • Peanuts Plastic Pellets Rice Packing Machine 2.5 - 50KG Touch Screen Operation
Peanuts Plastic Pellets Rice Packing Machine 2.5 - 50KG Touch Screen Operation
Product Details:
Place of Origin: Anhui, China
Brand Name: Ewinall
Certification: ISO9001:2008,CE,CCPIT,QMS
Model Number: DCS-50FB3+
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed into two wooden boxes
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets per day
Contact Now
Detailed Product Description
Weighing Range: 2.5kg-50kg Load Cell: METLLER TOLEDO Load Ecll
Conveyor: Auto Lifting PLC: DELTA PLC Control
Operate: Touch Screen Operate Installation: Easy Connection
Driven: Electric And Air Power: 380V,50HZ
High Light:

Auto Lifting Rice Packing Machine

,

Rice Packing Machine 2.5KG

,

Touch Screen Rice Packing Machine

Rice,Peanuts, Feed, Nuts, Plastic Pellets, Etc. 2.5-50KG,Touch Screen Operationhigh Precision, High Speed



1. Scope of application
It is used for automatic quantitative packaging of materials with good fluidity (such as: rice, feed, plastic granules, etc.).

2. Technical parameters (applicable to rice)

Model DCS-50FB3+
Weighing range (kg) 2.5~25
Display method touch screen
Packing speed (package/hour) 700~1080
Division value (g) 2
Accuracy class X(0.2)
Power consumption, air consumption 1.1 kW,(0.4~0.5)MPa 16.7L/min
Working environment relative humidity ≤ 90%, temperature (0 ~ 40) ℃
Power supply requirements AC220V±5% 50Hz;AC380V±5% 50Hz
Dimensions (mm)
Length×width×height
3167×1044.5×2692.5



3. Features
a. Weighing instrument + PLC dual-core control technology, the number of A/D conversions reaches 480 times per second. It ensures the strict requirements of the weighing speed and weighing accuracy of the equipment.
b. The structure of three sensors is adopted, the layout of the weighing cylinder is balanced, and the force is reasonable, which improves the service life of the equipment, and is not disturbed by the vibration of the workshop machine, and has high stability and anti-interference ability.
c. Friendly man-machine interface, simple and convenient equipment operation, reduce labor intensity, improve the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions.
d. Safety and sanitation. In order to ensure food safety, we use stainless steel for feeding, weighing barrels and other material contact parts. The interior is polished smooth to eliminate dead ends and no residual materials, preventing the remaining rice from mildew and rancidity affecting the quality of rice.
e. To eliminate rodent infestation and acidification corrosion, we have adopted a closed studio, all lines, sensors, and solenoid valves are equipped with steel wire grooves or protective iron boxes, which also isolate the corrosion and wear of rice flour and water vapor on the cylinder and sensors. The trouble-free running time of the equipment is extended.
f. External adjustment mechanism handle mechanism. The scaled handle adjustment device is used to adjust the size of the "feeding port" to the best working mode for rice with different water content and different grain shapes to ensure the weighing effect.
g. The cylinder works frequently and has high strength. The double-cylinder discharge mechanism developed by us solves many problems such as the high frequency of use of the cylinder, the short life of the cylinder, the solenoid valve and other components, many faults, and unstable performance.
h. Digital intelligent automatic lifting conveyor, the conveyor can quickly switch to the appropriate position according to different packages, and the lifting height of different varieties can be memorized.
i. Light and easy to turn, rotating column, multi-functional sealing method, according to different packaging and different sealing forms, a sewing machine and a heat sealing machine that can be switched by rotating are designed, so that users can feel the convenient and easy-to-use experience.
j. The sliding column can be adjusted, suitable for a variety of operation modes, allowing you to make ordinary bag sewing, hemming bag sewing, heat sealing bag sewing, and operating distance as you like, showing unspeakable joy. (Optional folding and heat sealing machine)
k. The intelligent multi-point oil supply spray lubrication system of the sewing machine, we reasonably arrange the oil injection pipelines at more than a dozen key points of the sewing machine, and the oil mist particles are injected regularly and quantitatively through the calculation of the program to ensure the lubrication of each key moving part , you don't have to worry about forgetting to refuel the bag sewing machine. (optional)
m. Keep the freshness firmly locked. It has fresh-keeping gas input function to meet customers' personalized needs for rice packaging. (optional)
