| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS,EMS,QEMS |
| Model Number: | DCS-50E1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Packed in wooden box |
| Delivery Time: | 20 days |
| Supply Ability: | 5 sets per day |
| Applicable Industries: | Food & Beverage Factory | Function: | Weighing And Sealing,stitiching |
|---|---|---|---|
| Packaging Material: | PP And PE | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric And Air | Voltage: | Follow To Custormer |
| Warranty: | 1 Year, 12 Months | Control: | PLC |
| High Light: | 0.4MPa Packing Scale Machine,semi automatic granule filling machine pe,granule pouch packing machine QEMS |
||
50kg Granules Packing Machine Rice and beans Packing Equipment

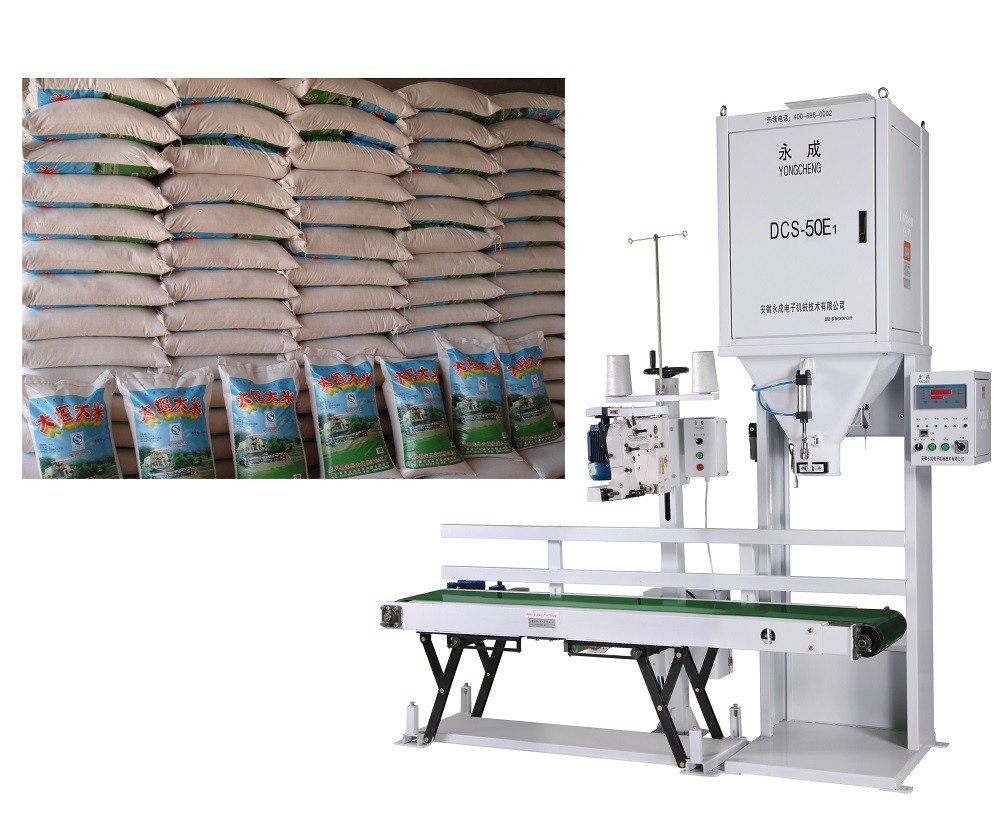

DCS-50E1 the primary granular packing machine
A:Appilicant
Suitable for automatic quantitative packaging of materials with good fluidity (such as: rice, white sugar, feed, plastic pellets, etc.)
B:Features
1. Weighing instrument + PLC dual-core control technology, A/D conversion times reach 200 times per second. It ensures the strict requirements of the weighing speed and weighing accuracy of the equipment.
2. Safety and hygiene. In order to ensure food safety, we use stainless steel for the feeding, weighing barrels and other material contact parts, and the interior is polished smoothly to prevent dead corners and no food residues to prevent residual rice from mildew and rancidity that affects the quality of rice.
3. To prevent rodent damage and acid corrosion, we have adopted a closed studio. All lines, sensors, and solenoid valves are equipped with steel wire troughs or protective iron boxes, which also isolate the corrosion and wear of rice flour and water vapor on the cylinder and sensors. Extend the trouble-free operation time of the equipment.
4. Digital intelligent automatic lifting conveyor, the conveyor can quickly switch to the appropriate position according to different packaging, and the lifting height of different varieties can be memorized.
5. Light and easy to turn, rotating column, multi-functional packaging method, for different packaging and different sealing forms, the sewing machine and heat sealing machine that can be switched by rotation are designed to allow users to feel a convenient and easy-to-use experience. (Optional)
C:Technical
| Model | DCS-50E1 |
| Range (kg) | 10-50 |
| Capacity (bags/h) | 180-450 |
| Division (g) | 10 |
| Accuracy | X(0.2) |
| Consumption | 1.1kW,0.4-0.5MPa 16.7L/min |
| Environment and power | Humidity≤90%,4N-AC380V±10% 50HZ |
|
dimension(mm)L×W×H
|
2740×864×2651 |
D:Components
| Name | Brand | Note |
| Weighing controller | GM | |
| PLC | DELTA | |
| Load cell | HBM | |
| Solenoid valve | MINDMAN | |
| Proximity switch | OMRON (JAPAN) | |
| Sensor | SICK(Germany) | |
| Cylinder | AIRTAC | |
| Air filter conditioning combination | AIRTAC |
