| Place of Origin: | Tokyo,Japan |
| Brand Name: | FUJI |
| Certification: | All kinds of Certification |
| Model Number: | EC-121 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Capacity: | ≤1000 | Working Weight: | 160kg |
|---|---|---|---|
| Machine Weight: | 750kg | Control: | PLC |
| Air Consumption: | 100m³/h | Driven Type: | Electric And Air |
| Voltage: | 380V,50HZ | Port: | Any Main Port |
| High Light: | 4 axis Robotic Bag Palletizer,4KVA robotic pail palletizer,bag palletizer machine 1000 bags / hour |
||
Robotic Palletizer Developed By The Palletizer Maker
industrial robot palletizing robot

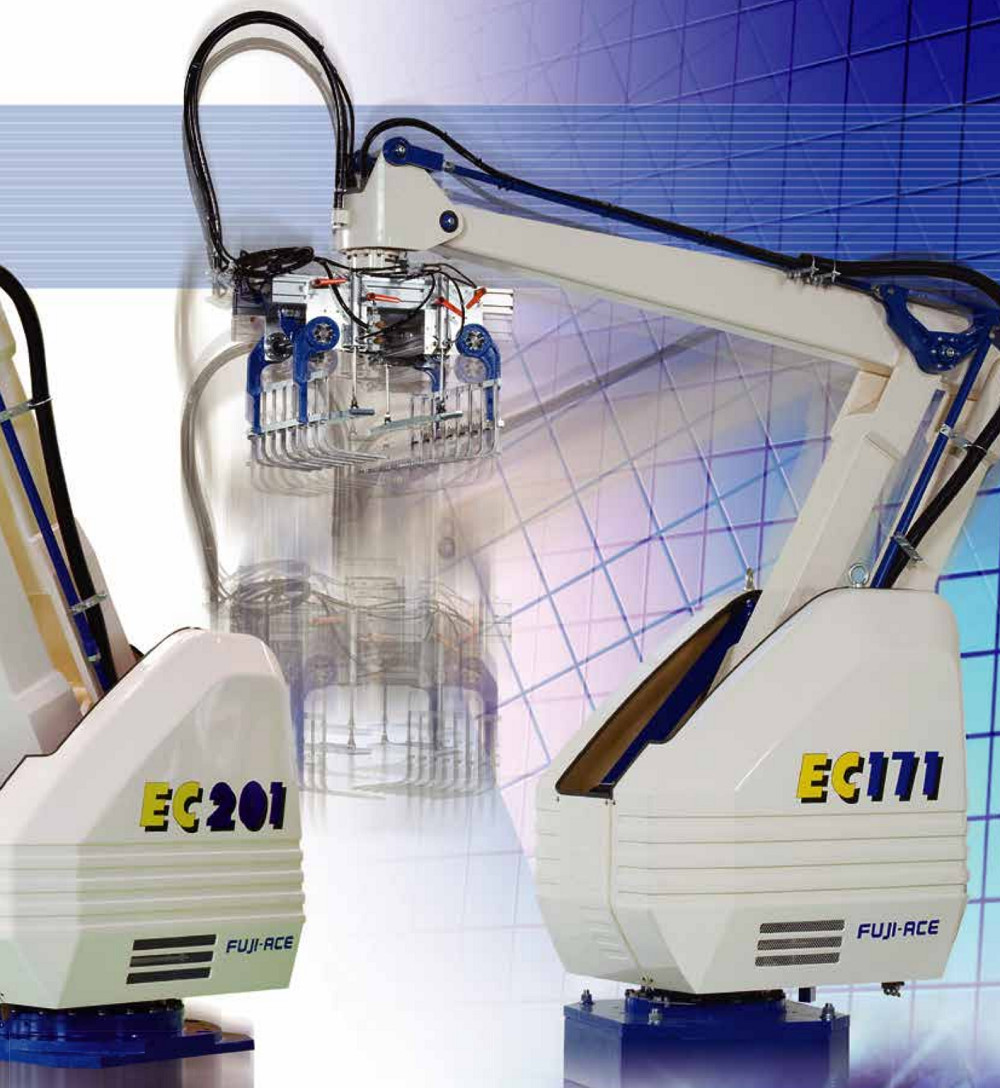

EC-171 technical description
The EC-171 palletizing robot produced by Fuji Conveyor Industry Co., Ltd. (FUJI YUSOKI KOGYO CO., LTD.) is one of the most advanced palletizers in the world. It has simple operation, accurate positioning, high efficiency, energy saving, and maintenance. Convenience, low failure rate, fast palletizing speed, etc., can stack bags, boxes, barrels and other products.
The characteristics of Fuji Robots that are different from other robots are as follows:
1 In addition to the teach pendant, a touch screen is installed on the control cabinet, so that the customer can arbitrarily change the product size, palletizing mode, height and new products according to the actual production situation. In addition, when a problem or failure occurs, the touch screen can automatically display the fault location, cause and solution, so that customers can judge or deal with it by themselves to ensure the smooth production of the production line.
2 The main spare parts of the manipulator are stocked in China and can be supplied at any time.
3 The manipulator has a return to origin function. When replacing the motor and other accessories, the customer does not need to wait for the professional technicians to arrive at the site to do the original reset adjustment work, and the automatic reset can be completed in only 30 seconds. Significantly save costs and time, and improve the automation of the production line.
2. The specifications of the EC-171 robot are as follows:
Model: EC-171
Capacity: ≤1000 bags/hour
Working weight: 160kg Body weight: 750kg
Control method: programmable controller (PLC)
Total power consumption: 4KVA
Total air consumption: 100NL/min
Compressed air: 0.5Mpa
Operating range Z axis: 2400mm (vertical direction)
R axis: 1600mm (horizontal direction)
O axis: 330 degrees (horizontal rotation)
α axis: 330 degrees (vertical rotation)
