| Place of Origin: | Anhui, China |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QMS,CCPIT |
| Model Number: | ZDJ-1800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set 1 day |
| Type: | Automatic Packing Line | Application: | Food, Beverage, Commodity, MEDICAL, Chemical, Machinery & Hardware, APPAREL, Textiles, Automatic Picking And Placing |
|---|---|---|---|
| Packaging Type: | Bag | Driven Type: | Electric And Air |
| Voltage: | 380V,50HZ | After-sales Service Provided: | Online Support, Engineers Available To Service |
| Warranty: | 1 Year | Control: | PLC |
| Port: | Any Main Port | Motor: | Servo Motor |
| High Light: | three phase Robotic Bag Palletizer,0.6MPa big bag vacuum packaging machine,Food Automatic packing line |
||

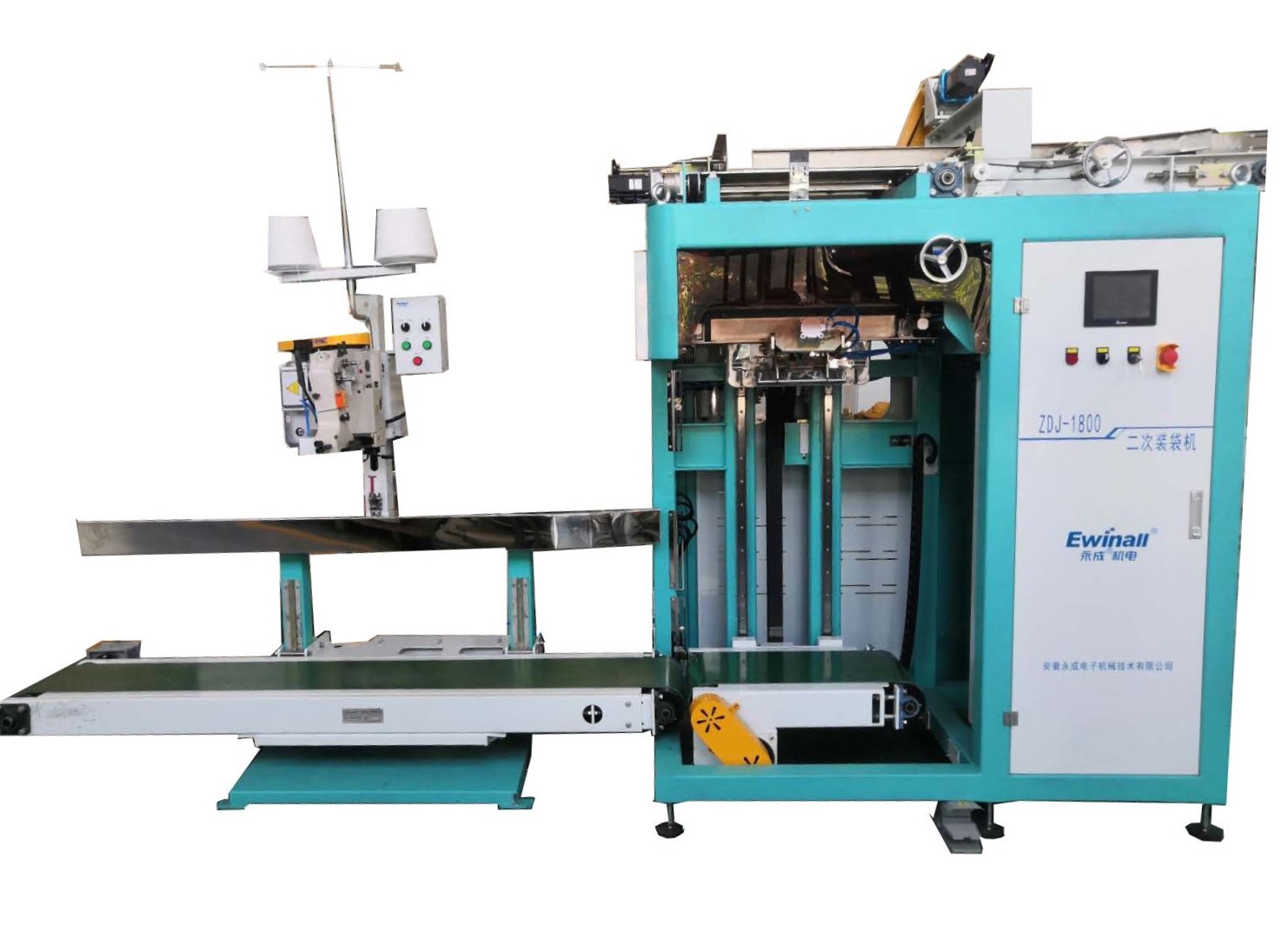

Automatic Small Bag In Big Bag Style Bagging Machine
High speed bagging machine with servo motor and PLC control
The package information:
| Model | ZDJ-1800 | |||
| Style | Flow down | |||
| Package range | a．5kg×10 | b．5kg×5 | c．10kg×5 | |
| The size of package | length(mm) | 970～1000 | 700～750 | 850～880 |
| width(mm) | 600 | 600 | 700 | |
ZDJ-1800 Main technology information
packing capacity:
| The weight | speed |
| 5kg×10 | ≤1800bags/h |
| 5kg×5 | ≤1500 bags/h |
| 10kg×5 | ≤1500 bags/h |
Air pressure:(0.5～0.6)MPa
Consumption:1 m3/h
Power:AC380V±10%,50Hz,three phase five wire,
rated power:5kW
Envirment temperature:0～40℃
environment humidity:Not more than 90% RH at 40 ° C, allowing greater humidity at low temperatures
Grounding form:TN-S
