| Place of Origin: | Anhui, China |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QMS,CCPIT |
| Model Number: | ZXJ-1400 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set 1 day |
| Style: | Small Bag In Box | Application: | Food, Beverage, Commodity, MEDICAL, Chemical, Machinery & Hardware, APPAREL, Textiles, Automatic Picking And Placing |
|---|---|---|---|
| Packaging Type: | Box And Bag | Automatic Grade: | 100% Auto |
| Support: | Power And Air | Dimension(L*W*H): | 2490*1800*2700mm |
| Warranty: | 1 Year | Capacity: | 1400 Bags Per Hour |
| High Light: | 4kw vacuum bag packing machine,vacuum bag packing machine 1400 bags / H,EWINALL carton box making machine |
||

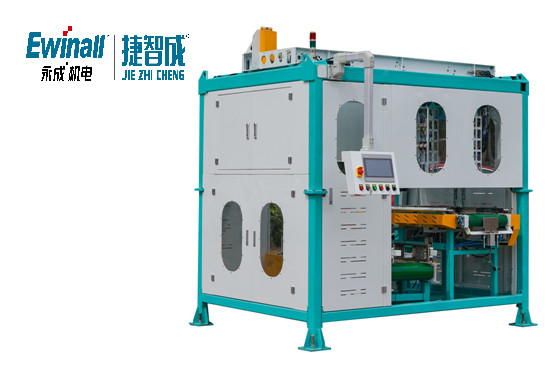

Automatic Vacuum Packing Bag Packing Machine(Carton Machine)

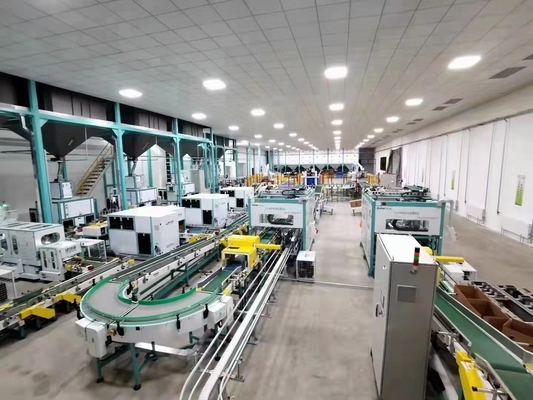

High capacity boxing and packing machine in auto packaging line
The parameter
1,Packing capacity and carton size
| MODEL | ZXJ-1400 | |
| Boxing way | Cartesian coordinate robot transfer | |
| Range | (2.5-10)kg | |
| capacity(bags/hour) | 1000-1400 | |
| Carton size | L(mm) | 345～480 |
| W(mm) | 225～340 | |
| H(mm) | 215～305 | |
Remarks: The above speed is tested under the condition of continuous supply of cartons and rice bags.
2,Main technical performance
Packing specification (single row): 2.5kg×5 packs; 5kg×4 packs; 10kg×3 packs
Air pressure: 0.5～0.7MPa
Total air consumption: 83L/min
Total power consumption: AC380V±10%, 50Hz, three-phase five-wire system, 4 kw
Environment temperature: 0～40℃
Ambient humidity: no more than 90%RH at 40°C, higher humidity is allowed at low temperatures
Grounding form: TN-S
Overall dimension length×width×height (mm): 2310×1880×2383
3,Features
1. High packing efficiency: multi-station design for packing to be coded, fast packing speed, first arrangement and then packing, reducing the number of picking and placing of materials, and no waiting for picking and placing.
2. Good packing effect: The positioning and conveying adopts a full servo system, which has fast moving speed, low operating noise, high positioning accuracy, and a large rectangular coordinate stroke. The materials can be placed on the bottom of the carton smoothly to ensure the packing effect.
3. High degree of automation: It is quick to change specifications, can quickly change product packaging specifications with one key, adapt to the needs of flexible production, and automatically complete functions such as conveying, packing and carton output.
4. Flexible packaging: It can be used for rice bag steering and hand-cartoning functions to reduce the size of the packing box and the damage during transportation.
5. High safety performance: The equipment adopts a closed structure design and has a safety interlocking device.
6. Friendly man-machine interface: easy to operate and maintain, the equipment has a fault self-checking prompt function, and the fault can be quickly eliminated according to the fault prompt.
7. The way of taking the package is two grabs and two releases.
Users
some Our auto Custormers in china and other country
| WILMAR RICE MILL INDONESIA FACTORY | WILMAR RICE MILL VIETNAM FACTORY |
| TANASAN RICE MILL | THAI STANDARD RICE MILL |
| WILMAR RICE MILL PHILIPPINES FACTORY | WILMAR RICE MILL MYANMAR FACTORY |
| PT BERILL JAYA SEJAHTERA IN INDONESIA | KVN MACHINERY AND PARTS ENTERPRISES IN PHILIPPINES |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| WILMAR KERRY GUIGANG(WILMAR GROUP) | ZHANGJIANG BAOLONG RICE MILL |
| WILMAR KERRY BAICHENG(WILMAR GROUP) | QIQIHAER TIANLIN RICE MILL |
| HANGZHOU RICH GRANARYRICE MILL |
| |
| |
| |
| |
| |
| |
| |
QUAN ZHOU FUHAI RICE MILL | |
| |
| ARK-HOM RICEN MILTAILI |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
