| Place of Origin: | Anhui, China |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QMS |
| Model Number: | QZB-900E |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2 sets per day |
| Applicant: | All Kinds Of Grain | Auto: | 100% Fully Automatic |
|---|---|---|---|
| Driven Type: | Electric And Air | Voltage: | 380V,50HZ |
| Dimension(L*W*H): | 7576*2249*2780mm | After-sales Service Provided: | Online Support, Engineers Available To Service |
| Warranty: | 1 Year | Port: | Any Main Port |
| High Light: | ISO Grain Packing Machines,10kg automatic packing machine,auto vacuum packing machine 600 Bags / H |
||

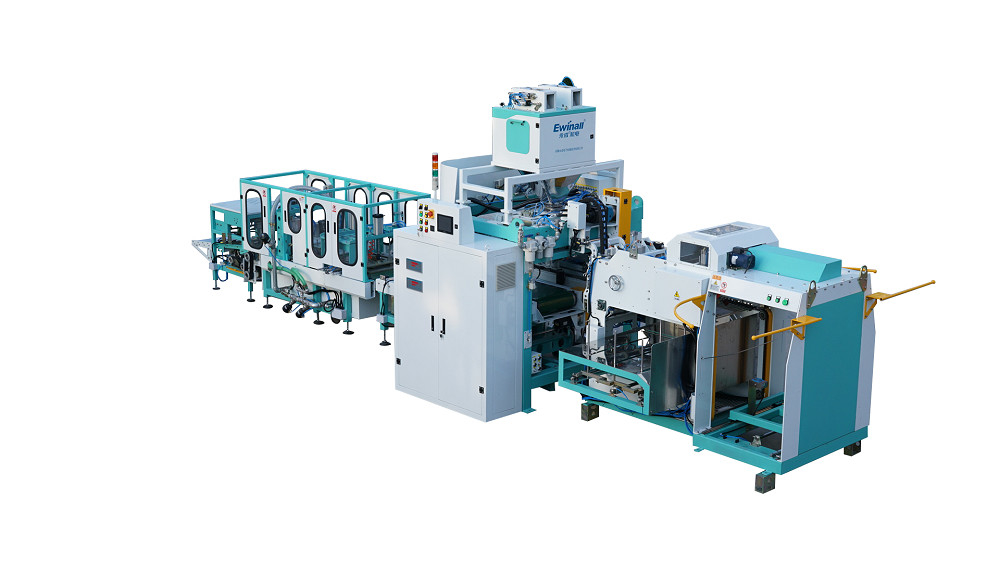

Fully Automatic Pillow Shape Vacuum And Shaping Packing Machine
QZB-900E Fully automatic PE,pillow shap vacuum and filling CO2 packing machine
| Model | QZB-900E |
| Filling way | One time one bag filling |
| The package of bag | PEbag |
| Quantity(kg/bag) | 2.5～10 |
| The sealing way | Filling and normal PE sealing one time,vacuum sealing two times |
The capacity of machine
| The weight | Maxxium speed |
| 2.5kg | 540-600 bags/h； |
| 5kg | 600-650 bags/h； |
| 10kg | 540-600 bags/h； |
Note:when filling CO2 air,the purity of CO2 must ≥99.9%.
Air pressure:0.5～0.7MPa.
Air consumption:When working with filling CO2: 67L/min；When working with vacuum 117L/min.
Power:AC380V±10%,50Hz,Three-phase five-wire system,Grounding form:TN-S
When working with filling CO2:5.6KW；When working with vacuum:10KW.
Working temperature:0～40℃.
Ambient humidity: no more than 90% RH at 40 ° C, and greater humidity is allowed at low temperatures.
The dimensionof machineL×W×H(mm):7576×2294×2780
