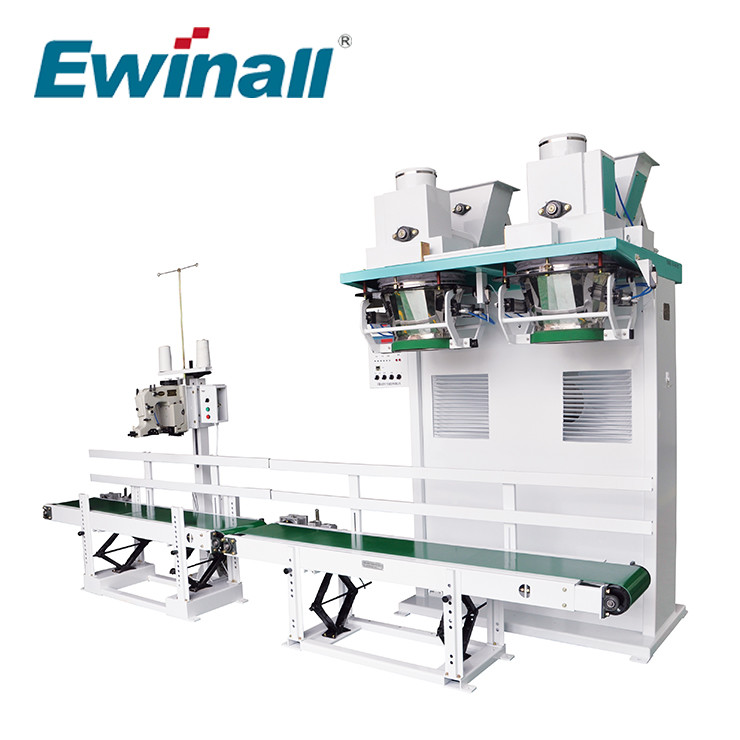

DCS-50FT2 Ewinall Automatic Powder Packaging Scale Machine Stainless Steel Super Efficient Weighing Machine
1. Scope of application
Quantitative packaging of powder materials in flour, feed, food additives, chemical industries and other industries.
2. Features
1. High-speed weighing instrument + PLC dual-core control technology, efficient weighing calculation method; A/D conversion times up to 240 times per second. Ensure the weighing speed of the equipment, and data collection and other functional requirements.
2. Stable three-sensor weighing structure, balanced layout of the weighing cylinder, reasonable force, which improves the service life of the equipment, and is not affected by the vibration of the workshop machine, with higher stability and anti-interference ability, ensuring various packaging accuracy.
3. Friendly man-machine interface, simple and convenient equipment operation, reducing labor intensity, improving the level of intelligence in workshop operation, intelligent storage of production reports, and data communication functions
4. Unique servo speed regulation feeding mechanism, servo control speed, position accuracy is very accurate, weighing action is faster and more accurate. The servo motor realizes the feeding of the twisting cage at three speeds: fast, medium and slow. The twisting cage feeding can achieve better feeding control for powdery and granular materials with general fluidity, with accurate control accuracy, and realizing quantitative feeding and packaging.
5. This equipment adopts non-bucket scale for quantitative packaging, and the packaging bag itself is the scale body, which overcomes the problem of drenching and hanging material in the buffer bucket in the middle of the bucket scale, and ensures the quantitative material.
6. The double-station operation is combined with the upper and lower piers to improve the packing speed and sewing comfort.
Three, technical parameters
| Model specification |
DCS-50FT2 |
| Display method |
touch screen |
| Weighing range (kg) |
40-50 |
| Graduation value (g) |
10 |
| level of accuracy |
X(0.5) |
| Weighing speed (bag/hour) |
100-180 (bran powder) |
| Power consumption, gas consumption |
5kw, 0.4-0.5Mpa compressed air 16.7L/min |
| Working environment power supply |
Relative humidity ≤90%, 4N-AC380V±10% 50HZ |
Dimensions (mm)
length × width × height |
2620×1670×(2232+1283) |
Remarks: 1. The height of the overall dimensions includes the hopper
Weighing speed refers to the data when using bran powder as packaging material under specified conditions.
Fourth, the main configuration
| Component name |
Brand |
Remarks |
| Weighing control instrument |
Zhimei |
|
| Programmable Controllers |
Omron (Japan) |
| Load cell |
METTLER TOLEDO (USA)/HBM (Germany) |
| servo motor |
Huichuan |
| Reducer |
Hubei Planet |
| touch screen |
Delta |
| The electromagnetic valve |
gold |
| Photoelectric switch |
SICK (Germany) |
| Air source treatment element |
AirTAC |
5. Product sample map (optional storage hopper)
