Soybean Meal Bran Feed Electronic Quantitative Scale Belt Conveyor 50KG - 70KG

Soybean Meal,Bran,Feed.Electronic Quantitative Scale.Belt Conveyor.50KG-70KG

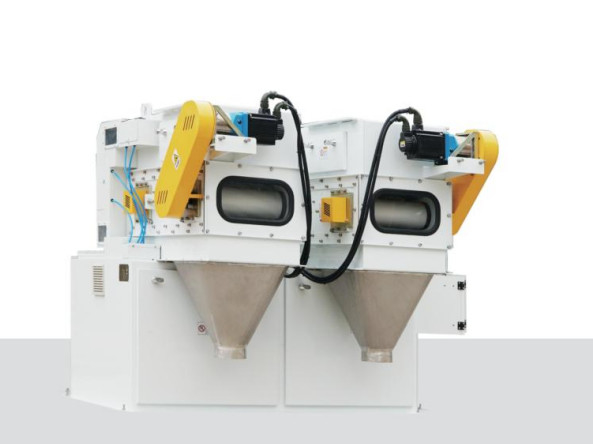

Product Description of Servo Belt Scale
1. Function
It consists of feeding system, weighing system and weighing instrument. The material enters the weighing hopper through the feeding hopper, and the weighing instrument of the weighing sensor connected to the weighing hopper sends out a weight change signal, and the start and stop of the large and small feeding are controlled by the predetermined value of the weighing instrument. stop, realize multi-level feeding, and have higher weighing accuracy. When the weighing is finished, the weighing hopper door is opened, and the material enters the empty bag on the bag clamping mechanism through the buffer hopper. The weighing instrument has a high-speed A/D conversion and digital processing capability of 200 times/second. Color touch screen display, all operating functions are completed on the touch screen, the setting and adjustment of various parameters is very convenient.
a. Power failure protection, power failure data will not be lost
b. Automatic zeroing, start-up zeroing, cycle zeroing
c. Automatic error correction, out-of-tolerance alarm, overweight alarm, underweight alarm, zero out-of-tolerance alarm, low material level alarm
d. Automatic weight compensation, automatically correcting the weight error and then compensating to the correct set value

2. Main features
1. Advanced weighing instrument + PLC dual-core control technology, advanced weighing calculation method; the number of A/D conversions reaches 200 times per second. To ensure the weighing speed of the equipment, and the strict requirements of accuracy. Servo control is used to control the size of the feeding to control the feeding amount, and the weighing accuracy is higher.
2. The stable three-sensor weighing structure, balanced layout of the weighing cylinder, reasonable force, prolong the service life of the equipment, and will not be disturbed by the vibration of the workshop machine, with high stability and anti-interference ability. The sensor adopts American Mettler and Toledo, which makes the system more stable and durable.
3. Friendly man-machine interface, simple and convenient equipment operation, improve the intelligent level of workshop operation, can set several target quantities at the same time, long-term intelligent storage of production reports, and data communication functions.
4. Safe to use, safe and hygienic. In order to ensure food safety, we use stainless steel for material contact parts such as feeding and weighing.
5. Reassuring design, airtight studio, to prevent rodent damage and acidification corrosion, we have adopted a closed studio, all lines, sensors, solenoid valves use steel wire slots or protective iron boxes, and also isolate water vapor from the cylinder and sensors Corrosion and wear, prolonging the trouble-free operation time of equipment.

3. Automatic packing scale
