| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | DCS-25S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Delivery Time: | 20 days |
| Supply Ability: | 5 sets per day |
| Weighing Range: | 10kg-25kg | Load Cell: | METLLER TOLEDO Load Ecll |
|---|---|---|---|
| Conveyor: | Auto Lifting | Installation: | Easy Connection |
| Driven: | Electric And Air | Power: | 380V,50HZ |
| High Light: | 10KG Quantitative Packaging Scale,25KG Quantitative Packaging Scale,Auto Lifting Quantitative Packaging Scale |
||
Flour, Feed, Food Additives, Chemicals, Etc.10KG-25KG,Electronic Quantitative Packaging Scale

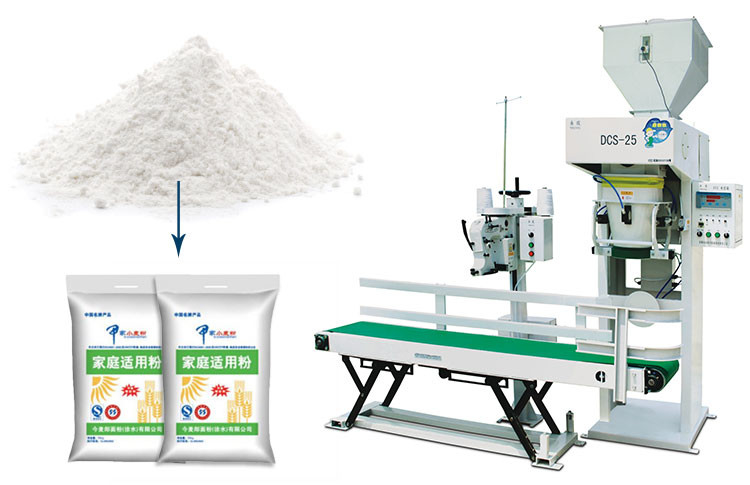

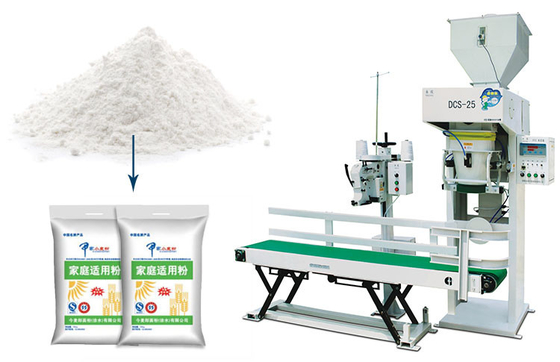

DCS-25-S Electronic Quantitative Packaging Scale Product Description
1. Scope of application
Quantitative packaging of powder materials in flour, feed, food additives, chemical and other industries.
2. Features
a. Conveyor manual lifting technology, core components adopt international famous brands, advanced functions, stable and reliable.
b. The specially designed double-pair cage feeding mechanism, combined with the control algorithm of the controller, makes the packaging speed of the scale fast and accurate.
c. High-precision weighing sensor and quantitative controller are adopted. The controller adopts high-performance A/D converter with a conversion rate of 200 times per second and an input sensitivity of 0.5μν/d. The measurement accuracy is high and the stability is good.
d. There is a manual control mode, which can be manually operated to control the feeding and bag loosening mechanisms, so as to facilitate the cleaning of agglomerated and blocked materials.
e. It has the function of over-tolerance alarm.
f. The operation is simple, the operator only needs to cover the bag and touch the bag clip switch (or step on the foot switch), and the actions of feeding, filling and unloading are all completed automatically.
3. Technical parameters
| Model | DCS-25S |
| Weighing range (kg) | 10~25 |
| Division value (g) | 5 |
| Weighing error | X(0.5) |
| Weighing speed (bag/hour) | 170~240 |
|
Power consumption, air consumption |
4.1 kW,(0.4～0.5)MPa 16.7L/min |
| Working environment | relative humidity ≤ 90%, temperature (0 ~ 40) ℃ |
| Power supply requirements | AC220V±5% 50Hz；AC380V±5% 50Hz |
| Dimensions (mm) Length×width×height |
2654×1215×2641 |
Remarks: The overall dimension height includes the hopper
