| Place of Origin: | Anhui,China |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QMS,EMS,CCPIT |
| Model Number: | ZDJ-1800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Normal wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 set 7 days |

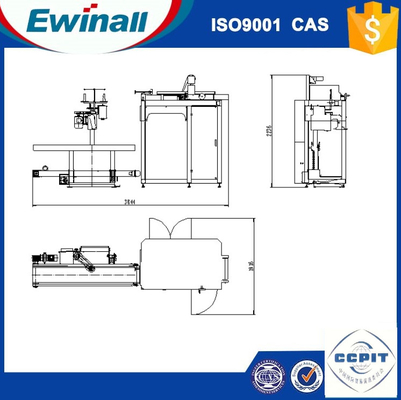

| Voltage: | 220V Or 380V Or Customer Power | Dimension(l*w*h): | 3844*1915*2236mm |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support Or Online Support | Driven Type: | Electric,Mechanical |
| Power: | 5000W | Packaging Type: | Bags With PP And PE |
| Application: | Food,Chemical,Medical,Commodity,Beverage | Warranty: | 1 Year |
| Usage: | Food,Bag,Paper,etc | ||
| High Light: | automatic bag packing machine 1m3/ h,0.6MPa Small Bagging Machine,automatic plastic packing machine 1500 bags/ h |
||
bagging machine with auto lifting conveyor,sewing machine,and bagging part
Automatic small bag in big bag style bagging machine using in rice,grain,and food factory
First, the package related instructions
ZDJ-1800 secondary bagging machine is part of the automatic packaging, bagging and palletizing production line. It is used together with automatic sewing bag in the production line to complete the secondary bagging of manual bagging, automatic bagging and sewing. It can realize semi-automatic bagging of 5kg-10kg two-side packaging, and can realize the switching of 5kg-10kg two-sided packaging products by adjusting the hand wheel. Scope of application: It is suitable for bagging of double-sided packaging products such as rice and flour.
ZDJ-1800 Main technology information
packing capacity:
| The weight | speed |
| 5kg×10 | ≤1800bags/h |
| 5kg×5 | ≤1500 bags/h |
| 10kg×5 | ≤1500 bags/h |
Air pressure:(0.5～0.6)MPa
Consumption:1 m3/h
Power:AC380V±10%,50Hz,three phase five wire,
rated power:5kW
Envirment temperature:0～40℃
environment humidity:Not more than 90% RH at 40 ° C, allowing greater humidity at low temperatures
Grounding form:TN-S
Components
|
No |
Name |
Brand |
Category |
|
|
PLC(Controller) |
OMRON(Japan) |
Electric and air |
|
|
Touch screen | Kunlun State / Delta | |
|
|
Low voltage electrical | Eaton (Germany) | |
|
|
Photoelectric switch |
|
|
|
|
Proximity switch | Omron (Japan) / Turck | |
|
|
Relay |
IDEC |
|
|
|
Cylinder |
SMC(JAPAN)/Airtac |
|
|
|
Solenoid valve |
SMC(JAPAN)/Airtac |
|
|
|
Servo motor | DELTA/HUI CHUAN | |
|
|
Planetary reducer |
DELTA/KOFON |
|
|
|
Bearing |
NSK(Japan) |
The certification
