| Place of Origin: | China |
| Brand Name: | EWINALL |
| Certification: | ISO,CE,QSM |
| Model Number: | ZDJ-1800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Normal wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 set 7 days |
| Voltage: | 220V380V | Automatic Grade: | Automatic |
|---|---|---|---|
| Dimension(l*w*h): | 3844*1915*2236mm | After-sales Service Provided: | Video Technical Support |
| Driven Type: | Electric,Mechanical | Power: | 5000W |
| Packaging Type: | Bags | Application: | Food,Chemical,Medical,Commodity,Beverage |
| Warranty: | 1 Year | Usage: | Food,Bag,Paper,etc |
| High Light: | antirust Small Bagging Machine,220V small bag packing machine,1800 bags / h medical packing machine |
||

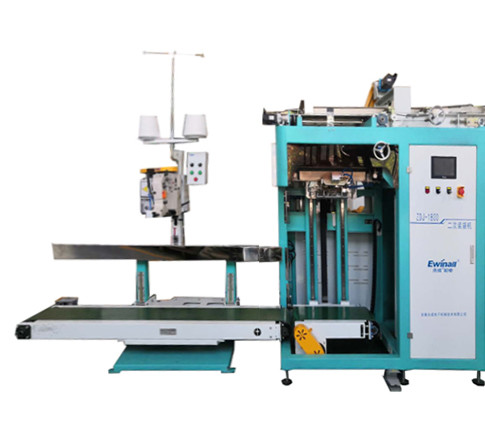

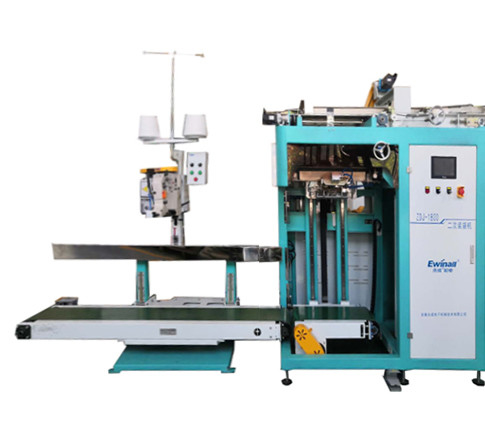

Automatic small bag in big bag style bagging machine
The details of rebagging machine
First, the package related instructions
ZDJ-1800 secondary bagging machine is part of the automatic packaging, bagging and palletizing production line. It is used together with automatic sewing bag in the production line to complete the secondary bagging of manual bagging, automatic bagging and sewing. It can realize semi-automatic bagging of 5kg-10kg two-side packaging, and can realize the switching of 5kg-10kg two-sided packaging products by adjusting the hand wheel. Scope of application: It is suitable for bagging of double-sided packaging products such as rice and flour.
ZDJ-1800 Main technology information
packing capacity:
| The weight | speed |
| 5kg×10 | ≤1800bags/h |
| 5kg×5 | ≤1500 bags/h |
| 10kg×5 | ≤1500 bags/h |
Air pressure:(0.5～0.6)MPa
Consumption:1 m3/h
Power:AC380V±10%,50Hz,three phase five wire,
rated power:5kW
Envirment temperature:0～40℃
environment humidity:Not more than 90% RH at 40 ° C, allowing greater humidity at low temperatures
Grounding form:TN-S
Components
|
No |
Name |
Brand |
Category |
|
|
PLC(Controller) |
OMRON(Japan) |
Electric and air |
|
|
Touch screen | Kunlun State / Delta | |
|
|
Low voltage electrical | Eaton (Germany) | |
|
|
Photoelectric switch |
|
|
|
|
Proximity switch | Omron (Japan) / Turck | |
|
|
Relay |
IDEC |
|
|
|
Cylinder |
SMC(JAPAN)/Airtac |
|
|
|
Solenoid valve |
SMC(JAPAN)/Airtac |
|
|
|
Servo motor | DELTA/HUI CHUAN | |
|
|
Planetary reducer |
DELTA/KOFON |
|
|
|
Bearing |
NSK(Japan) |
