| Place of Origin: | Anhui, China |
| Brand Name: | EWINALL |
| Certification: | CE,QMS,ISO,CCPIT |
| Model Number: | QZB-500B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Export standard wooden box |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 days per set |
| Application: | Soybean And Meal Bran | Range: | 50kg To 70kg |
|---|---|---|---|
| Capacity: | 540 To 650 Bags Per Hour | Drive Type: | Electric And Air |
| Patent: | Japan,Turjkey,USA,and Come European Countries | Temperature: | 0-40℃ |
| Humidity: | 90% Maxxium | After-sales Service Provided: | Online Support, Engineers Available To Service |
| Material Temperature: | Maxium 50℃ | Port: | Any Main Port |
| High Light: | meal bran Powder packing machine,50kg soybean packing machine,1240mm fully automatic powder packing machine |
||

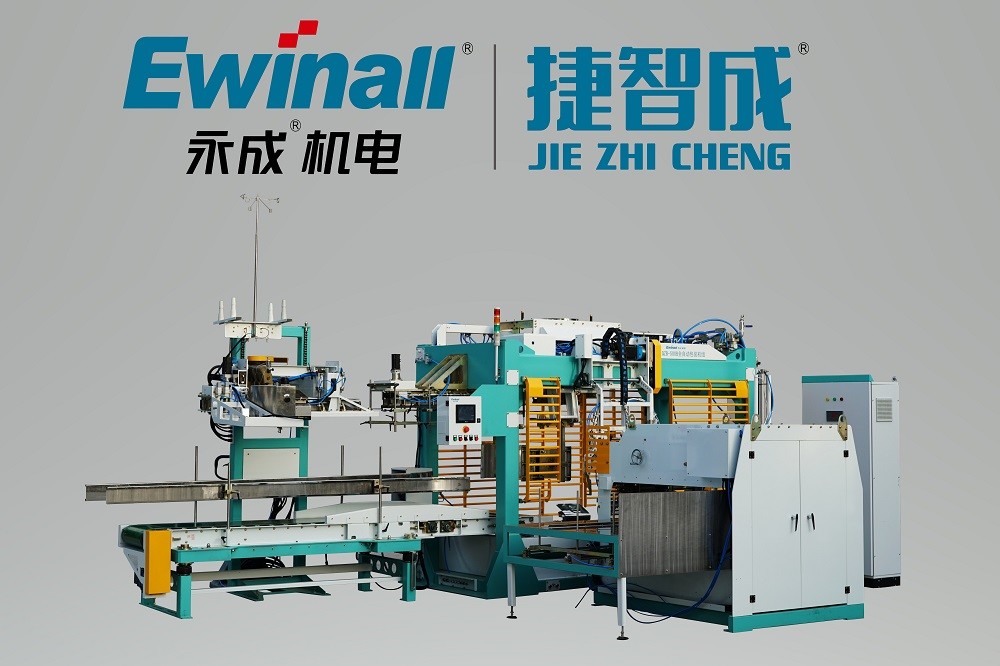

Large-Package Soybean Meal Bran Fully Automatic Packaging Machine
QZB-500B fully automatic packing machine
The main technical performance of the packaging unit
1. The main basis of the design: automatic packaging, improve efficiency, save manpower, and convenient operation.
2．Product technical parameters, packaging materials and equipment operating conditions
(1) Packing material name: bran or other powder and granular material
— Packaging temperature: material temperature is less than 50℃
— Liquidity: General
(2) Stand-alone packaging system capabilities:
Weighing range:25-50kg/bag
Weighing error:±2‰；The weighing unit of the packaging machine is an optional product.
Capacity:8-10 bags/minute；
(3) Packaging bag requirements:
Type: Open type
Packing material: non-coated woven bag, without film woven bag, the bag is required to be flat, no corners, bending phenomenon, no folding and wrinkling are allowed, the bag mouth is a woven bag that has been rubbed through the bag mouth through the process of rubbing the mouth .
Size:Length:1100-1240 mm
Width:660-720 mm
weight:100-124 g
Warp and weft density, root /10cm:＞40×40
Radial pull(N/50mm):50/70kg＞440/490
Zonal pull up(N/50mm):50/70kg＞420/470
(4) Equipment operating conditions
Ambient temperature: 0～40°
Humidity: maximum 90%
Consumption:83L/min(0.5MPa)
Power:6kw
