| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO.CE,QMS,EMS,CCPIT |
| Model Number: | DCS-50FT2-B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in export srtandard wooden case |
| Delivery Time: | 20 days |
| Supply Ability: | 5 sets per day |
| Power Supply: | AC380V,50HZ | Display Type: | LCD |
|---|---|---|---|
| Automatic Grade: | Semi-Automatic | Driven Type: | Electric And Air |
| Application: | Powder | Packing Speed: | 3-6 Bags/min |
| Warranty: | One Year | Control: | PLC |
| High Light: | 33.3L/ min powder packaging machine,200 Bags / H rice powder packing machine,Dual Scale conveyor belt packaging machines |
||

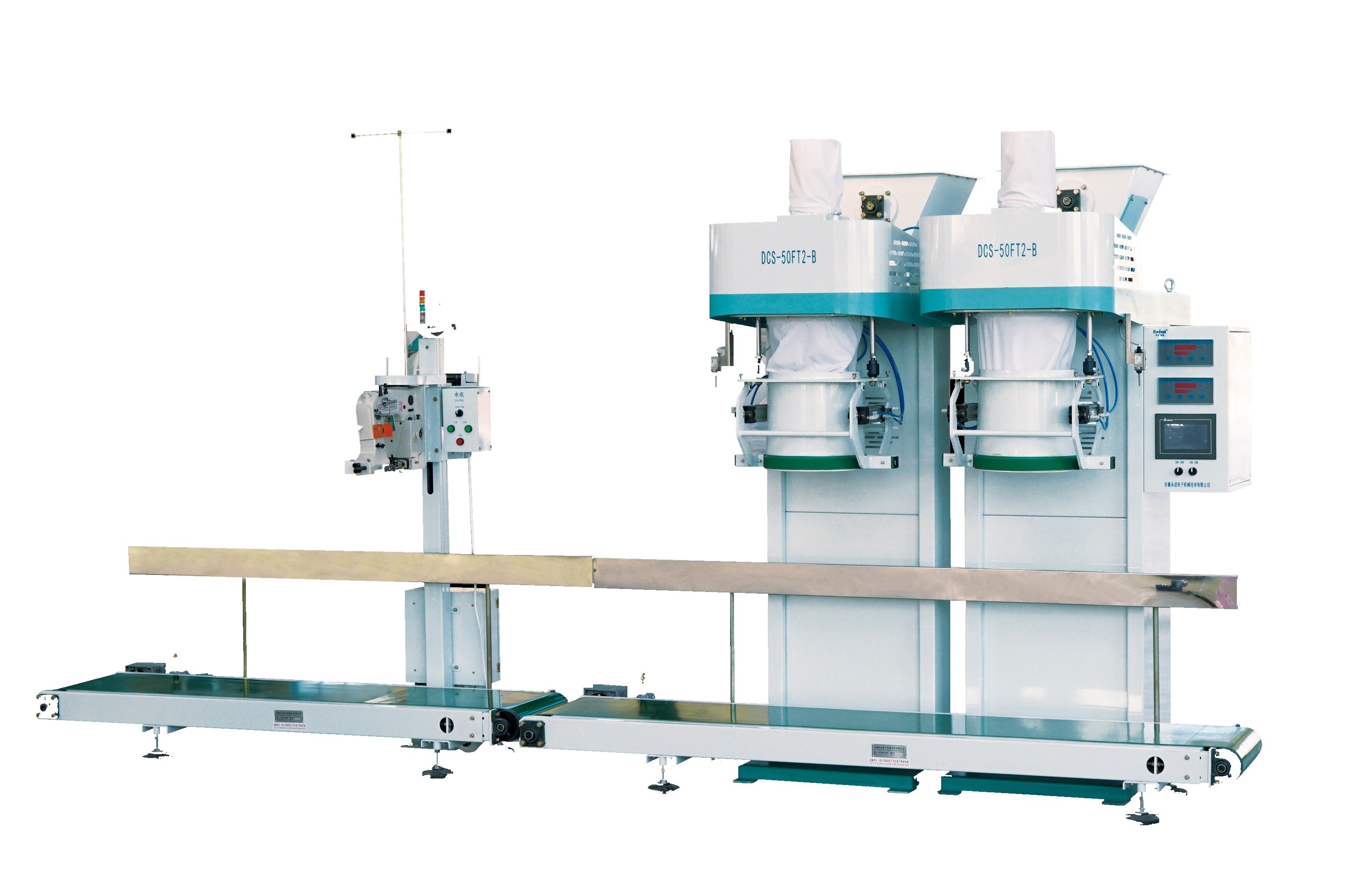

Wheat Flour Powder Packing Machine With Double Scale And Long Conveyor
DCS-50 model series powder packing machine
Applicant:
Quantitative packaging of powder materials in flour, feed, food additives, chemical industries and other industries.
The features
1. Weighing instrument + PLC dual-core control technology, efficient weighing calculation method; A/D conversion times up to 240 times per second. Ensure the weighing speed of the equipment, and data collection and other functional requirements.
2. Stable three-sensor weighing structure, balanced layout of the weighing cylinder, reasonable force, which improves the service life of the equipment, and is not affected by the vibration of the workshop machine, with higher stability and anti-interference ability, ensuring various packaging accuracy.
3. Friendly man-machine interface, simple and convenient equipment operation, reducing labor intensity, improving the level of intelligence in workshop operation, intelligent storage of production reports, and data communication functions
4. Servo speed regulation feeding mechanism, servo control speed, position accuracy is very accurate, weighing action is faster and more accurate. The servo motor realizes the feeding of the twisting cage at three speeds: fast, medium and slow. The twisting cage feeding can achieve better feeding control for powdery and granular materials with general fluidity, with accurate control accuracy, and realizing quantitative feeding and packaging.
5. This equipment adopts non-bucket scale for quantitative packaging, and the packaging bag itself is the scale body, which overcomes the problem of drenching and hanging materials in the buffer bucket in the middle of the bucket scale, and ensures the quantification of materials.
6. The double station operation is combined with the upper and lower piers to improve the packing speed and sewing comfort.
The parameter
| Model | DCS50FT2-B |
| Display | Intelligent instrument display and control |
| Weighing range(kg) | 40~50 |
| Division (g) | 10 |
| Accurancy | X(0.5) |
| Capacity (bags/h) | 200~280 |
| Consumption |
5kw,0.4-0.5Mpa Air 33.3L/min
|
| Power and environment | Relative humidity≤90%,4N-AC380V±10% 50HZ |
|
Dimension(mm) L×W×H |
730×1670×(2232+1368)
|
The certification
