| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | CE,ISO,QMS,CCPIT |
| Model Number: | DCS-50FE2-BZ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed export standard wooden box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Type: | Feeds Scale | Power Supply: | AC380V 50/60HZ |
|---|---|---|---|
| Display Type: | LCD | Accuracy: | 0.1KG |
| Automatic Grade: | Semi-Automatic | Driven Type: | Electric And Air |
| Packing Speed: | 10-15 Bags/min | Warranty: | One Year |
| Range: | 5kg To 50kg | Material: | Stainless Steel |
| Port: | Any Main Port | Control: | PLC |
| High Light: | 50kg quantitative packing machine,5kg packing machine Stainless Steel,5000g animal feed packing machine |
||
Animal Feeds Packing Machine From 5k To 50kg

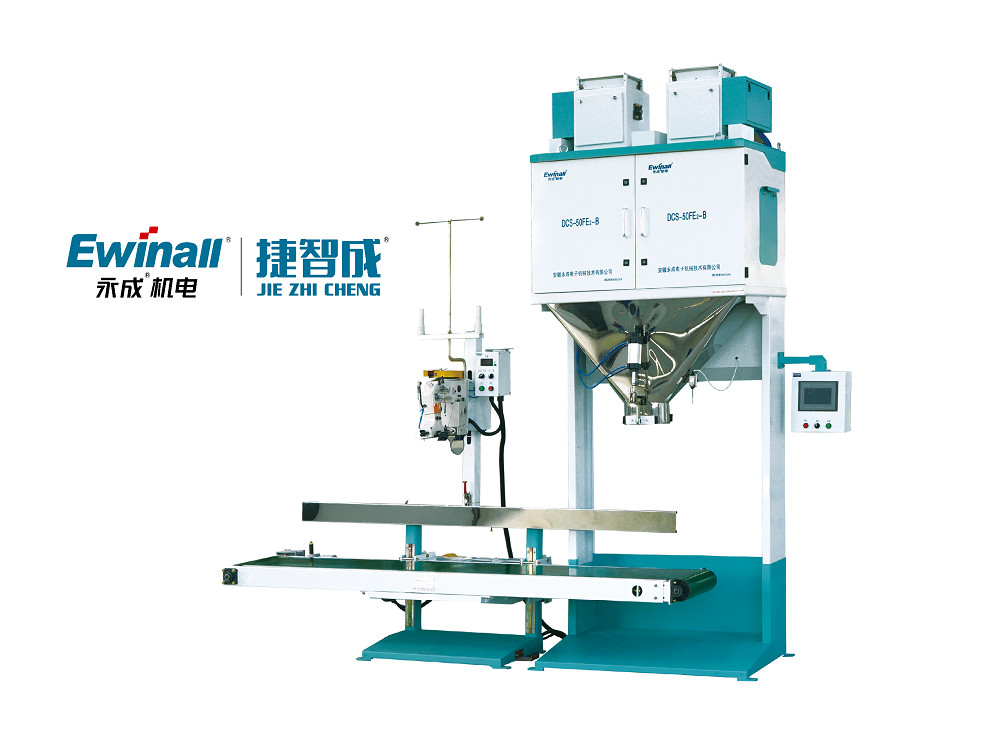

DCS-50FE2-B intelligent packing scale with sewing and sealing machine in animal feeds factory
Applicant:
Quantitative packaging of granular materials in industries such as rice, seeds, feed, chemical raw materials, sugar, and peanuts.
Features:
1. Adopt international advanced high-precision weighing sensor and batching controller, the controller adopts high-performance A/D converter, the conversion rate is up to 480 times per second, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good.
2. Specially designed three-sensor support. This structure eliminates the problems of force point deviation and signal distortion caused by uneven distribution of materials in the weighing hopper.
3. The specially designed multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the scale packaging fast and accurate. The independent dual-cylinder feeding overcomes the troubled quantitative packaging equipment for many years. The difficult point of the sealing ring is easy to wear.
4. The specially designed sensor and cylinder airtight studio completely isolates the corrosion and abrasion of the cylinder and sensor by rice flour, dust, and water vapor, greatly prolonging the trouble-free operation time of the equipment.
5.The Chinese touch screen operation interface makes the operation interface more intuitive and user-friendly, and the function operation is clear at a glance, reducing the chance of wrong operation.
6. Equipped with manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials.
7 Automatic bag sewing and automatic thread cutting function.
8. Conveyor automatic lifting technology, the core components adopt international famous brands, advanced functions, stable and reliable.
9. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.
10. The parts in contact with the material are made of stainless steel, which is corrosion resistant and prolongs the service life of the equipment.
Parameter
| Model | DCS-50FE2-B |
| Display | Touch screen display and control |
| Weighing range(kg) | 10~50 |
| Division value(g) | 5 |
| Accurancy | X(0.2) |
| Capacity(bags/hour) | 500~720 |
| Consumption | 1.3kw,0.4-0.5Mpa Air16.7L/min |
| Power and environment | Relative humidity≦90%,AC380V±10% 50HZ |
|
Dimension(mm) L×W×H |
3520×1060×3211 |
Note: Weighing speed refers to the data when rice is used as packaging material under specified conditions.
The components
| Spare parts | brand | Note |
| Touch screen | Kunlun tongtai | |
| Weighing controller | GM | |
| PLC | OMRON(Japan) | |
| Load cell | METLLER TOLEDO(USA) | |
| Solenoid valve | Mindman | |
| Sensor | SICK(Germany) | |
| Proximity switch | OMRON(Japan) | |
| Air parts | AIRTAC |
