Place of Origin: | Anhui, China |
Brand Name: | Ewinall |
Certification: | ISO.CE,QMS,EMS,CCPIT |
Model Number: | DCS-50FT-1 |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | packed in wooden box |
Delivery Time: | 20 days |
Supply Ability: | 5 sets per day |
Power Supply: | AC110-240V 50/60HZ | Display Type: | LCD |
---|---|---|---|
Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Application: | Food | Packing Material: | Plastic Film |
Packing Speed: | 3-6 Bags/min | Warranty: | One Year |
Keyword: | Powder Material | Port: | Any Main Port |
High Light: | 50KG food powder packing machine,40KG semi automatic powder packaging machine,6 Bags / Min semi automatic powder packaging machine |
Wheat powder packing machine from 40kg to 50kg

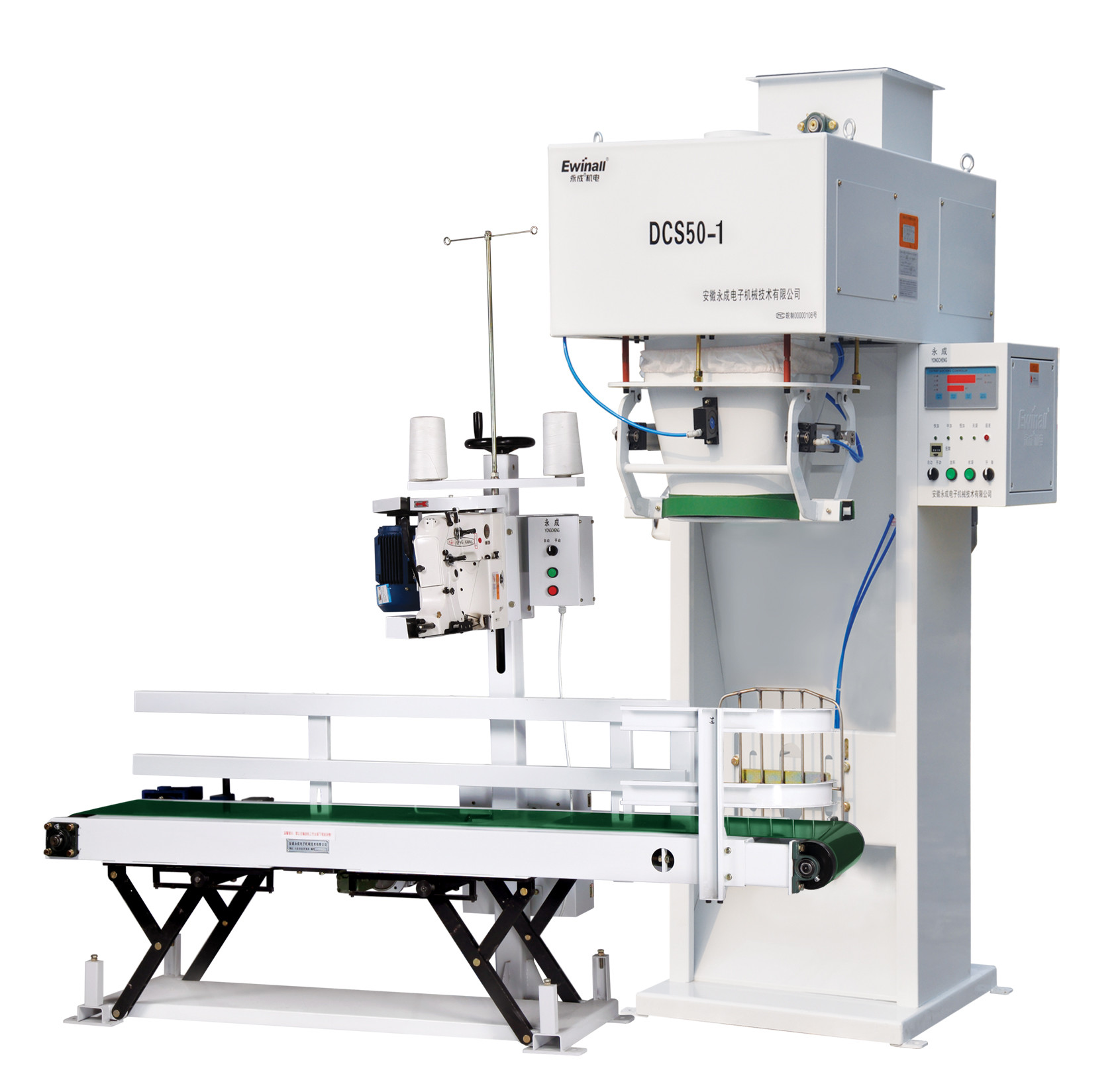

DCS-50 model series powder packing machine
Applicant:
Quantitative packaging of powder materials in flour, feed, food additives, chemical industries and other industries.
The features
1,Quantitative packaging of powder materials in flour, feed, food additives, chemical industries and other industries.
2,Conveyor manual lifting technology pioneered in China, the core components adopt internationally renowned brands, advanced functions, stable and reliable.
3,The specially designed twisted-cage feeding mechanism, combined with the control algorithm of the controller, makes the scale's packaging speed and accuracy high.
4,Adopt international advanced high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate can reach 200 times per second, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good.
5,Equipped with manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials.
6,It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.
7,With automatic drop correction function. Out of tolerance alarm.
8,The operation is simple, the operator only needs to cover the bag and touch the bag clamping switch (or the foot switch), and the actions such as feeding, filling and unloading are all automatically completed.
The parameter
Model | DCS50FT-1 |
Display | Intelligent instrument display and control |
Weighing range(kg) | 40~50 |
Division (g) | 10 |
Accurancy | X(0.5) |
Capacity (bags/h) | 100~180 |
Consumption |
3.7kw,0.4-0.5Mpa Air 16.7L/min
|
Power and environment | Relative humidity≤90%,4N-AC380V±10% 50HZ |
Dimension(mm) L×W×H |
2808×1342×3076
|
The main part
Name | Brand | Note |
Weighing controller | GM | Weighing control instrument product development design is a Japanese company, and all components are imported from Japan. |
PLC | OMRON(JAPAN) | |
Load cell | Metller toledo(USA) | |
Solenoid valve | MINDMAN | |
Sensor | SICK(GERMANY) | |
Proximity switch | OMRON(JAPAN) | |
Cylinder | AIRTAC | |
Air source treatment element | AIRTAC |
The certification
