CE Quantitative Grain Bag Filling Machine 16.7L/ Min 1200 Bags / H

1200 bags per hour real top capacity packing scale in china

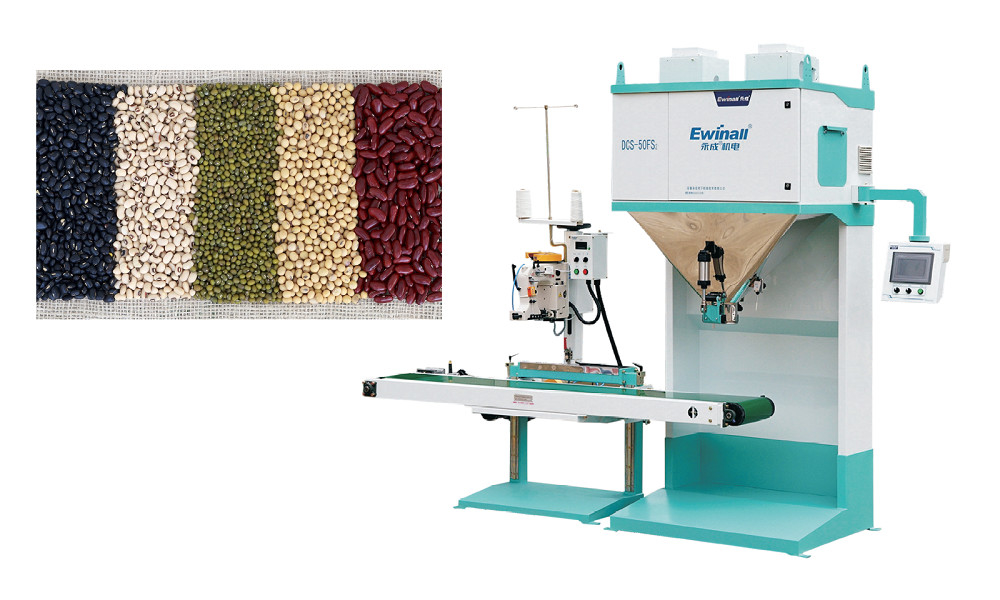

DCS-50FS2 packing scale


Appilicant
It is suitable for automatic quantitative packaging of materials with good fluidity (such as: rice, plastic particles, etc.).


Features:
1, High-speed weighing instrument + PLC dual-core control technology, efficient weighing calculation method; A/D conversion times up to 480 times per second. Ensure the weighing speed of the equipment, and data collection and other functional requirements.
2, The stable three-sensor weighing structure, the balance of the weighing cylinder layout, and the reasonable force, improve the service life of the equipment, and are not affected by the vibration of the workshop machine, and have higher stability and anti-interference ability, ensuring various packaging accuracy.
3, Friendly man-machine interface, equipment operation is simple and convenient, reducing labor intensity, improving the level of intelligence in workshop operation, intelligent storage of production reports, and data communication functions.
4, Intelligent one-click changeover. For different packages, the unwinding device automatically switches, and the conveyor quickly switches to the appropriate position according to different packages. For different packages and different types of materials, the system automatically adjusts the weighing accuracy and speed to achieve the best weighing state of the system.
5, Safety and hygiene. To ensure food safety, the parts in contact with materials such as our feeding and weighing barrels are all made of stainless steel. The interior is polished smoothly to prevent dead corners and leave no food residues to prevent residual rice mildew and rancidity affecting rice quality.
6, To prevent rodent damage and acid corrosion, we have adopted a closed working room. All wiring, sensors, and solenoid valves are equipped with steel wire grooves or protective iron boxes, which also completely isolates the corrosion and abrasion of the cylinder and the sensor by the rice flour and water vapor. The trouble-free operation time of the equipment is increased.
7, Servo drive design, reliable structure. The servo control speed and position accuracy are very accurate. Make the weighing action faster and more accurate.
8, Light and easy to turn, rotating column, multi-functional sealing method, for different packaging, different sealing forms, designed sewing machine and heat sealing machine that can be switched by rotation, allowing users to feel a convenient and easy-to-use experience.
9, The habit of left and right hand operation, no matter which hand you are accustomed to using, you should get the same convenience during operation. The bag-holding switch that can be interchanged between left and right is specially designed to achieve the same operation mode of left and right hands.
10, The sliding column adjustment is suitable for a variety of operating modes, allowing you to sew ordinary bags, hem-sewn bags, heat-sealed bags, and operate at any distance you want, presenting unspeakable joy. (Optional folding and heat sealing machine)
11, The intelligent multi-point oil supply spray lubrication system of the sewing machine, we arrange the oil injection pipeline reasonably at a dozen key points of the sewing machine, and the oil mist particles are injected regularly and quantitatively through the program calculation to ensure the lubrication of each key moving part. Don't worry about forgetting to refuel the sewing machine. (Optional)
12, Firmly lock in freshness. It has the function of fresh-keeping gas input to meet the individual needs of customers for rice packaging. (Optional)

Parameter:


Remarks: 1. Test data with rice as the packaging material under certain conditions.

Components




The certification
