| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE |
| Model Number: | 25W |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed in wooden box |
| Delivery Time: | 20 days |
| Supply Ability: | 5 sets per day |
| Type: | Filling Machine | Condition: | New |
|---|---|---|---|
| Application: | Food, Commodity, Chemical, Machinery & Hardware, Food/Chemical | Packaging Type: | Cartons, Bags, Pouch, Case |
| Packaging Material: | Plastic, Wood | Automatic Grade: | Semi-automatic, Semi-Automatic |
| Driven Type: | Electric, Electric | Voltage: | 4N-AC380V |
| Dimension(L*W*H): | 2846*1025*2738 | Weight: | 400kg |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Color: | Green And Blue | Packing Material: | PP/PE/woven Bags |
| Packing Speed: | 200-300bags/hour | Packing Range: | 2.5-15kg |
| Keyword: | Coffee Bean Packaging Machine | Material: | SS304 |
| Division Value: | 2-10g | Port: | Any Main Port |
| High Light: | 15kg wheat Powder packing machine,SS304 semi automatic powder packing machine,AC380V small powder filling machine |
||
wheat flour powder small packing machine

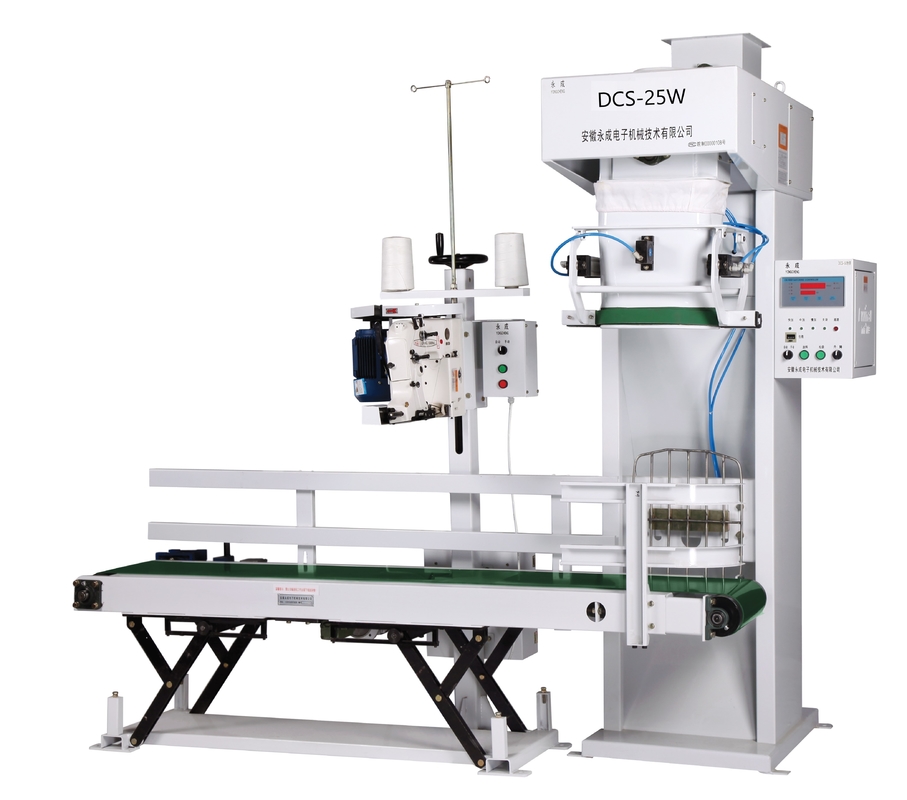

DCS-25W series electronic quantitative powder packaging scale
A:Scope of application
Quantitative packaging of powder materials in flour, feed, food additives, chemical industries and other industries.
B:Features
1. The domestically pioneered conveyor manual lifting technology, the core components adopt internationally renowned brands, advanced functions, stable and reliable.
2. The specially designed twisted-pair cage feeding mechanism, combined with the control algorithm of the controller, makes the scale's packaging speed and accuracy high.
3. Adopt international advanced high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate is up to 200 times/sec, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good.
4. Equipped with manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and clogged materials.
5. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.
6. With automatic drop correction function. Out of tolerance alarm.
7. The operation is simple. The operator only needs to cover the bag and touch the bag clamping switch (or step on the foot switch), and the feeding, filling, unloading and other actions are all automatically completed.
C:Parameter:
| Model: | DCS-25W |
| Covveyor: | lifting conveyor |
| Display: | intelligent controller |
| Range(kg) | 5~25 |
| Division(g) | 5 |
| Accurancy | X(0.5) |
| Capacity(bags/hour) | 170~240 |
| Consumption | 3.7kw,0.4-0.5Mpa Air16.7L/min |
| Environment | Humidity≤90%,4N-AC380V±10% 50HZ |
|
Dimension(mm) L×W×H |
2654×1215×2641 |
Remarks: The height of the external dimensions includes the hopper
D:Components
| Name | Brand | Note |
| Weighing controller | GM | Weighing control instrument product development and design is a Japanese company, and all components are imported from Japan. |
| PLC | DELTA | |
| Load cell | METLLER TOLEDO(USA) | |
| Solenoid valve | MINDMAN | |
| SENSOR | SICK(Germany) | |
| Proximity switch | OMRON(Japan) | |
| Cylinder | AIRTAC | |
| Air part | AIRTAC |
E:Certification
